Page 1: User Guide
User guide CookSurface CG363ML & CG363MLD models Guide de l’utilisateur CookSurface Modèles de série CG363ML et CG363MLD US CA... - Page 2 WARNING! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. NEVER use this appliance as a space heater to heat or warm the room.
-
Page 3: Table Of Contents
Contents Introduction Safety and warnings Using your CookSurface Cooking guidelines Care and cleaning Sound preference settings Troubleshooting Alert codes Warranty and service Important! SAVE THESE INSTRUCTIONS The models shown in this user guide may not be available in all markets and are subject to change at any time. -
Page 5: Introduction

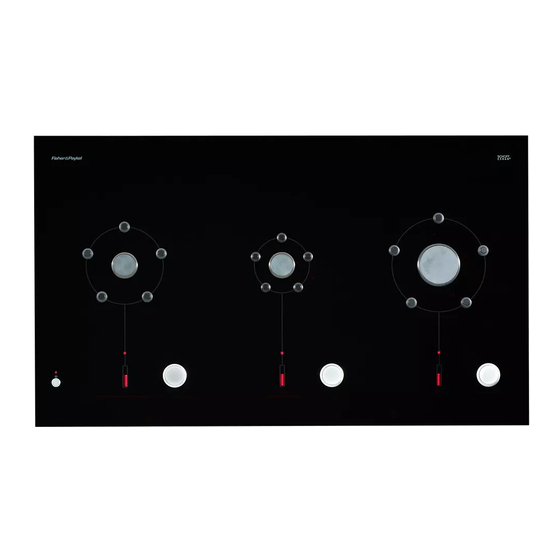

Read this guide, taking special note of the ‘Safety and warnings’ section. A heat-resistant removable sticker on the glass has been provided as a quick reference guide. When you no longer need it, it can be easily peeled off. Fig.1 CG363ML only illustrated On/Off power button Control display... -
Page 6: Safety And Warnings
Safety and warnings Your safety is important to us. Please read this information before using your CookSurface. WARNING! Explosion Hazard Do not use water on grease fires. A violent steam explosion may result. Smother fire or flame or use dry chemical or foam type extinguisher. Do not use the appliance to heat unopened food containers, such as cans. - Page 7 Safety and warnings WARNING! Electrical Shock Hazard Before doing any user maintenance, locate the wall power outlet and disconnect the appliance from the power supply and turn off the gas supply at the shut-off valve. This appliance is equipped with a three-prong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded power outlet.
-
Page 8: Important Safety Instructions
Safety and warnings Important safety instructions! Have your appliance installed and properly grounded by a qualified installer in accordance with the installation instructions. Ensure that a manual gas shut-off valve is installed in a location accessible after installation. Be sure to have the installer show you how to turn off the gas and electrical supply. Use this appliance only for its intended purpose as described in this user guide. - Page 9 Safety and warnings Important safety instructions! Do not obstruct the flow of combustion and ventilation air to the appliance. The Governor of California is required to publish a list of substances known to the State of California to cause cancer or reproductive harm and requires businesses to warn customers of potential exposures to such substances.
-
Page 10: Using Your Cooksurface
Using your CookSurface Operating the CookSurface Press the on/off Press the control dial. The dial and the pan supports power button. A tone will sound. will rise. The burner-ready light will then glow for four seconds. While the burner-ready light is glowing, Place your pan on the pan supports. - Page 11 Using your CookSurface Operating the CookSurface Turn the dial to accurately adjust the flame. To stop cooking, press the dial. The gas will be shut off, and the pan supports will stay Note: the flame will not go out if you keep raised.
- Page 12 Using your CookSurface ...3 seconds To lower the pan supports automatically after you have finished cooking, press and hold the dial for three seconds while the burner is lit. The flame will go out and the pan supports, if cool enough, will lower.
-
Page 13: Cooking Guidelines
Cooking guidelines Important! Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can scratch the glass. Do not drag pans backwards and forwards across the pan support pins, burner heads and trim rings eg when placing and removing pans or sauteing food, as this can damage them, especially the coating on the pan support pins. - Page 14 Cooking guidelines Searing steak To cook juicy flavorsome steaks: Stand the meat at room temperature for about 20 minutes before cooking. Heat up a heavy-based frying pan. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
- Page 15 Cooking guidelines Using a wok Important! Use your wok only on the wok burner. When using a wok, always use the wok stand. Make sure the wok stand is fitted correctly over the raised pan supports. (see Fig.2) Do not use a wok larger than 16” (40 cm) diameter. Check that your wok is adequately supported by the wok stand.
-
Page 16: Care And Cleaning
Care and cleaning Your CookSurface has been designed to combine the easy-care cleaning of ceramic glass with the performance of gas. Important! Read through the ‘Safety and warnings’ and ‘Care and cleaning’ sections carefully before doing any cleaning or maintenance. To avoid the risk of electrical shock or burners being accidentally turned on during cleaning, make sure you turn the CookSurface off before cleaning by pressing the on/off power button. - Page 17 Care and cleaning Melts and spills that require immediate attention Anything that melts onto the ceramic glass surface or food spills with a high sugar content may cause pitting of the ceramic glass surface if left there to cool. Using extreme caution, remove these spills immediately with a fish slice, palette knife or cooktop scraper.
- Page 18 Care and cleaning Cleaning the pan supports (the pan support pins and burner head) Important! Do not wash pan supports in a dishwasher or use dishwashing machine detergent to clean these parts as this may damage the easy-clean coating. After reassembling any burner, always lower the burner before using the CookSurface to check it has been reassembled correctly.
- Page 19 Care and cleaning To clean the burner head Lift out the burner head and clean with a cloth or scourer. The burner head gets much hotter than the pan support pins and for this reason it is not finished with an easy-clean coating. If cooking splatter and spills get burnt onto the burner head, scrub with a mildly abrasive cleaner and a soft cloth.
-
Page 20: Sound Preference Settings
Sound preference settings The CookSurface has three pre-set sound preference settings (tones, tone volume, feedback tones). Changing the settings To change the settings, follow these steps..2 seconds ...3 seconds Hold down the on/off power button Firmly press both the on/off power button and the nearest burner control dial for three for two seconds. - Page 21 Sound preference settings Touch the dial to change the selected setting. The burner-ready light will go on or off, depending on which option you have chosen. To revert to the previous option, touch the dial again. Sound Settings Default option Alternative option TONES (You can turn the...
-
Page 22: Troubleshooting
Troubleshooting Troubleshooting chart Problem Possible causes What to do The pan supports will not Power is not turned on. Turn on the CookSurface. rise. The pan supports, on/off Food has been spilled on these See ‘Care and cleaning’ . power button, or control parts. -
Page 23: Troubleshooting Chart
Troubleshooting Troubleshooting chart Problem Possible causes What to do There is an unpleasant The CookSurface is not Follow the instructions on (gas) smell. functioning correctly or gas could the inside front cover of this be leaking. manual. There is an electricity The CookSurface cannot be failure. -
Page 24: Alert Codes
Alert codes Your CookSurface can self-diagnose and then communicate this information to you. If there is a problem, the CookSurface will: shut one or all burners off beep every three seconds flash one or more lights display an alert code on the control display(s). If only one burner has a problem, then its control display will show the alert code. - Page 25 Alert codes Individual burner codes Alert code Possible causes What to do The pan is too heavy for the pan Remove the pan, let the pan supports supports to lift. rise up, and then place the pan back on the pan supports. The pan support pins are stuck in Try to remove the food with a damp, the down position because of spilled...
- Page 26 Alert codes Entire CookSurface codes Alert code Possible causes What to do There is not enough air getting to Check that the burners. the underside of the CookSurface has direct unrestricted ventilation to the room where the CookSurface is installed nothing is obstructing the air filter mesh on the underside of the CookSurface the airway to the CookSurface is not...
-
Page 27: Warranty And Service
Warranty and service Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: your product is correctly installed you are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &... - Page 28 MISE EN GARDE! Le fait de ne pas suivre toutes les instructions de ce manuel peut provoquer un feu ou une explosion causant des dommages matériels, des blessures ou la mort. Ne rangez et n'utilisez pas de l’essence ou d’autres liquides et vapeurs inflammables à proximité...
-
Page 29: Entretien Et Nettoyage
Table des matières Introduction Consignes de sécurité et mises en garde Utilisation de votre surface de cuisson Recommandations pour la cuisson Entretien et nettoyage Réglages de préférence sonore Dépannage Codes d'erreur Garantie et réparation Important! CONSERVEZ CES INSTRUCTIONS Les modèles illustrés dans ce document peuvent ne pas être offerts par tous les détaillants et sont sujets à...
