Ad Notam REFLEXION Owner's Manual page 19

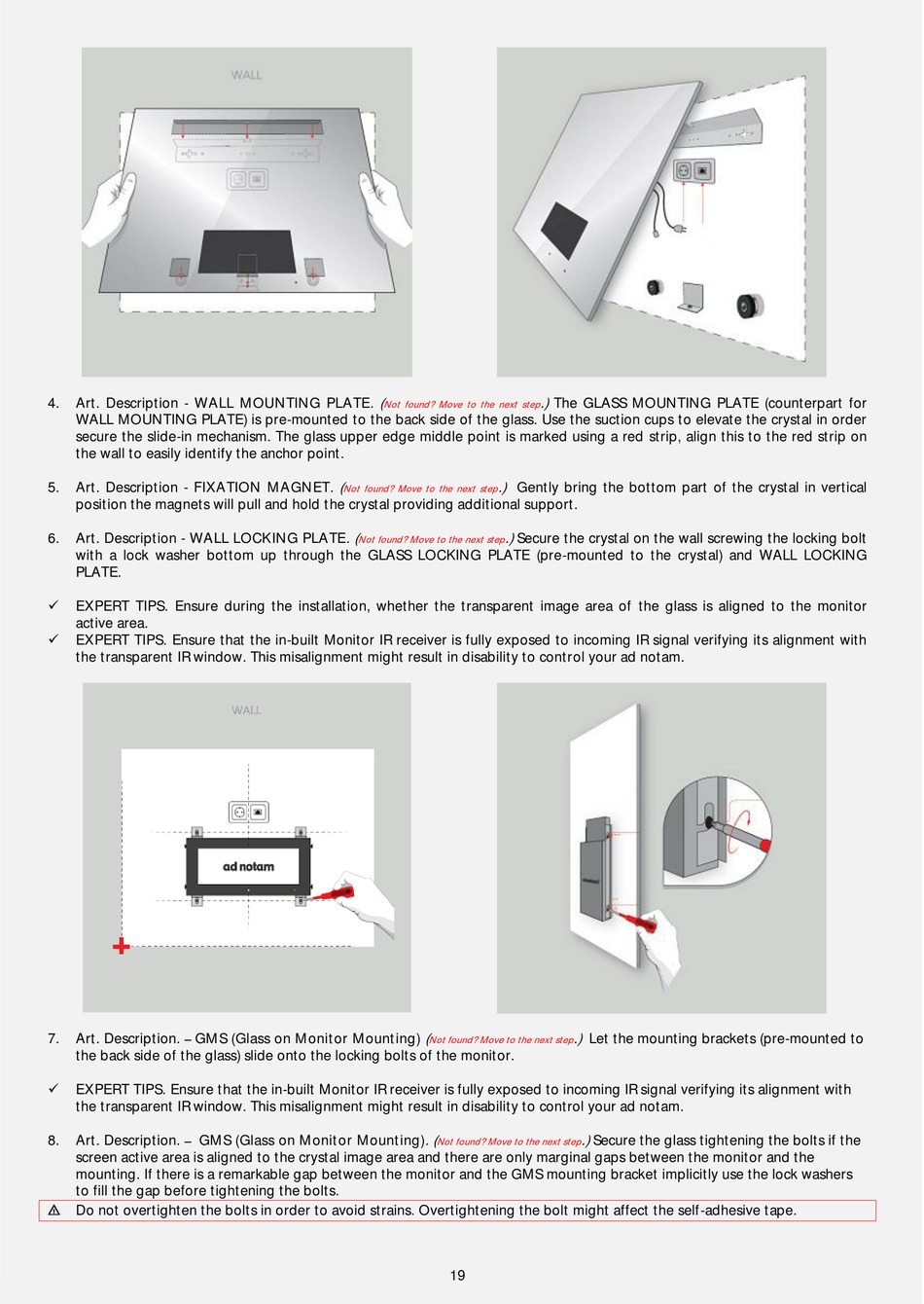

4. Art. Description - WALL MOUNTING PLATE
WALL MOUNTING PLATE) is pre-mounted to the back side of the glass. Use the suction cups to elevate the crystal in order
secure the slide-in mechanism. The glass upper edge middle point is marked using a red strip, align this to the red strip on
the wall to easily identify the anchor point.
5. Art. Description - FIXATION MAGNET
position the magnets will pull and hold the crystal providing additional support.
6. Art. Description - WALL LOCKING PLATE
with a lock washer bottom up through the GLASS LOCKING PLATE (pre-mounted to the crystal) and WALL LOCKING
PLATE.

EXPERT TIPS. Ensure during the installation, whether the transparent image area of the glass is aligned to the monitor
active area.

EXPERT TIPS. Ensure that the in-built Monitor IR receiver is fully exposed to incoming IR signal verifying its alignment with
the transparent IR window. This misalignment might result in disability to control your ad notam.
7. Art. Description. GMS (Glass on Monitor Mounting)
the back side of the glass) slide onto the locking bolts of the monitor.

EXPERT TIPS. Ensure that the in-built Monitor IR receiver is fully exposed to incoming IR signal verifying its alignment with
the transparent IR window. This misalignment might result in disability to control your ad notam.
8. Art. Description. GMS (Glass on Monitor Mounting)
screen active area is aligned to the crystal image area and there are only marginal gaps between the monitor and the
mounting. If there is a remarkable gap between the monitor and the GMS mounting bracket implicitly use the lock washers
to fill the gap before tightening the bolts.
Do not overtighten the bolts in order to avoid strains. Overtightening the bolt might affect the self-adhesive tape.
. (
Not found? Move to the next step
. ( .)
Not found? Move to the next step
. (
Not found? Move to the next step
(
Not found? Move to the next step
. (
Not found? Move to the next step
19
.)
The GLASS MOUNTING PLATE (counterpart for
Gently bring the bottom part of the crystal in vertical
.) Secure the crystal on the wall screwing the locking bolt
.)
Let the mounting brackets (pre-mounted to
.)
Secure the glass tightening the bolts if the
