Ad Notam REFLEXION Owner's Manual page 12

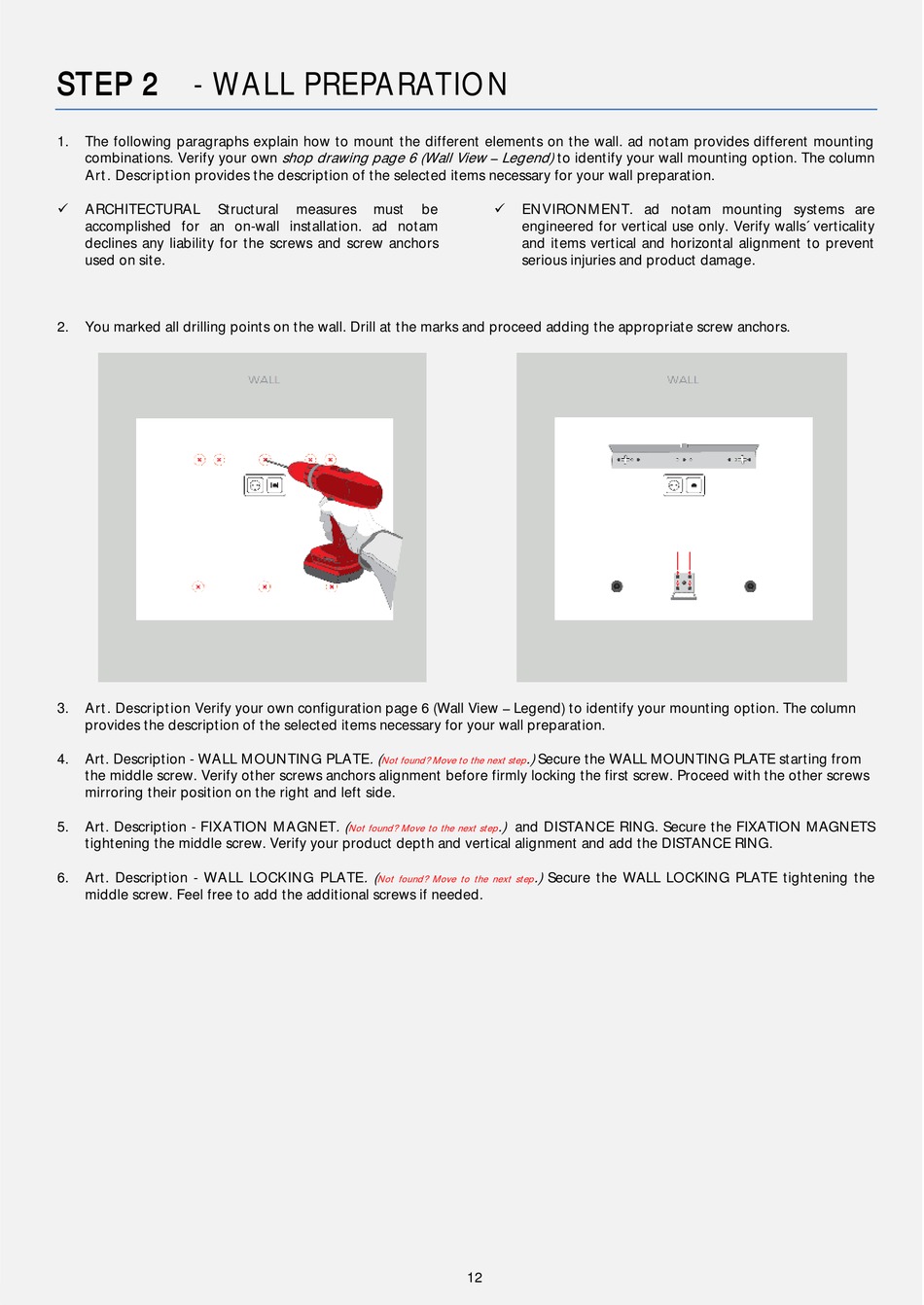

STEP 2 - WALL PREPARATION
1. The following paragraphs explain how to mount the different elements on the wall. ad notam provides different mounting
combinations. Verify your own
Art. Description provides the description of the selected items necessary for your wall preparation.

ARCHITECTURAL Structural
accomplished for an on-wall installation. ad notam
declines any liability for the screws and screw anchors
used on site.
2. You marked all drilling points on the wall. Drill at the marks and proceed adding the appropriate screw anchors.
3. Art. Description Verify your own configuration page 6 (Wall View
provides the description of the selected items necessary for your wall preparation.
4. Art. Description - WALL MOUNTING PLATE
the middle screw. Verify other screws anchors alignment before firmly locking the first screw. Proceed with the other screws
mirroring their position on the right and left side.
5. Art. Description - FIXATION MAGNET
tightening the middle screw. Verify your product depth and vertical alignment and add the DISTANCE RING.
6. Art. Description - WALL LOCKING PLATE
middle screw. Feel free to add the additional screws if needed.
shop drawing page 6 (Wall View
measures must be
. (
Not found? Move to the next step
. (
Not found? Move to the next step
. (
Not found? Move to the next step
Legend) to identify your wall mounting option. The column

ENVIRONMENT. ad notam mounting systems are
engineered for vertical use only. Verify walls´ verticality
and items vertical and horizontal alignment to prevent
serious injuries and product damage.
Legend) to identify your mounting option. The column
.)
Secure the WALL MOUNTING PLATE starting from
.)
and DISTANCE RING. Secure the FIXATION MAGNETS
.)
Secure the WALL LOCKING PLATE tightening the
12
–
