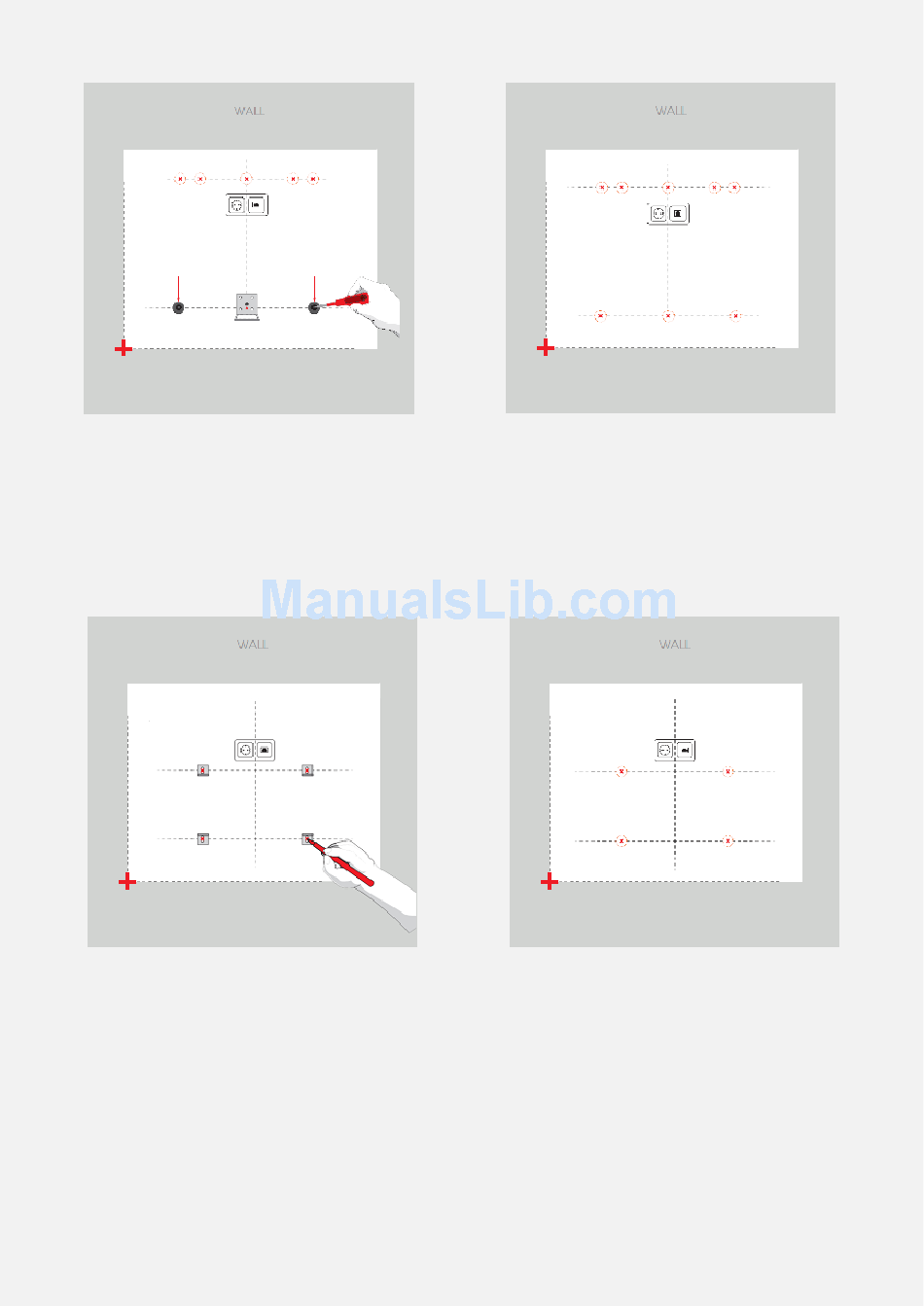

7. Art. Description - FIXATION MAGNET
correspond to the FIXATION MAGNET middle screw drilling point. Start from the reference point moving upward on the
vertical axe and mark the point (y-position). Plot an horizontal line verifying horizontal alignment using the level. Measure
and mark the drilling point on this line according (x-position). Caution: you should have 2 or more FIXATION MAGNETS.
Repeat the procedure for each one of them.
8. Art. Description - WALL LOCKING PLATE
correspond to the WALL LOCKING PLATE middle screw drilling point. Start from the reference point moving upward on
the vertical axe and mark the point (y-position). Plot an horizontal line verifying horizontal alignment using the level.
Measure and mark the drilling point on this line according (x-position).
9. Art. Description - HOLDING ANGLE
correspond to the HOLDING ANGLE bottom left corner. Start from the reference point moving upward on the vertical axe
and mark the point (y-position). Plot an horizontal line verifying horizontal alignment using the level. Measure and position
the HOLDING ANGLE accurately, mark the drilling point. Caution: you must have 4 HOLDING ANGLES. Repeat the
procedure for each one of them.
. ( .) .)
Not found? Move to the next step
. (
Not found? Move to the next step
. (
Not found? Move to the next step
11
–
Verify x-position and y-position. These coordinates
.) Verify y-position and x-position. These coordinates
.)
Verify x-position and y-position. These coordinates
