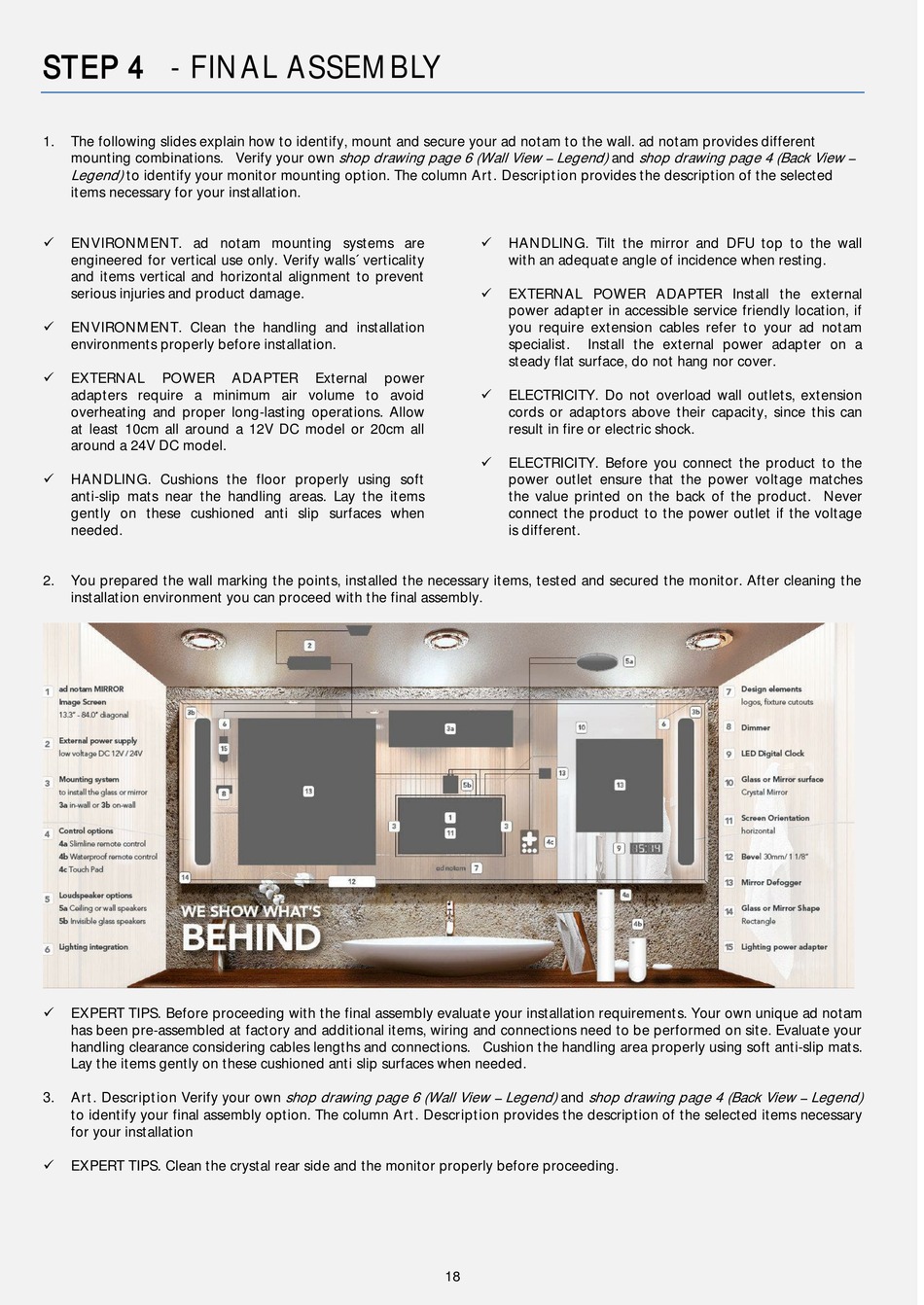

Ad Notam REFLEXION Owner's Manual page 18

STEP 4 - FINAL ASSEMBLY
1. The following slides explain how to identify, mount and secure your ad notam to the wall. ad notam provides different
mounting combinations. Verify your own
Legend) to identify your monitor mounting option. The column Art. Description provides the description of the selected
items necessary for your installation.

ENVIRONMENT. ad notam mounting systems are
engineered for vertical use only. Verify walls´ verticality
and items vertical and horizontal alignment to prevent
serious injuries and product damage.

ENVIRONMENT. Clean the handling and installation
environments properly before installation.

EXTERNAL POWER
adapters require a minimum air volume to avoid
overheating and proper long-lasting operations. Allow
at least 10cm all around a 12V DC model or 20cm all
around a 24V DC model.

HANDLING. Cushions the floor properly using soft
anti-slip mats near the handling areas. Lay the items
gently on these cushioned anti slip surfaces when
needed.
2. You prepared the wall marking the points, installed the necessary items, tested and secured the monitor. After cleaning the
installation environment you can proceed with the final assembly.

EXPERT TIPS. Before proceeding with the final assembly evaluate your installation requirements. Your own unique ad notam
has been pre-assembled at factory and additional items, wiring and connections need to be performed on site. Evaluate your
handling clearance considering cables lengths and connections. Cushion the handling area properly using soft anti-slip mats.
Lay the items gently on these cushioned anti slip surfaces when needed.
3. Art. Description Verify your own
to identify your final assembly option. The column Art. Description provides the description of the selected items necessary
for your installation

EXPERT TIPS. Clean the crystal rear side and the monitor properly before proceeding.
shop drawing page 6 (Wall View Legend)
ADAPTER External power
shop drawing page 6 (Wall View
and

HANDLING. Tilt the mirror and DFU top to the wall
with an adequate angle of incidence when resting.

EXTERNAL POWER ADAPTER Install the external
power adapter in accessible service friendly location, if
you require extension cables refer to your ad notam
specialist. Install the external power adapter on a
steady flat surface, do not hang nor cover.

ELECTRICITY. Do not overload wall outlets, extension
cords or adaptors above their capacity, since this can
result in fire or electric shock.

ELECTRICITY. Before you connect the product to the
power outlet ensure that the power voltage matches
the value printed on the back of the product. Never
connect the product to the power outlet if the voltage
is different.
Legend) shop drawing page 4 (Back View Legend)
and
18
shop drawing page 4 (Back View
