Installing and connecting adapter lead and power cable

0
0
0
0
Retrofit/installation kit No.: 82 83 0 136 491
Installation instruction No.: 01 29 0 139 395

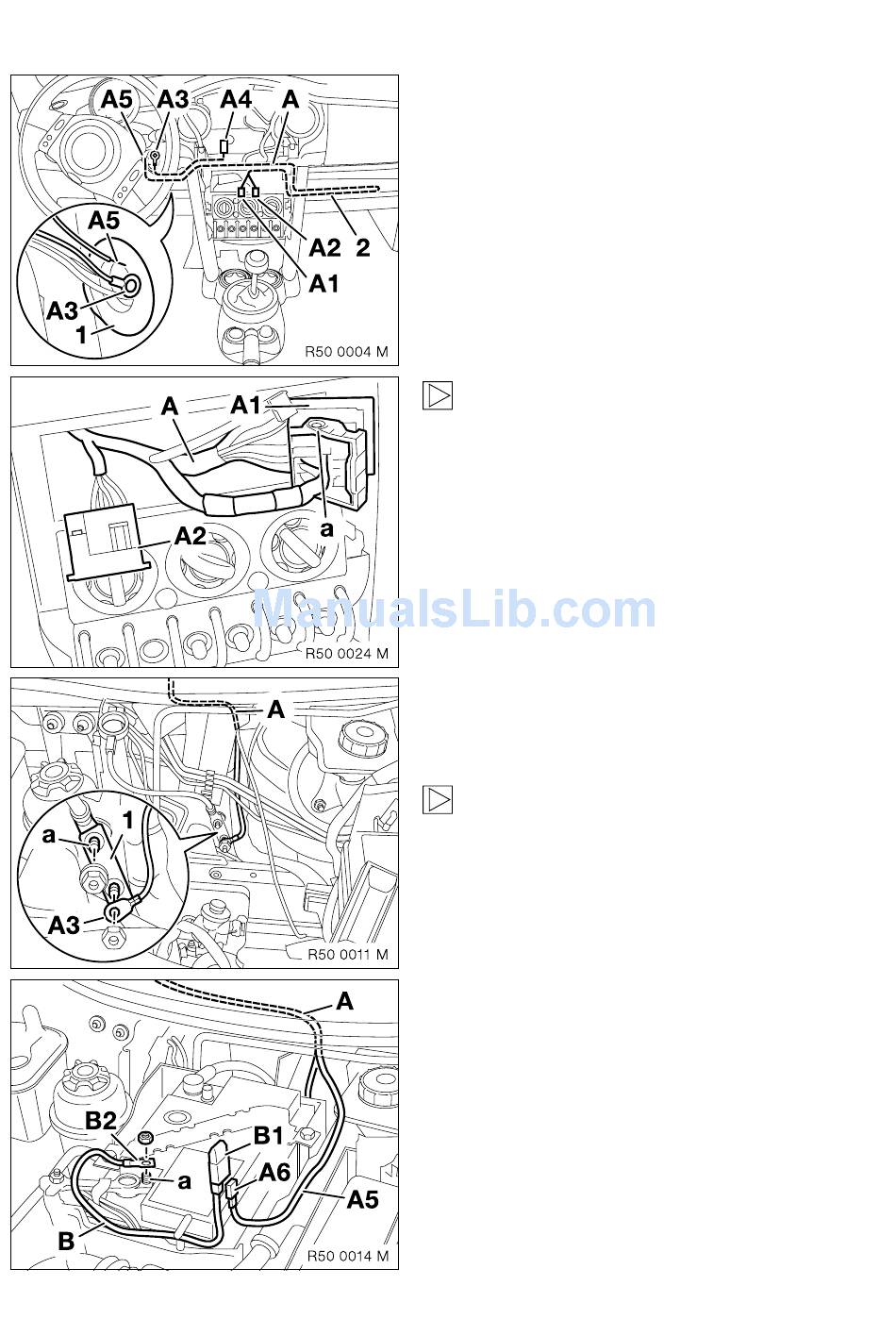

As illustrated, install adapter lead A as follows:
0
Route branch A 1 and A 2 to installation location
of radio.
Route branch A 4 to place of installation of
instrument cluster.
Route branch A 3 and A 5 through rubber
grommet (1) into engine compartment and use
sealing compound to seal off rubber grommet (1)
from engine side.
Fit excess length of wiring harness (2) under
instrument panel in passenger footwell and secure
in a suitable position with a cable strap.
0
CD changer. 3
Connect black 17-pin radio plug connector
X 2 5 1 9 (a) to branch A 1 , black 17-pin pin housing
of adapter lead A .
Connect branch A 2 , black 17-pin socket housing,
of adapter lead A to the radio.
Route branch A 3 , brown wire, of adapter lead A to
0
ground terminal point (a) in the engine compart-
ment and connect by means of adapter
element (1).
Route branch A 5 , red wire, of adapter lead A to
0
connection location and cut to length. Crimp flat-
pin terminal A 6 onto branch A 5 and connect to
fuse holder B1 of power cable B .
Use cable strap to fix fuse holder B1 in a suitable
position in the battery box.
Connect branch B2 , red wire, of power cable B to
positive terminal of battery (a).
Status: 06.2001
Plug connector X 9 3 4 5 is to be connected to
branch A 1 on vehicles equipped with a
Reinstall battery box and battery. 3
