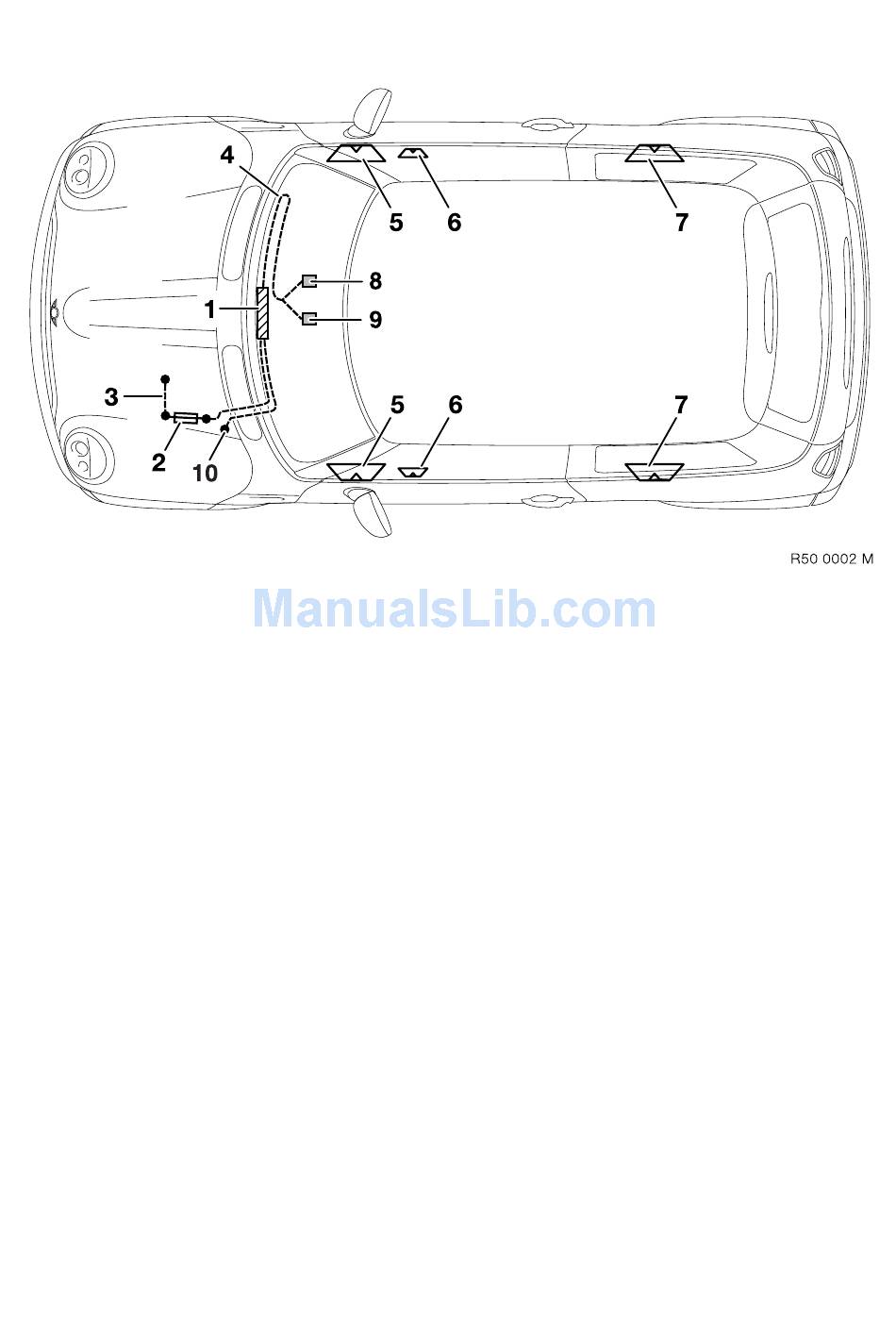

Schematic installation and routing diagram
0
Key
0
1
Amplifier
2
Fuse (20 A)
3
Power cable with fuse holder at B+ (see B2 on Page 6)
4
Adapter lead
5
Woofer/mid-range speaker
6
Tweeter
7
Coax speaker
8
Car radio connector
9
Connector for standard wiring harness
10 Vehicle ground connection (see A3 on Page 6)
Retrofit/installation kit No.: 82 83 0 136 491
Installation instruction No.: 01 29 0 139 395
Status: 06.2001
EN/5
