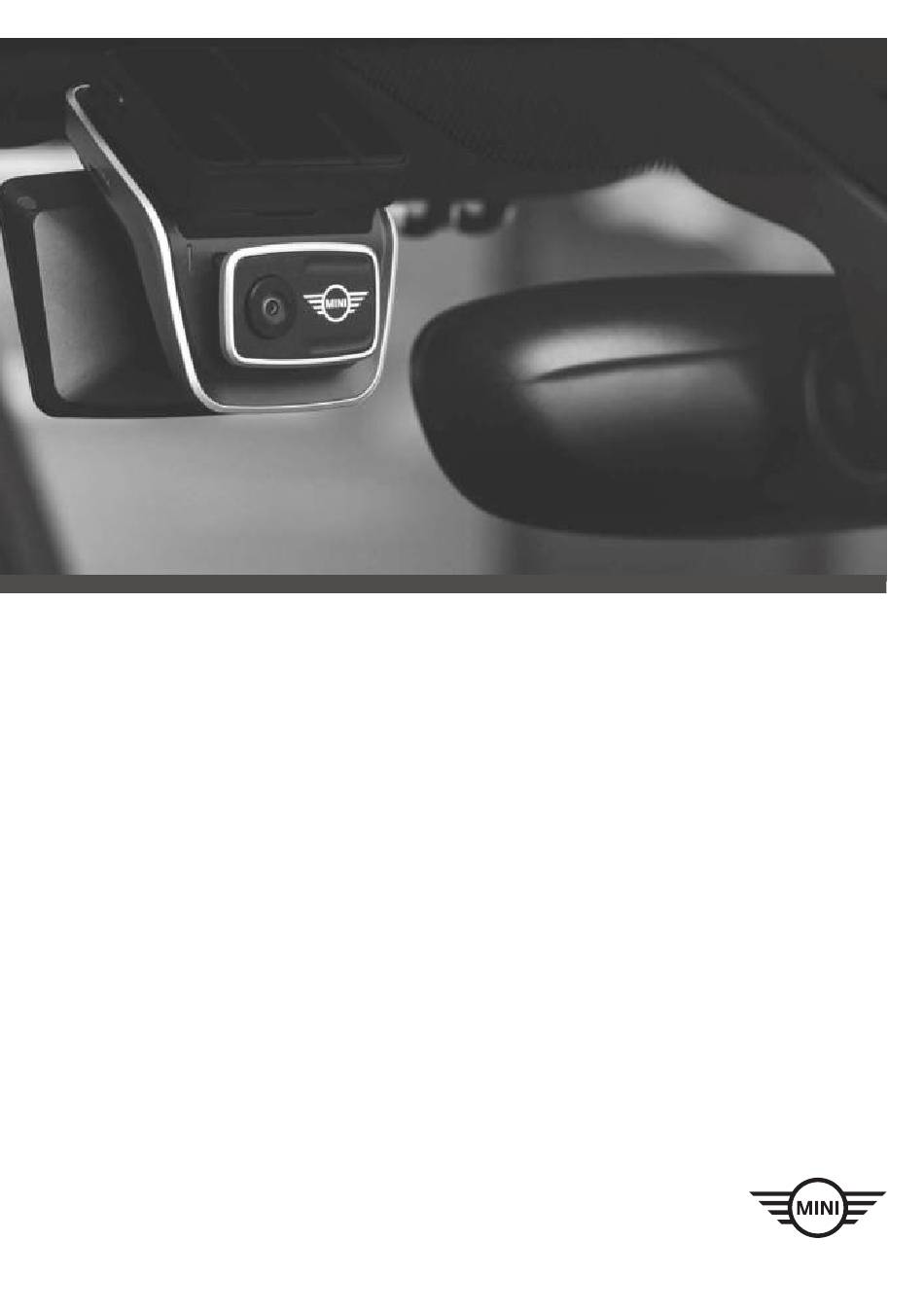

- Page 1 MINI Advanced Car Eye 3.0 Pro INSTRUCTIONS FOR USE. ORIGINAL MINI ACCESSORIES.
- Page 3 MINI Advanced Car Eye 3.0 Pro Instructions for use...
-
Page 5: Table Of Contents
MINI Advanced Car Eye 3.0 Pro Instructions for use Contents Information Product overview Using the product Product features Using voice recognition Voice recognition commands Using the touch screen Using the ACE 3.0 app Settings Viewing recordings Specifications Disposal of electrical devices Certifications ©... -
Page 6: Information
Information If you have any questions about using Advanced Car Eye 3.0 Pro (ACE 3.0 Pro) contact the following email for the relevant region: Symbols used China: support@ace-30.cn Denotes instructions that draw your Korea: support@ace-30.kr attention to dangers. Denotes instructions that draw your Japan: support@ace-30.jp... - Page 7 Safety information The product may only be installed by a MINI dealership. Do not operate the ACE 3.0 app while you are driving or the engine is running. When delivering the product to a third party, hand over the user guide and the Declaration of Conformity along with the product.
-
Page 8: Product Overview

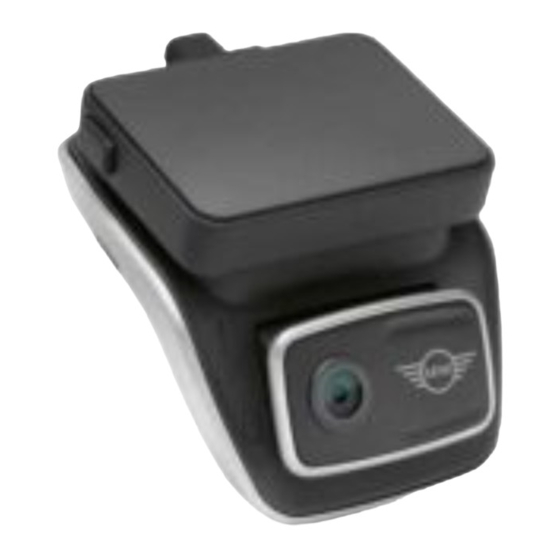

Product overview Front camera The product may only be installed by a MINI Included items dealership. Front camera ■ Rear camera ■ Wiring harness ■ 64 GB microSD™ card ■ User guide ■ Declaration of Conformity ■ Cable ties ■... - Page 9 12 Microphone Rear camera 1 Security LED 5 Power button ( ) 2 Rear camera lens – Press to turn on the product. 3 Rear camera mount – Press and hold to turn off the product. 6 Status LED Displays the operating status of the product. Refer to "Checking the status LED"...
- Page 10 Checking the status LED Status Specification Status LED AUDIO LED BT/WIFI LED REC LED Audio recording on Orange Audio recording off Waiting for Bluetooth connection Flashing blue Bluetooth initial pairing mode Fast flashing blue Bluetooth connected Blue Bluetooth off Waiting for Wi-Fi connection Flashing green Wi-Fi connected Green...
-
Page 11: Using The Product
Using the product Be sure to remove the front camera while the product is turned off. The stored media may be lost or the product may microSD™ card become damaged. Ensure that the product is turned off before Switching the camera on and off inserting the memory card. -
Page 12: Product Features
Product features Activating ETC product (only available in China) The MINI Advanced Car Eye 3.0 Pro monitors Product registration and activation works the vehicle both as you drive and when it is only in the ETC app and is only applicable parked. - Page 13 When motion or an impact is detected in Parking Press the record button ( ) on the front mode, a video is recorded for 10 seconds before camera to start recording. Recordings will be and after the impact. It is saved in the "PARKING" saved in the "SNAPSHOT"...
-
Page 14: Using Voice Recognition
Using voice recognition Vehicle location The user can find the parked vehicle easily Voice recognition is a hands-free solution by using the ACE 3.0 app. When the product which can be used to control the camera in switches to Parking mode while connected to the different situations. -
Page 15: Voice Recognition Commands
Voice recognition commands The voice recognition commands for each language are as follows. Use "Hi Camera" to activate voice recognition and continue with desired command. Make sure to use commands exactly as they are shown in the manual. On the ACE 3.0 Pro LCD touchscreen, select Settings > System Settings > Voice recognition to set the desired language from the five available languages for recognition. -
Page 16: Using The Touch Screen
Using the touch screen Viewing the recording list You can play and watch recorded videos on On the ACE 3.0 Pro display, you can view the your product. On the LCD touchscreen, select currently recorded video and operate the product Recording List. -
Page 17: Using The Ace 3.0 App
Using the ACE 3.0 app Settings The MINI Advanced Car Eye 3.0 can be Settings can be found in the main bar of the controlled directly from the Advanced Car Eye ACE 3.0 app and on the ACE 3.0 Pro display by app, and recorded events can be viewed and selecting Settings. - Page 18 – Erase all recordings and settings Volume settings Wi-Fi frequency Beep sound: Adjust volume for beep The Advanced Car Eye 3.0 Pro device ■ uses a 5 GHz band to connect to the sounds. smartphone, which provides faster Voice guidance: Adjust volume for voice ■...
-
Page 19: Viewing Recordings
Viewing recordings About Functions: Check the main features of the ■ Checking videos and pictures product. Device Info: You can check the model ■ All recordings are saved in certain folders on the name, firmware version, Micom version, memory card. memory card capacity, and reset system settings. -
Page 20: Specifications
Specifications Items Description Quad-core Cortex-A53, up to 1.008 MHz Memory DDR3 512 MByte (32bit) / NAND 512 MB Size 3.5 inch Screen ratio 16:09 Panel Wide view angle, IPS Operating range 75.60 (W) x 45.36 (H) Resolution 800 x 480 (WVGA) Backlight LCD touch screen Surface... - Page 21 Items Description Interface AV-IN terminal: rear camera ■ USB: mass storage only ■ Operating voltage 12 V Operating/storage temperature -30°C to +80°C Bluetooth Standard Bluetooth V5.0, BLE Frequency range 2.402 MHz ~ 2.480 MHz Number of channels Wi-Fi Frequency 2.4 GHz RF specification 5 GHz RF specification Standard IEEE 802.11b/g/n...
-
Page 22: Disposal Of Electrical Devices
Disposal of electrical devices In accordance with European Directive 2012/19/EC on the disposal of electrical and electronic devices and the applicable national laws, old electrical devices must be collected separately and recycled in an environmentally friendly manner. If the symbol with an X on a waste bin is marked on the product or accompanying documentation, it must be discarded separately from general waste at the end of its lifespan. -
Page 23: Certifications
Certifications Algeria FRONT: Homologué par l'ARPCE: 419/IR/HMG/PC/ARPCE/2022 REAR: Agréé par l’ANF 351/H/ANF/2022 Argentina Front: C-27729 Rear: H-27730 Australia/New Zealand Brazil Agência Nacional de Telecomunicações ANATEL: 10182-22-09274 Para maiores informações, consulte o site da ANATEL – www.anatel.gov.br Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. - Page 24 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance could void the user’s authority to operate the equipment.
- Page 25 Korea Malaysia HIDF15000195 Mexico La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada Nigeria Oman OMAN-TRA...
- Page 26 Philippines Front: ESD-RCE-2229149 Rear: ESD-RCE-2229148 Russia Singapore Complies with IMDA Standards DA107248 Serbia Front&Rear Socket 005 21 South Africa Front: TA-2021/ 3169 Rear: TA-2021/3166 Socket: TA-2021/ 3399 Taiwan Front Rear CCAO22LP0370T9 CCAO22LP0380T2...
- Page 27 Taiwan R34096 Lead Hexavalent Polybrominated Polybrominated Mercury Cadmium diphenyl chromium biphenyls (Pb) (Hg) (Cd) ethers (Cr+6) (PBB) (PBDE) Thailand...
- Page 28 Front: DA08182/22 ER5518/22 Rear: DA08182/22 ER5519/22 Advanced Car Eye 3.0 PRO Car Advanced Car Eye 3.0 PRO Car Dash Cam Front Camera Dash Cam Rear Camera Ukraine United Kingdom Vietnam...
- Page 29 01 29 5 A6E 156 08/2022 (Z/Z)
