3. <<Warnning!>>
Activate Changes to make modification effective.

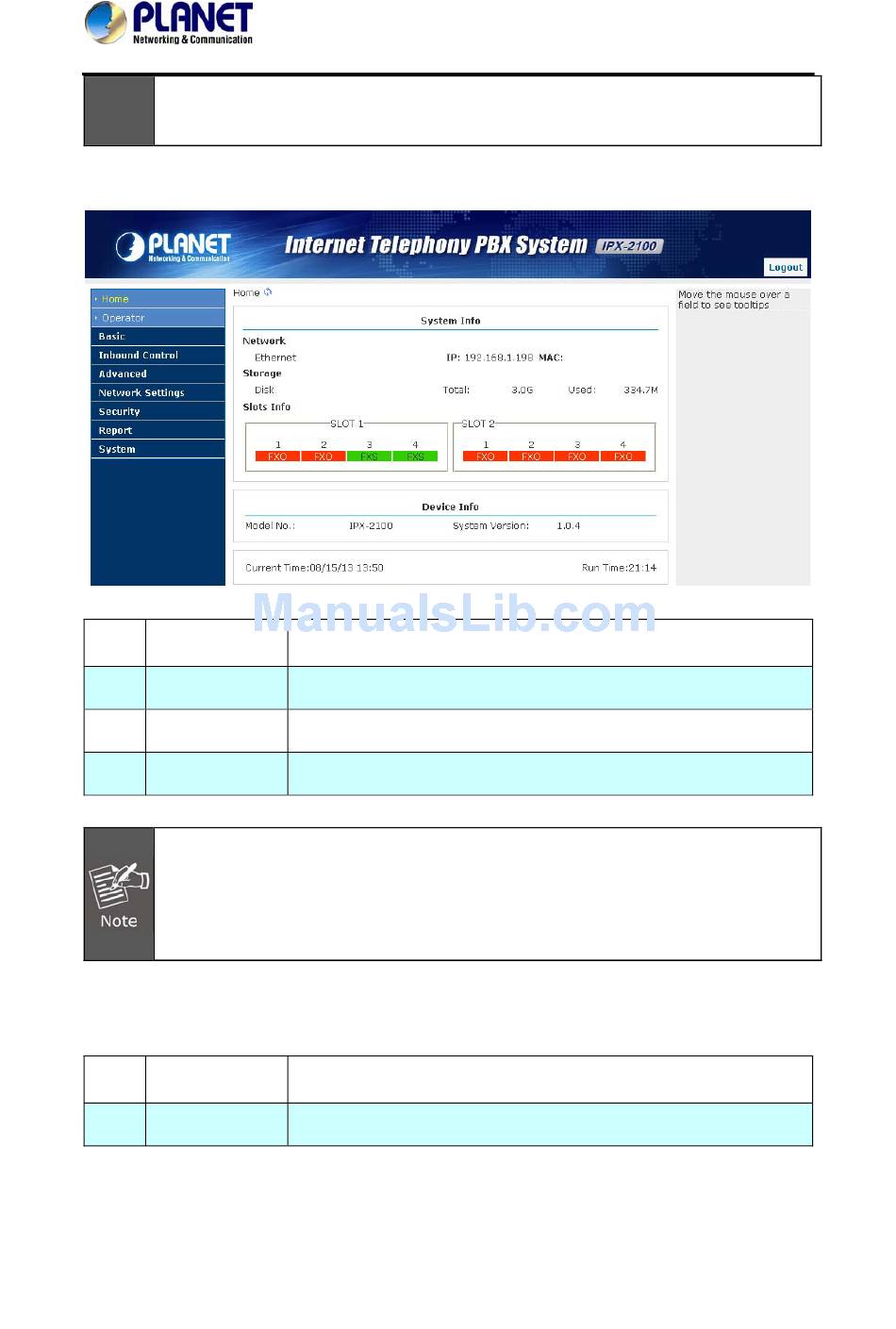

If user name and password are right, this following page will be displayed:
1 Network
2 Storage
3 Slots Info
4 Device Info
1. If FXO is connected, the slot color and the front panel LED will be red and steady
red, respectively.
2. If FXS is connected, the slot color and the front panel LED will be green and
steady green, respectively.
Commonly Used Button
On the home page, besides the system info, there are other function buttons as shown below:
1 Logout
2 Activate Change Activate the changes for your current configuration
System Menu
System Menu includes the following sub menu:
Every Time after saving the change, please press the
ETH IP and MAC will be displayed
Total storage and used storage will be displayed
Channel information will be based on the product model
Product Model and System Version will be displayed
Logout the Web panel
