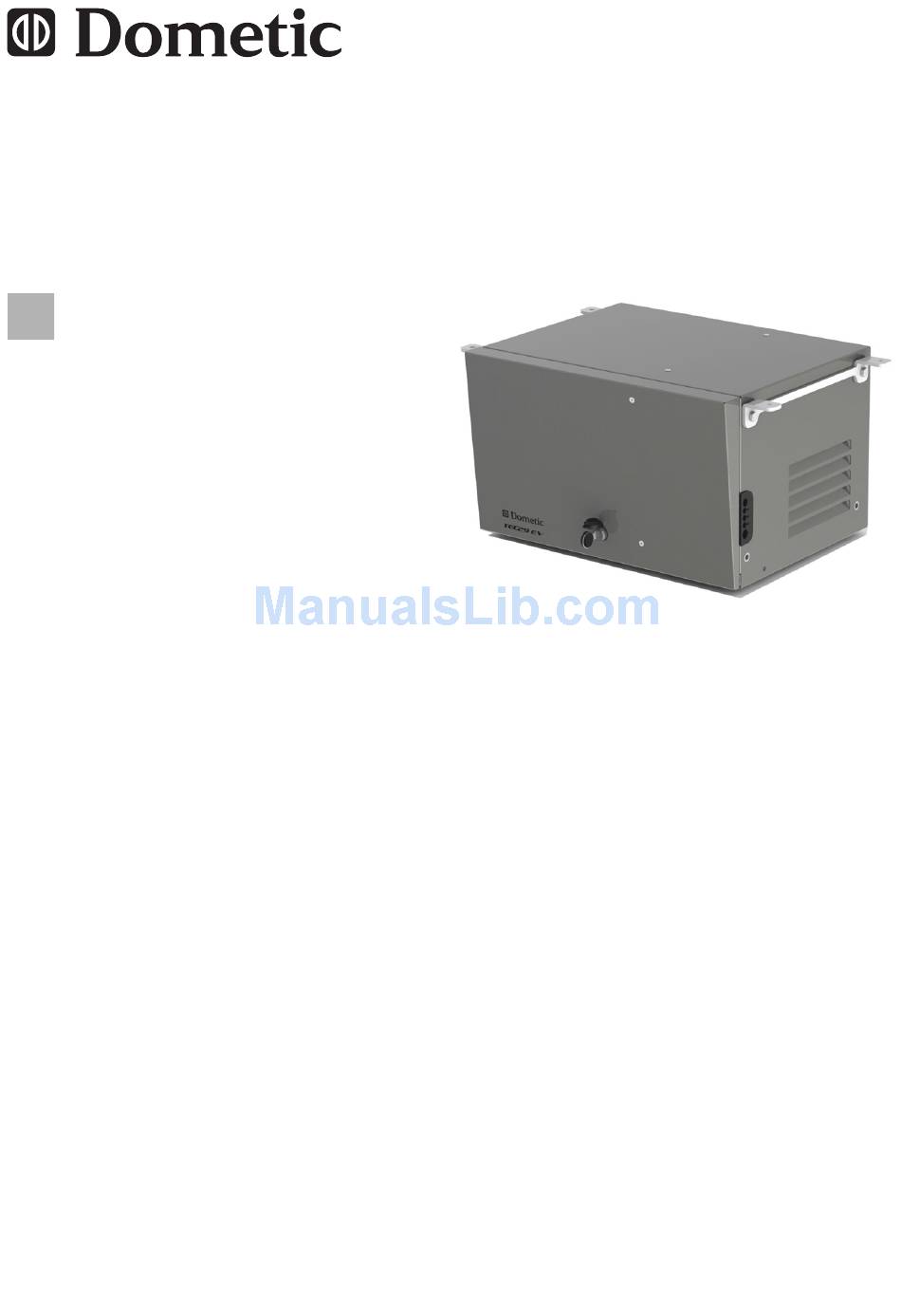

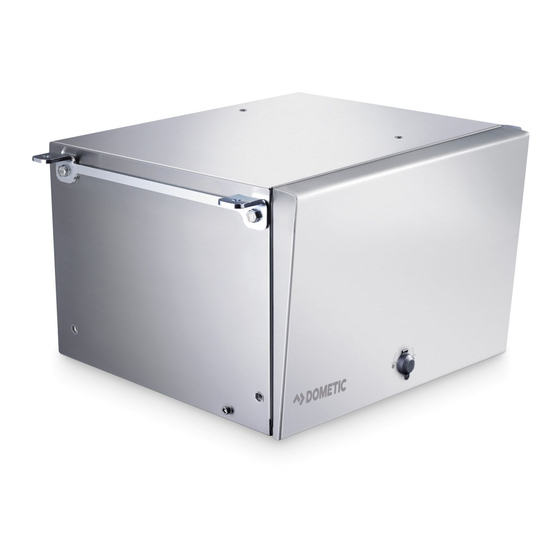

  • Page 1 Generator Installation and Operating Manual Dometic TEC29 EV AUS...
  • Page 3 TEC29 EV AUS...
  • Page 4 TEC29 EV AUS...
  • Page 5 TEC29 EV AUS 10.5...
  • Page 6 TEC29 EV AUS...
  • Page 7 TEC29 EV AUS max. 2 m...
  • Page 8 TEC29 EV AUS 10.5...
  • Page 9 TEC29 EV AUS...
  • Page 10 TEC29 EV AUS...
  • Page 11 TEC29 EV AUS Remote switch (not included) Vehicle ignition key white black Switch 1 (not included)
  • Page 12 TEC29 EV AUS...
  • Page 13 TEC29 EV AUS...
  • Page 14 TEC29 EV AUS...

  • Page 15: Table Of Contents

    TEC29 EV AUS Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. Table of contents Explanation of symbols .

  • Page 16: Explanation Of Symbols

    Explanation of symbols TEC29 EV AUS Explanation of symbols WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product.

  • Page 17: General Safety

    TEC29 EV AUS Safety instructions Note the following basic safety information when using electrical devices to protect against:  Electric shock  Fire hazards  Injury General safety WARNING!  Electrical devices are not toys Keep electrical devices out of reach of children or infirm per- sons.
  • Page 18 Safety instructions TEC29 EV AUS  Do not refuel the generator when the vehicle engine is running if the tank is in the vicinity of the generator.  If petrol is spilled, wipe it up properly and wait until the fumes have cleared before turning on the engine.
  • Page 19 TEC29 EV AUS Safety instructions Handling electrical cables WARNING!  The electrical power supply may only be connected by a qualified electrician. CAUTION!  Attach and lay the cables so that they cannot be tripped over or damaged. All the wiring must comply to AS3000 and AS3001.

  • Page 20: Scope Of Delivery

    Scope of delivery TEC29 EV AUS Scope of delivery No. in fig. 1, Number Description page 3 Generator Digital control panel Silencer Exhaust pipe, 2 m 1 set Mounting bracket for silencer Retaining bracket for external installation Holder for internal installation...

  • Page 21: Intended Use

    TEC29 EV AUS Intended use Intended use The TEC29 EV AUS (item no. 9102900291) generator is designed for use in motor homes, camper vans and vehicles for commercial use. The generator is not suitable for installation in water vessels. The generator produces a pure sine wave voltage of 230 V/50 Hz which can be connected to the consumer with a total continuous load of 2600 W.

  • Page 22: Technical Description

    Technical description TEC29 EV AUS Technical description The TEC29 EV AUS generator consists of the following main parts (fig. 2, page 3):  Combustion engine (1)  Alternator (2) with permanent magnets  Stepper motor (3)  Inverter (4)  Internal control panel (5) ...
  • Page 23 TEC29 EV AUS Technical description Control elements in the digital control panel The digital control panel is installed in the vehicle interior. No. in fig. 4, Description page 4 Display Shows the status reports. On/Off switch P Switches the digital control panel on and off if the main switch is at “I”...

  • Page 24: Installation

    Installation TEC29 EV AUS Installation CAUTION! Beware of injury The generator may only be installed by qualified personnel from a specialist company. The following information is intended for technicians who are familiar with the guidelines and safety pre- cautions to be applied.
  • Page 25 TEC29 EV AUS Installation You can secure the generator with the holders supplied in two ways:  External installation (fig. 5, page 5): External installation has the following benefits: lower space requirement, fast installation, easy access for maintenance work. – To ensure the generator is attached securely, use the retaining bracket (fig.
  • Page 26 Installation TEC29 EV AUS Installing the tank and fuel supply line Please observe the following instructions for the installation location:  The tank bottom must be positioned at a maximum of 0.3 m below the bottom of the generator.  The top of the tank must not be higher than the top of the generator.

  • Page 27: Connecting The Electrical Power To The Generator

    TEC29 EV AUS Connecting the electrical power to the generator Connecting the electrical power to the generator DANGER! Danger of electrocution Make sure there is no voltage at electrically operated components before carrying out work on them! NOTICE! Protect the system with an RCD breaker according to AS3001 regulation.

  • Page 28: Circuit Diagrams

    Connecting the electrical power to the generator TEC29 EV AUS Circuit diagrams The complete circuit diagram can be found in fig. e, page 9. Item Description 3-phase winding Auxiliary winding Battery charger Inverter Generator connector Stepper motor Main switch Thermal disconnector...
  • Page 29 TEC29 EV AUS Connecting the electrical power to the generator Control panel (fig. f, page 10) Item Description Main switch Main fuse Battery charger fuse Digital control panel connection Connector for service purposes Battery positive terminal 230 V connection Earth...
  • Page 30 Connecting the electrical power to the generator TEC29 EV AUS Connecting the starter battery NOTICE! The starter battery must have 12 V and a capacity of at least 60 Ah. Make sure that the battery is fully charged. ➤ Connect the positive terminal of the battery to the positive battery terminal connection using a cable with a cross-section of 10 mm²...
  • Page 31 TEC29 EV AUS Connecting the electrical power to the generator Configuring the automatic mode NOTE  You can only use automatic mode: – if the vehicle is stationary and the ignition is switched off  To shorten charging times, an additional charging unit with at...

  • Page 32: Operating The Generator

    Operating the generator TEC29 EV AUS Operating the generator NOTICE! Do not run the generator over 70 % of the maximum constant out- put for the first 50 operating hours (run-in phase). NOTE Run the generator at a maximum of approx. 75 % of the maximum continuous load after the run-in phase.

  • Page 33: Starting The Generator

    TEC29 EV AUS Operating the generator 10.3 Switching the digital control panel on and off This switch (fig. 4 2, page 4) on the digital control panel is for switching the digital control panel on and off. ➤ Switch the digital control panel on with the on/off switch.

  • Page 34: Display Messages

    Operating the generator TEC29 EV AUS 10.6 Display messages To reset the digital control panel when a message appears, press the on/off switch. Display message Generator behaviour Measures Description The generator does not start. Charge the battery. LOW BATTERY The battery voltage has fallen below the minimum value for starting up (9V).
  • Page 35 TEC29 EV AUS Operating the generator Display message Generator behaviour Measures Description The generator is running but Wait a moment. GEN CAL does not supply any voltage. Message appears when the generator is started up; it shows the calibration phase which takes place before each start-up.

  • Page 36: Checking The Oil Level

    Operating the generator TEC29 EV AUS 10.7 Checking the oil level CAUTION! Hot oil can cause burns. Only check the oil level when the generator is switched off. NOTE The generator must be level. Always check the oil level before use. To do this, proceed as follows (fig. i, page 11): ➤...
  • Page 37 TEC29 EV AUS Operating the generator 10.8 Switching to automatic mode You can only switch to automatic mode:  if it was configured when the generator was installed (see chapter “Connecting the autostart wiring” on page 31  if the vehicle is stationary and the ignition is switched off In automatic mode, the generator switches on automatically and charges the battery if the voltage of the connected battery is too low.

  • Page 38: Cleaning The Generator

    Cleaning the generator TEC29 EV AUS 10.9 Switching off the automatic mode ➤ Switch off the automatic mode switch (if available). ➤ Switch on the ignition. ✓ The display shows: GEN OFF Cleaning the generator NOTICE! Beware of damage  Do not clean the generator with a high-pressure cleaner.

  • Page 39: Servicing The Generator

    TEC29 EV AUS Servicing the generator Servicing the generator 12.1 Maintenance table WARNING! Only have maintenance work carried out by specialist personnel who are familiar with the relevant regulations. Inadequate mainte- nance may cause serious hazards. NOTE Have the following maintenance work performed at regular inter- vals or after the specified number of operating hours, whichever is sooner.
  • Page 40 Servicing the generator TEC29 EV AUS 12.2 Preparing maintenance work CAUTION! Note the following for all maintenance work:  The generator must not be running.  All the parts must be cooled down. ➤ Switch the generator to the off position with the main switch (fig. i 1, page 11).

  • Page 41: Changing The Oil

    TEC29 EV AUS Servicing the generator 12.4 Changing the oil CAUTION! Hot oil can cause burns. NOTICE! Only dispose of used oil at a specialist recycling station and observe the local laws for environmental protection. You may use the following oil: ...
  • Page 42 Servicing the generator TEC29 EV AUS 12.5 Servicing the air filter WARNING! Danger of explosions Do not use diesel oil or solvents with low boiling points for clean- ing the air filter. They could ignite or explode. NOTICE! Never leave the engine running without an air filter. Otherwise this quickly wears out the engine.
  • Page 43 TEC29 EV AUS Servicing the generator Cleaning the paper filter ➤ Knock the dirt off the paper by banging it lightly on a hard surface or use compressed air to blow through the filter. Do not brush the paper as this will push the dirt into the fibres of the paper filter.

  • Page 44: Troubleshooting

    Troubleshooting TEC29 EV AUS Troubleshooting Fault Cause Remedy ➤ Charge the starter battery. The digital Starter battery is flat (9 V). control panel ➤ Contact an authorised work- Power cable is disconnected or the does not come shop. plug is removed.
  • Page 45 TEC29 EV AUS Troubleshooting Fault Cause Remedy ➤ Drain the oil. The generator Too much oil in the engine. tends to stall. ➤ Reduce the consumers. Load is over 2.6 kW. ➤ Clean the carburettor. Carburettor is not receiving any petrol.

  • Page 46: Warranty

    Warranty TEC29 EV AUS Warranty The statutory warranty period applies. If the product is defective, please contact the service partner in your country (addresses on the back on the instruction manual). Our experts will be happy to help you and will discuss the warranty process with you in more detail.

  • Page 47: Technical Data

    TEC29 EV AUS Technical data Technical data Dometic TEC29 EV AUS Item no.: 9102900291 Rated output voltage: 230 Vw / 50 Hz Max. constant output 2600 W (at 25 °C at sea level): Derating altitude: 3.5 % derating every 300 m increase in...
  • Page 48 Dometic Norway AS UNITED KINGDOM Ecustraat 3 Skolmar 24 Dometic UK Ltd. NL-4879 NP Etten-Leur N-3232 Sandefjord Dometic House · The Brewery  +31 76 5029000  +47 33428450 Blandford St. Mary  +31 76 5029090  +47 33428459 Dorset DT11 9LS Mail: info@dometic.nl...
