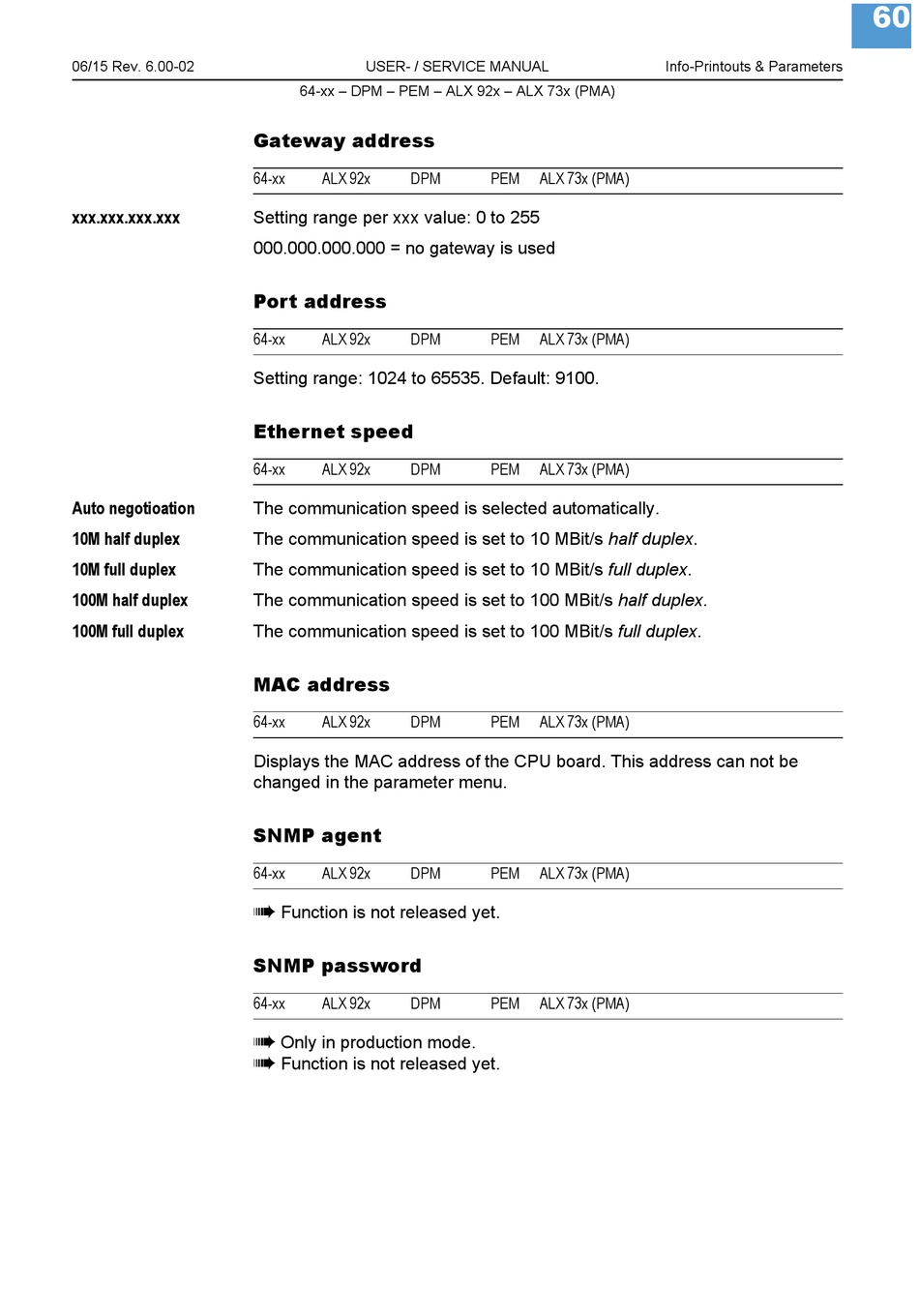

Gateway Address; Port Address; Ethernet Speed; Mac Address - Novexx Solutions 64-04 User Manual

06/15 Rev. 6.00-02
xxx.xxx.xxx.xxx
Auto negotioation
10M half duplex
10M full duplex
100M half duplex
100M full duplex
USER- / SERVICE MANUAL
64-xx – DPM – PEM – ALX 92x – ALX 73x (PMA)

Gateway address

64-xx ALX 92x DPM
Setting range per xxx value: 0 to 255
000.000.000.000 = no gateway is used

Port address

64-xx ALX 92x DPM
Setting range: 1024 to 65535. Default: 9100.

Ethernet speed

64-xx ALX 92x DPM
The communication speed is selected automatically.
The communication speed is set to 10 MBit/s half duplex.
The communication speed is set to 10 MBit/s full duplex.
The communication speed is set to 100 MBit/s half duplex.
The communication speed is set to 100 MBit/s full duplex.

MAC address

64-xx ALX 92x DPM
Displays the MAC address of the CPU board. This address can not be
changed in the parameter menu.

SNMP agent

64-xx ALX 92x DPM

Function is not released yet.

SNMP password

64-xx ALX 92x DPM

Only in production mode.

Function is not released yet.
PEM ALX 73x (PMA)
PEM ALX 73x (PMA)
PEM ALX 73x (PMA)
PEM ALX 73x (PMA)
PEM ALX 73x (PMA)
PEM ALX 73x (PMA)
Info-Printouts & Parameters
60
