Summary of Contents for CYP DCT-23
-

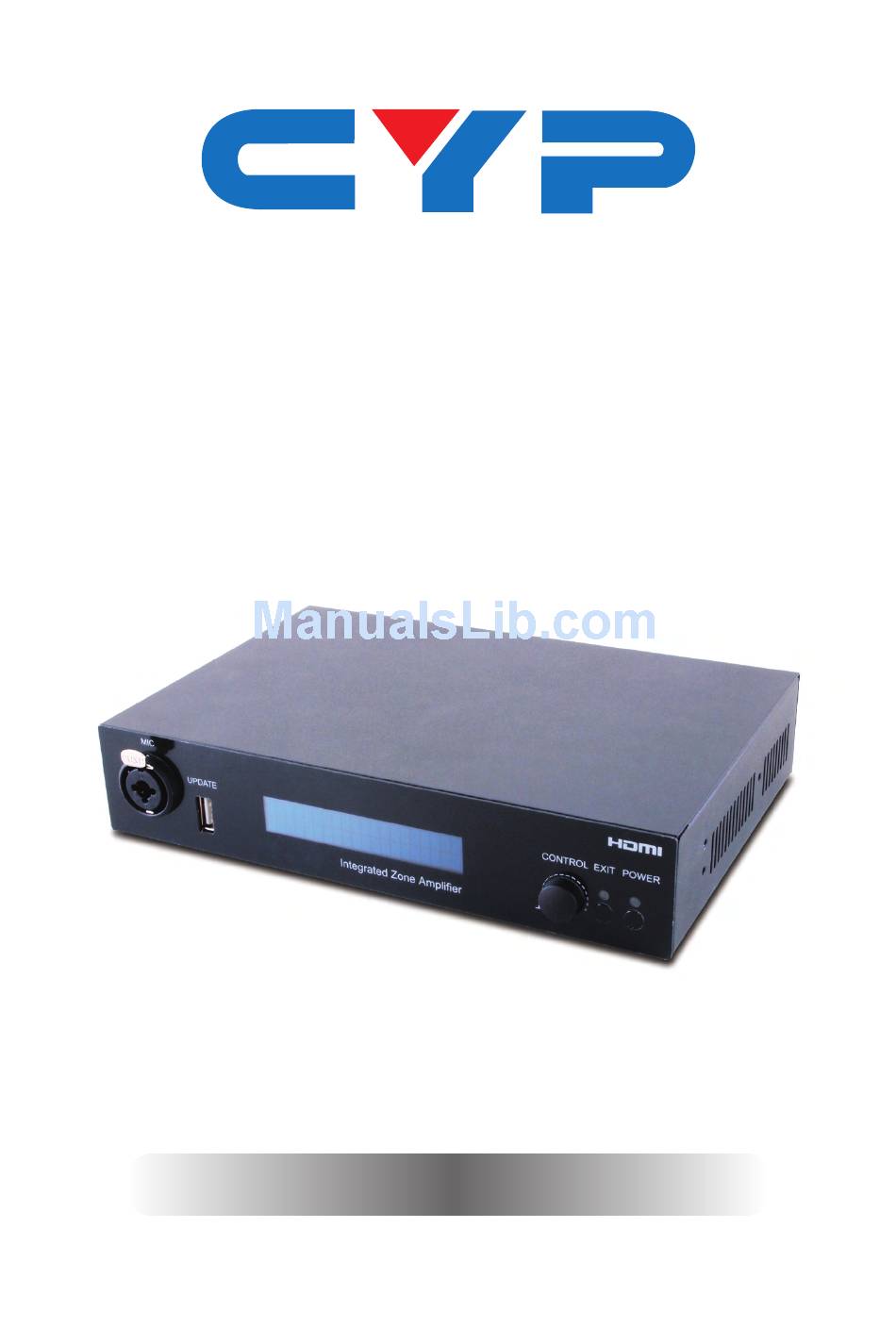

Page 1: Operation Manual
DCT-23 Integrated Zone Amplifier Operation Manual Operation Manual... - Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 Remote Control .........5 6.4 RS-232 Protocols ........6 6.5 RS-232 and Telnet Commands ..7 6.6 OLED Menu ........8... -
Page 5: Introduction
1. INTRODUCTION The Integrated Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital, and HDMI with an additional microphone input. As well as speaker outputs, it boasts line level output, optical and digital outputs, and HDMI outputs for wider systems integration. -
Page 6: Features
5. FEATURES • 30 watts per channel Digital Stereo Amplifier • Supports Digital to Analog audio Conversion (DAC) and Analog to Digital audio Conversion (ADC) • HDMI Audio Embedding and de-embedding • Supports input sampling rates up to 96kHz and output at 48kHz •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel PUSH UPDATE CONTROL EXIT POWER Coaxial In -20.0 dB 44.1K -> 44.1K Integrated Zone Amplifier MIC: Connect to a microphone or a mono balanced source. UPDATE: Manufacturer use only. LCM Display: Display current source selection and volume setting. IR Window: Accepts the IR signal from the supplied remote control. -
Page 8: Rear Panel
6.2 Rear Panel CONTROL IR IN LINE IN DC 24V RS-232 COAX. OPT. SPEAKER HDMI OUT HDMI IN 1 HDMI IN 2 OPT. COAX. CONTROL: Connect to an active network with RJ-45 cable for telnet control. HDMI OUT: Connect to HDTV/monitor for both audio and video display. -
Page 9: Remote Control
6.3 Remote Control POWER MUTE POWER: Press this button to turn the device On or to set it into standby mode. MENU MUTE: Press this button to mute the audio output. VOL. EXIT Vol. Up or Down (▲▼): Press these buttons to turn the output volume up or HDMI 1 HDMI 2... -
Page 10: Rs-232 Protocols
6.4 RS-232 Protocols INTEGRATED ZONE AMPLIFIER REMOTE CONTROL Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Rs-232 And Telnet Commands
6.5 RS-232 and Telnet Commands COMMAND DESCRIPTION PWR 0/1 Power control, 0=Off, 1=On SOURCE 0~5 Source selection, 0=HDMI 1, 1=HDMI 2, 2=OPT, 3=COAX, 4=LINE IN, 5=RCA IN VOL 0~80 Output volume setting, 0~80 db MUTE 0/1 Output volume mute control, 0=Unmute, 1=Mute MICVOL 0~30 Mic volume control, 0~30 db MICMODE 0~4 Mic mode select, 0=Off, 1=Normal, 2=Phantom,... -
Page 12: Oled Menu
6.6 OLED Menu MAIN MENU SUBMENU ADJUSTMENTS Function Select Audio In HDMI Set Display Set MIC Set Line Out Set IP Config Reset to Default Audio Select HDMI1 HDMI2 Optical In Coaxial In Line In RCA In HDMI Setting Video HDMI1 HDMI2 Audio... - Page 13 MAIN MENU SUBMENU ADJUSTMENTS Line Out Setting Fix Level Default IP Configuration Reset To Default...
-
Page 14: Connection Diagram
Smart Phone or Tablet Amplifier PC or RS-232 Control System Analog Stereo Input Digital Optical and Coaxial Input CD Player RS-232 Analog IR Receiver 2nd DCT-23 Stereo Input CONTROL IR IN LINE IN DC 24V RS-232 OPT. COAX. SPEAKER HDMI OUT... -
Page 15: Specifications
8. SPECIFICATIONS Input Ports 1×Microphone, 2×HDMI, 1×Optical, 1×Coaxial, 1×3.5mm Mini-jack, 1×Analog Stereo (2RCA), 1×D-Sub 15-pin (RS-232), 1×RJ-45 (Control), 1×IR Receiver Output Ports 1×HDMI, 1×Optical, 1×Coaxial, 1×Analog Stereo (2RCA), 1×L/R (2 Speaker Banana connectors) Digital Audio Input/ LPCM 2CH Output Stereo Input/Output Level 2 Vrms ± 0.2 ESD Protection Human body model: ±8kV (air-gap discharge) -
Page 16: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable COAX Coaxial HDMI High-Definition Multimedia Interface OLED High-Definition Multimedia Interface Optical... - Page 17 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
