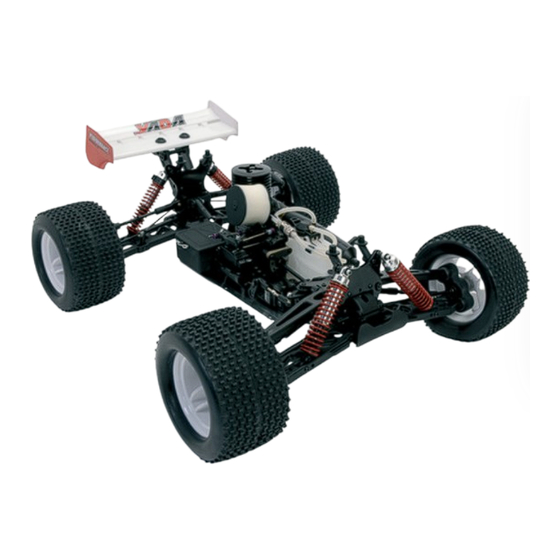

protech Yada TRR T33 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

T33
i c p o w e r e d r a c i n g t r u g g y
www.protech.be

Advertisement

Table of Contents
loading

Related Manuals for protech Yada TRR T33

Summary of Contents for protech Yada TRR T33

  • Page 1 www.protech.be...
  • Page 2 30-41 van deze handleiding te raadplegen PROTECH kan niet verantwoordelijk gesteld worden PROTECH cannot be held responsible for damage or voor schade of vorderingen voortvloeiend uit het any claims arizing from the use of this product.
  • Page 3 6061 engine mount set Full ball Bearing throughout the car Pro steering geometry angle 6061 Black center diff. support plate Protech SX-26 engine included Pro Turnbuckles Complete 2 Channel radio included Moulded wing and Body included Lower CG design troughout the car...
  • Page 4 T0158 4pcs Set clés hexagonales Curved scissors Gebogen schaar Gebogene Schere AK100 Ciseaux Wire cutter Protech Racing Finish Draad stripper Protech Racing Finish Kneifzange Protech Racing Finish Pince coupante Protech Racing Finish RF... (*) Check the colours in our Cross wrench...
  • Page 5 Engine set -up / Afstellen van de motor Einstellungen des Motors / Réglage moteur • Check the ENGINE SET-UP manual to start and break in the engine • Lees aandachtig de handleiding AFSTELLEN MOTOR voor het inlopen en roderen van de motor •...

  • Page 6: Gear Differential

    Bevel gear small 10T T30.091 T33.046 Differential shaft Shim ring T33.048 3.6x12mm T33.052 (*) USE ONLY PROTECH SILICONE OIL FOR BEST PERFORMANCE FRONT DIFF. More steering use the ref. SL2500 Standard use the ref. SL5000 Less steering use the ref. SL10000 O-ring 6x1.5mm...
  • Page 7 Differential bevel gear 20T (Large) T33.053 2 x 9 mm pin T33.001 T33.053 O-ring T30.087 (*) USE ONLY PROTECH SILICONE OIL FOR BEST PERFORMANCE Shim ring FRONT DIFF. More steering use the ref. SL2500 T33.051 Standard use the ref. SL5000...
  • Page 8 Montage des réducteurs AR & différentiel central/ Montierung des Getriebe A & Central Assembly of the Central Differential F/H 3mm x 10mm (x4) (*) USE ONLY PROTECH SILICONE OIL FOR F/H 3mm x 10mm (4) BEST PERFORMANCE Differential gasket set T30.091...

  • Page 9: Front Shock Tower

    Assembly of the FRONT gearbox & SUSPENSION / Montage v/d tandwielkast V & / ophanging Montage des réducteurs FR & de la Suspension AV / Montierung des Getriebe V & Querlenker V 5 x 5mm set screw Front Gear Box MA2056 8 x 16 x 5 mm ball bearing...
  • Page 10 Assembly of the front suspension / Montage van de voorste ophanging / Montage de la suspension avant / Montierung von die vordere Querlenker Front Sway Bar MAKE 4 X ! Stabilizer Ball T30.100 3mm x 3mm (x2) 3mm x 5mm (x2) Ball End 6mm R/H 3mm x 16mm (x2) T30.051...
  • Page 11 Assembly of the front suspension / Montage van de voorste ophanging / Montage de la suspension AV / Montierung von die vordere Querlenker oben Front Upper Suspension R/H 3 x 12mm R/H 3mm x 12mm (x2) Front Upper Suspension Arm 4mm x 4mm (x2) Spacer 1mm 4 x 4mm...
  • Page 12 Assembly of the front suspension / Montage van de voorste ophanging / Montage de la suspension AV / Montierung von die vordere Querlenker oben Right / Left Steering X 2 USE NUT LOCK 8 x 16 x 5 mm ball bearing Steering Knuckle T30.144 T30.029...

  • Page 13: Servo Saver

    Assembly of the servo saver / Montage van de servo saver Assemblage du sauve-servo / Montierung des Servo Saver Servo Saver SERVO SAVER COMPLETE: T30.063 R/H 3 x 8mm R/H 3 x 8mm Ball Bearing T30.14 Spring Cap USE NUT LOCK Ball Bearing T30.063 T30.14...

  • Page 14: Rear Shock Tower

    Assembly of the rear suspension / Montage van de achterste ophanging / Montage de la suspension AR / Montierung von die Querlenker oben R/H 3 x 12mm R/H 3 x 12mm Rear Shock Tower Rear Body Mount R/H 3mm x 12mm (x4) T33.037 Rear Shock Tower ( * ) TRR TTR = 6061 Alu Rear Shock Tower T33.015...
  • Page 15 Assembly of the rear suspension / Montage van de achterste ophanging / Montage de la suspension AR / Montierung von die Querlenker oben Rear Hub Carrier Assembly 5 x 5mm (x2) Rear Hub - L T30.030 Drive shaft 8 x 16 x 5 mm USE NUT LOCK T33.018 ball bearing...
  • Page 16 Assembly of the CENTER gearbox / Montage van het centrale differentieel Montage du réducteur central / Montierung des centrale Getriebe Rear Upper Arm R/H 3mm x 8mm (x2) Rear Upper Arm - A 49 mm T30.050 R/H 3mm x 23mm (x2) 5 x 80mm Ball 7mm T33.019...
  • Page 17 Mounting the differentials on the chassis / Montage v/d differentielen op het chassis / Montage des différentiels sur le chassis / Montierung die 3 differentialen auf das chassis Right / Left Side Guard F/H 3mm x 8mm (x6) TRR RTR = 6061 Alu Main Chassis T33.021 TRR PRO = 7075 CNC Chassis T33.221...

  • Page 18: Steering Rod

    Mounting the parts on the chassis / Montage v/d differentielen op het chassis / Montage des parties sur le chassis / Montierung die 3 differentialen auf das chassis Tension Rod R/H 3mm x 12mm (x3) R/H 3mm x 20mm (x2) R/H 3 x 20mm R/H 3 x 20mm F/H 3mm x 8mm (x6)

  • Page 19: Steering Servo

    Assembling the radio plate / Montage van de radioplaat / Montage de la platine radio / Montieren von die Fernsteuerungs Platine Ball End 7mm Steering Servo T30.098 Turnbuckle T33.026 R/H 3mm x 16mm (x4) R/H 3mm x 8mm (x1) Ball End 7mm T30.098 R/H 3mm x 6mm (x1) 19mm...
  • Page 20 Assembling the radio plate / Montage van de radioplaat / Montage de la platine radio / Montieren von die Fernsteuerungs Platine Antenna Tube Receiver Box Set T0660.063 (included in radio set) Receiver Battery (Option part) Part # P4210.J (1050mAh/4.8V) R/H 3mm x 8mm (x4) Part # P5310.J (1050mAh/6V) Switch Holder Receiver included...
  • Page 21 Assembly of the Fuel Tank / Montage van de Brandstoftank Montage du Réservoir / Montierung des Kraftstoftank Fuel Tank R/H 3mm x 12mm (x2) F/H 3mm x 10mm (x2) R/H 3 x 12mm F/H 3 x 10mm Fuel Tank 125cc T30.093 Fuel Tank Post T30.045...

  • Page 22: Engine Mount

    Building the clutch / Montage van de koppeling Montage du système d’embrayage / Montierung von die kupplungsglocket Clutch Set Up Cap Screw 3 x 12mm Cap Screw 3 x 12mm Nylon nut M3 Nylon nut M3 Cap 3mm x 12mm (x4) MA2011 MA2011 Cap 3mm x 10mm (x1)
  • Page 23 Assembly of the throttle control linkage / Montage van de carburator aansturing Montage de la commande de carburateur / Montieren von die vergaser anlenkung Muffler R/H 3mm x 8mm (x1) R/H 3mm x 8mm (x1) F/H 4mm x 8mm (x1) 3mm x 3mm (x4) 4 x4mm MA2052 Manifold...
  • Page 24 Assembly of the FR & RE shock absorbers / Montage van de voorste & achterste schokdempers Assemblage des amortisseurs AV & AR / Montiering des dämpferzylinder vorne und hinten Front & Rear Shocks • 4X * Complete Shock Set T33.004 Nylon nut M2.5 Shock Collar Ball 6.8mm...

  • Page 25: Rear Shock

    Mounting of the front & rear shock absorbers / Montage van de voorste & achterste schokdempers Montage des amortisseurs AV & AR / Montiering des dämpferzylinder vorne und hinten Front Shock CAP 3 x 25mm R/H 3mm x 20mm (x2) Cap 3mm x 25mm (x2) Shock Bushing T30.064...
  • Page 26 Mounting of the rear wing / Montage van de achtervleugel Montage de l’aileron AR / Montiering des heckflügel Wing & Wing Stay R/H 3 x 12mm T30.212 Wing Stay Joint TRR RTR = plastic T30.037 TRR PRO = aluminium T31.202 Wing Stay Joint (*) T30.037 Upper Wing Stay...

  • Page 27: Air Filter

    Throttle linkage & assembly of the Air filter / Carburator afstelling & montage van de Luchtfilter Reglage de la commande de carburateur & montage du filtre à air / Die vergaser anlenkung & des luftfilter Linkage Adjustment Neutral Position Full Throttle Position Max 1.1mm Open !! Full Throtlle = Brake at neutral position !! Full Trotlle = Carburator max Open !!
  • Page 28 Plaats de mousse en de banden op de velgen, voorzichtig de banden op de velgen verlijmen met CA lijm (Wij raden aan dat U PROTECH CA lijm nr. A105-25 gebruikt). Montieren Sie den Schaumstoff und Reifen auf die Felgen, kleben Sie die Reifen vorsichtig auf die Felgen mit CA Klebstoff (PROTECH n°: A105-25).
  • Page 29 Cut out of the body / Uitsnijden van de carrosserie Découpe de la carrosserie / Ausschneiden von Karosserie Body Body (Clear) T33.033 Body Clips PA007 Protech curved scissors Ciseaux courbé Lexan schaar Schere AK100 TRR RTR Body (Pre-Paint) T33.034 Protech Racing Finish Special paint for polycarbonate Peinture spéciale pour le polycarbonate...
  • Page 30 Spare parts / Onderdelen Pièces détachées / Unterteilen T33.034 TRUGGY body pre-paint T33.004 Shock set Front & Rear T33.006 Shock body Front & Rear T30.007 Shock rebuild kit 2pcs 2pcs T30.013 Shock cap bushing, 4pcs T33.009 Shock shaft FR&RE T30.010 Shock piston 2-hole T30.012 Shock bladders, 4pcs...
  • Page 31 Spare parts / Onderdelen Pièces détachées / Unterteilen T30.033 Front bumper T33.002 Differential case T30.035 Center air guide plate T33.025 Chassis brace set front & rear T30.037 Wing stay set T30.039 Rear wing white T30.101 Front steering pivot ball T30.024 Brake disc holder, 2pcs with bushing, 4pcs T30.049...
  • Page 32 Spare parts / Onderdelen Pièces détachées / Unterteilen T30.111 Shim ring set for 13T T33.029 Brake Lever T30.0059 Brake pad, 4pcs T33.027 Brake discs, 2pcs pinion gear, 13pcs T33.044 Front & rear brake cam T33.019 Rear upper susp. T33.007 62T steel spur gear T33.005 43T differential gear turnbuckle...
  • Page 33 Spare parts / Onderdelen Pièces détachées / Unterteilen T30.081 Steering plate 6061T T33.020 Center diff. support plate T30.083 Front suspension arm T30.084 Rear suspension arm holder holder T30.085 Engine mount T33.014 Wheel hub, 2pcs T33.050 Differential o-ring T30.088 Diff. washer thin for 5x1.5mm, 6pcs outdrives, 12pcs T33.051...
  • Page 34 Spare parts / Onderdelen Pièces détachées / Unterteilen MA2103 M3 washer, 10pcs MA2104 M4 washer, 10pcs T30.144 Rubber sealed bearing T30.145 Rubber sealed bearing 8x16x5mm x 10 5x10x4mm x 2 T30.109 Rear sway bar 2.8mm T30.146 Rubber sealed bearing T30.147 Metal sealed bearing T30.150 Alu.
  • Page 35 Spare parts / Onderdelen Pièces détachées / Unterteilen E0415 Fuel bottle 500ml T30.214 Fuel filter T33.026 Steering Turnbuckle Option parts / Opties Options / Optionen T31.202 Aluminium wing stay joint T33.222 7075 CNC Modified T31.210 7075 steering plate T33.033 TRUGGY body transparent lighten main chassis T31.212 7075 front suspension...
  • Page 36 Option parts / Opties Options / Optionen T33.223 Center CVD drive shaft T33.040 Shock spring blue FRONT T33.041 Shock spring blue REAR T30.040 Rear wing yellow Front & Rear set 1.8mm, 2pcs 1.8mm, 2pcs T30.105 Front sway bar 2.2mm T30.106 Front sway bar 2.3mm T30.107 Front sway bar 2.4mm...
  • Page 37 Engine spare parts SX-26 #M1045...
  • Page 38 Safety precautions Veiligheidsvoorschriften Sicherheits vorschriften / Précautions d’usages Don’t drive where many rocks are found. In 1/ scale off-road racing a stone with a diameter of 10cm is in real life a rock of nearly 1m. Take care not to drive against objects because this may damage your model externally aswell as internally.
  • Page 39 How to jump / Hoe moet je springen Wie man Springt / Comment bien sauter Spring zo dicht mogelijk bij de grond: Een hoge sprong kan mooi lijken maar het is zeker geen voordeel bij het competitie rijden omdat u niet kan versnellen als de wielen van de grond zijn.
  • Page 40 Basic Setup Sheet YADA TRR...
  • Page 41 Blank Setup Sheet YADA TRR...
  • Page 42 Notes...
