Micron Handy Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Publication Part Number: 9117
Revision: 1

Advertisement

Table of Contents
loading

Related Manuals for Micron Handy

Summary of Contents for Micron Handy

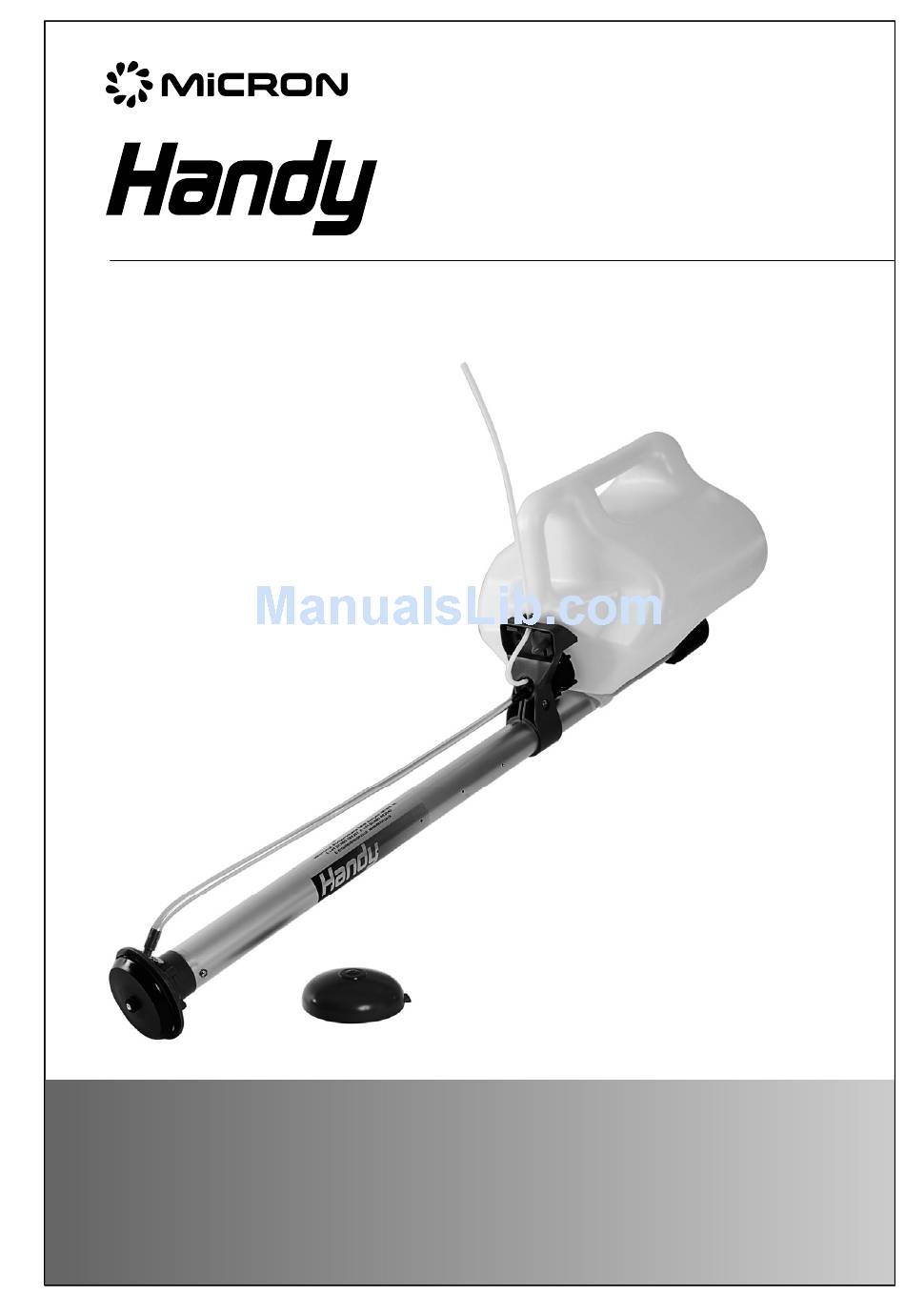

  • Page 1 Instruction Manual Publication Part Number: 9117 Revision: 1...

  • Page 3: Table Of Contents

    250 micron; large enough to minimise any risk of spray drift. The ergonomic design of the HANDY, with the carrying handle and bot- tle being an integral part of the machine allows for closed chemical transfer and im- proved operator safety.

  • Page 4: Safety

    Never use the HANDY in potentially explosive atmospheres or spray flammable liq- uid through it. The HANDY can be used with most conventional herbicides, as well as specific CDA formulations (only available in some countries). Always read the product label carefully to discover:- ♦...

  • Page 5: Preparing For Spraying

    PREPARING FOR SPRAYING - NEW SCREW SWITCH 1. Remove the green protective cover from the atomiser disc. 2. Remove the switch end piece as shown on the label. 3. Insert four batteries (D-cell/R20) negative i.e. flat end first, and replace the switch end piece TURN ON Air bleed tube TURN OFF...

  • Page 6: Mixing And Filling

    With the HANDY herbicides are usually applied in around 20 litres total spray vol- ume per hectare, with the exception of glyphosate which can be applied at volumes as low as 10 litres per hectare. These are lower volumes than recommended for high volume application with knapsack sprayers.
  • Page 7 For example, if the label recommends applying a minimum of 2 litres of product made up to 200 litres of water per hectare with a knapsack sprayer, use 2 litres of product made up to 20 litres for application with the HANDY, i.e. a spray mix con- centration of 10%.
  • Page 8 4. Attach the spray bottle to the battery 3. Fill with water up to the 5 litre mark. case clamp, making sure that the un- ion nut is firmly tightened. 5. Shake the bottle to ensure thorough 6. Wipe the bottle with a dry cloth. mixing - check for leaks.

  • Page 9: Calibration

    These values have been measured using water only. Actual flow rates will depend on the viscosity of the spray liquid used and the angle at which the operator holds the sprayer. Before spraying, therefore, the HANDY should be calibrated by the operator for the spray mix being used.

  • Page 10: Before Spraying

    BEFORE SPRAYING Check the wind speed and direction (below 5 kph is safest). Take special care to avoid drift by keeping the spray head as low as possible. Before spraying for the first time use soap and water only to familiarise yourself with the sprayer and check the spray pattern produced.

  • Page 11: To Stop Spraying

    TO STOP SPRAYING If there is any spray liquid left in the spray bottle, keep the motor running and slowly tilt the sprayer so that the head is above the level of the bottle and when no more spray liquid is emitted from the at- omiser disc, switch off the sprayer.

  • Page 12: Storage

    After working with agrochemicals, or handling spraying equipment, always thor- oughly wash hands and exposed skin. All protective clothing should be washed sepa- rately from other clothing and stored. Contaminated gloves should be washed inside and out. STORAGE Before storing for long periods, make sure that the batteries are removed to prevent leaking and that the sprayer is clean and dry.

  • Page 13: Troubleshooting

    Troubleshooting a) Atomiser disc spins but does not spray or sprays irregularly. Check the feed nozzle. If the feed nozzle is blocked remove and soak in soapy water. − Never blow through the nozzle with your mouth. that the feed nozzle gives a flow rate within the operating range. −...

  • Page 14: Handy Parts Drawing

    HANDY PARTS DRAWING...

  • Page 15: Handy Parts List

    HANDY PARTS LIST DESCRIPTION PART NO. ATOMISER PROTEXCTIVE COVER, GREEN 4462/GREEN ATOMISER COVER 5021 SLINGER / DUMMY SHAFT 5022 SCREW No. 6 x 3/8” POZI PAN HD, TYPE B S/S 5399 FRONT PLATE 5424 O’RING BS611 NITRILE 5454 O’RING BS365-30, NITRILE...
  • Page 16 NOTES...
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 20 Copyright © Micron Sprayers Ltd. 2013 General Enquiries: Australian Enquiries: Micron Group Micron Group Bromyard Industrial Estate, P.O. Box 1246, Berri 5343, Bromyard, Herefordshire, South Australia HR7 4HS, U.K. T +61 (0)8 8582 4077 T +44 (0)1885 482397 E enquiries@enviromist.com.au F +44 (0)1885 483043 enquiries@micron.co.uk...
