INSTRUCTIONS

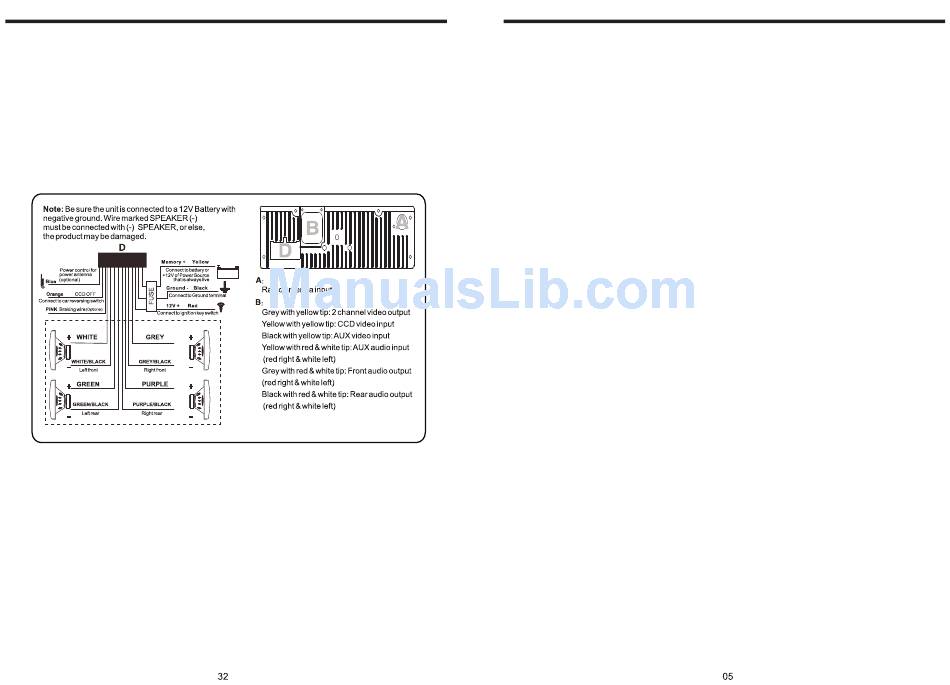

22.WIRING DIAGRAM
This player is equipped with ISO standard connector, please follow below instruction:
Red - ACC ON (+12V)
●
Yellow – 12 V Constant
●
Black – Ground wire
●
Blue - Power Antenna / Remote Amp Turn On
●
Orange – Back-Up Camera Trigger (+)
●
Note:
The "PARKING BRAKE" wire must be connected to the parking brake system
of your car. When the parking brake is engages, the LCD will be allowed to view
your video. If not, the screen will produce an image saying, "PARKING BRAKE".
This is a safety feature designed for the driver not to watch a video while driving.
The video output on this unit will not be affected by this.
Grey/Grey black - Right front speaker (+/-)
●
White/White black - Left front speaker (+-)
●
Purple/Purple black - Right rear speaker (+/-)
●
Green/Green black - Left rear speaker (+/-)
●
Pink – Parking Brake (-)
●
4.FEATURES
DVD PLAYER
1. MPEG-4 Decoder Technology
2. Compatible with MP4 (AVI/5.X), DVD (DVD-R/DVD-RW), VCD,
SVCD, CD-RW, WMA, MP3, JPG
3. Supporting Multiple Subtitles, Angles, Languages
4. Child lock function
5. 4-Channel Audio Output
6. Pause, Play, Up/Down, Stop, Zoom, PBC Function
RADIO
1. AM/FM Radio Tuner
2. 30 Radio Preset Stations (18FM, 12AM)
LCD DISPLAY
1. 8.0" - 16:9 TFT LCD Display
2. Touchscreen
