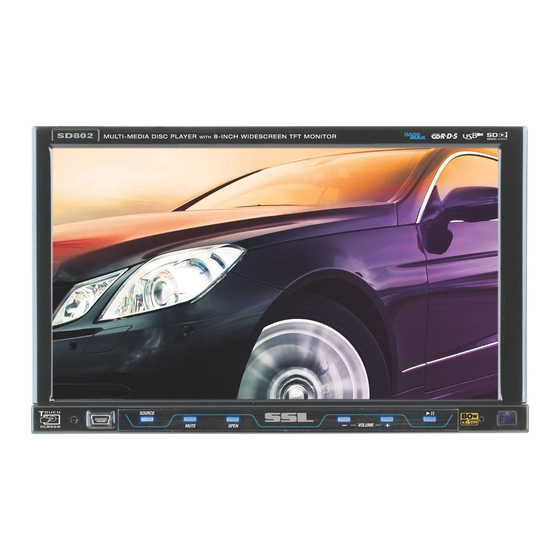

In-Dash DVD/MP3/CD Receiver SD802 With 8” Widescreen Touch Screen TFT Monitor CONTENTS Front Panel A/V AUX Input 1.Welcome 2.Warning 3.Note 4.Features 5.Basic Operation 6.Panel Arrangement 7.Basic Function 8.Main Menu Touch Operation 9.OSD Setup 10.Adjust Mode 11.Remote Control Function 12.Touchscreen Display For Disc Playback 13.DVD Mode... -
Page 3: Welcome
INSTRUCTIONS INSTRUCTIONS 24.ACCESSORY 1.WELCOME Thank you for enjoying our series of digital car A/V product. To properly use this product, please go through this instruction manual for installation and operation, put it in a safe place for future use! Accessory Quantity User Manual Wire... - Page 4 INSTRUCTIONS INSTRUCTIONS 3.NOTE 23.SPECIFICATIONS: ● This unit can play the following disc Power supply DC 12V Power range 10.8-16.0V DC Max operate current Dimensions 155X182X53MM Ground system Negative ground Amp Rating 80 Watts x 4 Channels FM tuner European requency range 87.5-108MHz USA frequency range 87.5-107.9MHz...
- Page 5 INSTRUCTIONS INSTRUCTIONS 22.WIRING DIAGRAM 4.FEATURES This player is equipped with ISO standard connector, please follow below instruction: DVD PLAYER 1. MPEG-4 Decoder Technology Red - ACC ON (+12V) Grey/Grey black - Right front speaker (+/-) ● ● 2. Compatible with MP4 (AVI/5.X), DVD (DVD-R/DVD-RW), VCD, White/White black - Left front speaker (+-) ●...
-
Page 6: Note
INSTRUCTIONS INSTRUCTIONS 21.TROUBLE SHOOTING 5.BASIC OPERATION 1. SOURCE ON/OFF PROBLEM CAUSE SOLUTION Press SRC button on panel or SOURCE button on remote control quickly to power on. Press SRC button on panel or SOURCE button on remote control longer to power off. Check whether power fuse Change fuse same as the old one blew or not... -
Page 7: Panel Arrangement
INSTRUCTIONS INSTRUCTIONS OTHER PLAY MODE 6.PANEL ARRANGEMENT AUX IN: AUX IN OPERATION 1) Press “Source” button on remote control or touch “AUX” on the touch screen, to switch to AUX mode. 2) This will allow you to listen and or watch any source that you have plugged into this section of the radio. -
Page 8: Basic Function
INSTRUCTIONS INSTRUCTIONS 7.BASIC FUNCTION 1. SOURCE Button Press this button to power on. Press it shortly to switch audio source mode. At AUX IN mode, press it longer to power off. 2. MUTE / TFT on/off Button Press this button to shut off the sound output, re-press this button can resume the sound output, long press this button can turn off the TFT LCD display. - Page 9 INSTRUCTIONS INSTRUCTIONS 10. CD Program Play BASE In CD mode, you can set the sequence of playing by the program function, the operation is as follows: When CD is playing, press ST/PROG button, then the display shows: 1 [ _ _ ] 5 [ _ _ ] 9 [ _ _ ] 13 [ _ _ ]...
-
Page 10: Main Menu Touch Operation
INSTRUCTIONS INSTRUCTIONS 8.MAIN MENU TOUCH OPERATION 18.CD BASIC OPERATION Slide in CD/MP3 disc, unit will play it automatically. If disc is in slot, press DVD touch button on main menu can to play. OSD SET 1. Repeat Play In CD/MP3 mode, press AMS/RPT button on remote control, to startup following, repeat USB/SD CD disc: Single song repeat→... -
Page 11: Osd Setup
INSTRUCTIONS INSTRUCTIONS 15. VCD Program Playing 9.OSD SETUP In VCD mode, you can set playing sequence of songs by program play function. The program playing operation steps are as follows: Minute Hour In VCD mode, press ST/PTOG button, display will show: 1 [ _ _ ] 5 [ _ _ ] 9 [ _ _ ]... -
Page 12: Adjust Mode
INSTRUCTIONS INSTRUCTIONS 10.ADJUST MODE 8. OSD In playing mode, short press OSD on remote control to show all information of present disc. Sharp: press button to adjust sharp sound high and low 9. Number Buttons Back main menu In VCD mode, press 0-9 number button to input song. For example, you want to choose 13th song, press 10+ button, and then press 3 button once to play 13th song. -
Page 13: Remote Control Function
INSTRUCTIONS INSTRUCTIONS 17.VCD BASIC OPERATION 11.REMOTE CONTROL FUNCTION Slide in the VCD disc, it will play it automatically. If the disc is in slot, press DVD touch 4. SOURCE Button button on main menu can to play. Press this button to choose audio sources. 1. - Page 14 INSTRUCTIONS INSTRUCTIONS 15. 0 - 10 + Button 24. ANGLE Button 14. MENU Select In playing mode, press PBC button on remote control to back to the menu, display will Press this button to choose desired song, In DVD mode, press this button to change show chapter and section in disc.
-
Page 15: Touchscreen Display For Disc Playback
INSTRUCTIONS INSTRUCTIONS 8. OSD 12.TOUCHSCREEN DISPLAY FOR DISC PLAYBACK In playing mode, short press OSD on remote control to show all information of present disc. 9. Repeatedly Play In play mode, press AMS/RPT button on remote control to start up follow repeat function. Repeat (chapter) Repeat (section) Repeat (off) -
Page 16: Dvd Mode
INSTRUCTIONS INSTRUCTIONS 13.DVD MODE 16.DVD BASIC OPERATION Slide in DVD disc, unit will play it automatically. If disc is in slot, press DVD touch button AUDIO SETTING ON TOUCH SCREEN on main menu to play disc. 1. Pause Play In playing mode, press button on remote control, or on the display to pause. - Page 17 INSTRUCTIONS INSTRUCTIONS 15.RADIO OPERATION VIDEO SETTING ON TOUCH SCREEN 1. Band Selection In radio mode, press BAND button, BAND/P/N button on remote control, or touch position on screen every time to choose band, the sequence is as follows: You can choose: Brightness, Contrast, Color, Hue, adjust the image effect according to your sight.
-
Page 18: Rds User Operation
INSTRUCTIONS INSTRUCTIONS 14.RDS USER OPERATION 1. EON (RDS Mark) Indicate main unit is on auto tracking RDS mode. Short press on this button to 2. AF (RDS Auto Tracking Mark) decrease radio frequency; Press PTY, when PTY is on, it means there Indicate radio is auto tracking RDS channel.
