Page 1: Cooking Hob
GUIDE FOR INSTALLATION AND USE Cooking hob... -
Page 2: Table Of Contents
Contents Using your hob in complete safety What your hob looks like? Installing your hob in all simplicity Fitting recommendations Electrical connections Connecting the gas supply Changing the type of gas supply Using your hob in all simplicity How to use your gas burners? Which pans are best adapted for use on the gas burner How to look after your hob? Minor troubleshooting... - Page 3 D D e e a a r r C C u u s s t t o o m m e e r r , , Y Y o o u u h h a a v v e e j j u u s s t t a a c c q q u u i i r r e e d d a a B B R R A A N N D D T T h h o o b b a a n n d d w w e e w w o o u u l l d d l l i i k k e e t t o o t t h h a a n n k k y y o o u u .
-
Page 4: Using Your Hob In Complete Safety
our hob in complete safety sing your hob in complete safety We have designed your hob for private ● The connector pipe should remain ● domestic use. accessible along its entire length and must be replaced before its expiration date With a view to the constant ●... - Page 5 our hob in complete safety sing your hob in complete safety Utensils should always be placed centrally on the pan supports and over the burners. Flames which extend beyond the bottom of utensils are wasteful and can damage or overheat handles. Large diameter utensils (greater than 200mm in diameter) must not be allowed to protrude beyond the perimeter of the domino, as this could cause overheating or damage to the adjacent bench.
-

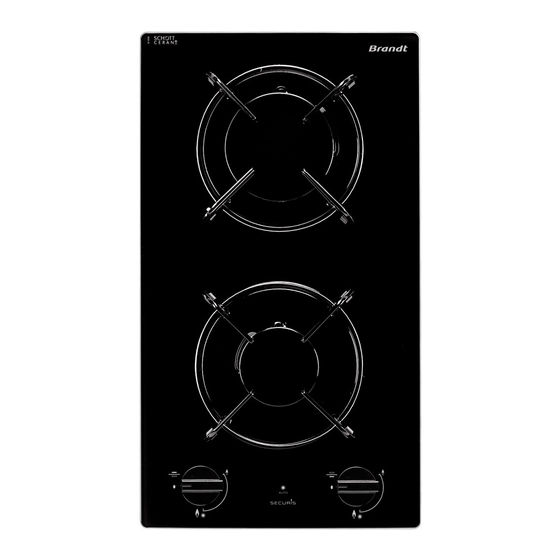

Page 6: What Your Hob Looks Like
hat your hob looks like? ① ① ② ② Semi-fast burner 1.60 kW * ② ② Extra-fast burner ① ① 3.00 kW * ( * Powers in Hong Kong town gas) Installing your hob in all simplicity itting recommendations Width Depth Height Standard cutout... - Page 7 Installing your hob in all simplicity itting recommendations (cont'd) The hob must be built into the work- top of a support cupboard. This work- top must be at least 3 cm thick and heat-resistant or else coated with a heat resistant material. A side-clearance of at least 30cm should be left to the right and left of the hob, 5.3cm from the rear wall.
- Page 8 Installing your hob in all simplicity itting recommendations (cont'd) Fixing - Place the hob in position in the cutout Worktop lugs on the worktop, pulling it forward as far as possible. - Put the burners, caps and pan grates back in position. - Connect the hob power supply cable to the electrical installation of the kit- chen.
-
Page 9: Electrical Connections
Installing your hob in all simplicity lectrical connections Your hob is delivered with a three- ROSS SECTION OF THE CABLE TO USE conductor (phase + ground + neutral) H05VVF- T105 or H05V2V2F - T90 220-240 V~- 50 Hz 1mm² section cable, which must be All-gas connected to a 220-240 V single pha-... -
Page 10: Connecting The Gas Supply
Installing your hob in all simplicity onnecting the gas supply You can obtain the adaptor and ● FOR SINGAPORE : LPG CONNECTION the sealing washer from your After-Sales Service Department. Gas supplied by tank or cylinder For your safety, you must choose this connection : —... - Page 11 Installing your hob in all simplicity onnecting the gas supply ● Preliminary remarks The gas supply must be connected in Warning line with current regulations in the Your appliance is sold pre-set for country of installation. TOWNGAS. If the hob is installed above an oven or if ●...
- Page 12 Installing your hob in all simplicity hanging the type of gas When carrying out this operation, you Grill should successively: ➊ Change the injectors Cover ❷ Adjust the retarder on the taps Head Dish ➊ C in the following HANGE THE INJECTORS Fig.
- Page 13 Installing your hob in all simplicity hanging the type of gas ❷ TOWNGAS W I T C H I N G F R O M NATURAL GAS FOR CHINA OR SINGAPORE DJUST THE RETARDER ON THE TAPS located under the knobs. Proceed as follows: •...
- Page 14 Installing your hob in all simplicity hanging the type of gas ➋ S TOWNGAS WITCHING FROM LPG GAS FOR SINGAPORE NDONESIA • Using a small flat-head screwdriver, screw in the brass burner-power screws (yellow) all the way, (fig. 01) screwing them in a clockwise direction.
-
Page 15: Using Your Hob In All Simplicity
Using your hob in all simplicity ow to use your gas burners? ● Lighting a hob F • To ignite a burner, press down and ITTED WITH A SAFETY turn the knob anti-clockwise until it DEVICE is pointing to the maximum position •... -
Page 16: Which Pans Are Best Adapted For Use On The Gas Burner
Using your hob in all simplicity hich pans are best adapted for use on the gas burner ? • Recommended pan sizes: Extra burner Small burner Extra-fast auxiliary 18 to 28 cm 12 to 16 cm Adjust the flames so that they do not lick up the side of your pan. -
Page 17: How To Look After Your Hob
How to look after your hob? Keeping your hob in good condition is easy if you clean it before it is completely cold. Even so, never clean it when it is in use. Put all the electric and gas control knobs at zero. -
Page 18: Minor Troubleshooting
Minor troubleshooting You have doubts about whether your hob is working correctly. This does not necessarily mean there is a breakdown. Nevertheless, check the following points IF YOU REALIZE THAT WHAT SHOULD YOU DO? Lighting the burners: - Check the electrical connections on the hob. - Check that the sparkers are clean. -
Page 20: Gas-Cooking Guide
F F a a g g o o r r B B r r a a n n d d t t S S A A S S , , M M a a n n a a g g e e m m e e n n t t c c o o m m p p a a n n y y – – S S A A S S : : s s o o c c i i a a l l c c a a p p i i t t a a l l o o f f 2 2 0 0 , , 0 0 0 0 0 0 , , 0 0 0 0 0 0 e e u u r r o o s s R R C C S S N N a a n n t t e e r r r r e e 4 4 4 4 0 0 3 3 0 0 3 3 1 1 9 9 6 6 . . CZ5701233_00 - 12/11 Réf. : TG1120B*...
