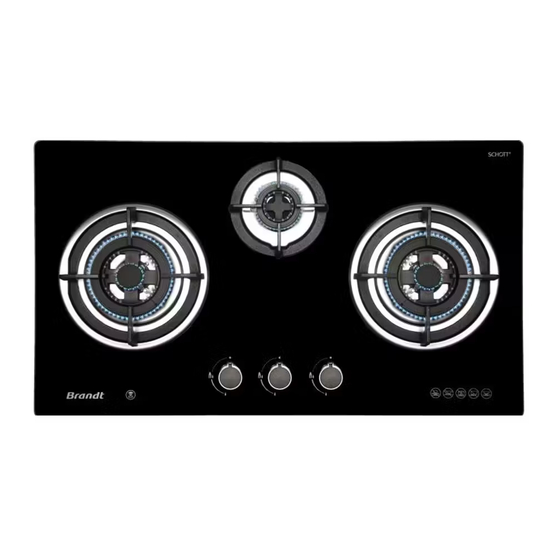

- Page 1 BUILT IN GAS HOB USER MANUAL INSTALLATION INSTRUCTION TG9905BBL TG9905BBP To avoid the risk of accidents or damage to the appliance. It is essential to read these instructions before it is installed or used for the first time.
-
Page 2: Table Of Contents
TABLE OF CONTENTS • SAFETY: READ THIS FIRST! • FROM THE MANUFACTURER • COMPONENT INFORMATION • DESCRIPTION OF APPLIANCES • MAINTAINING YOUR COOKTOP • PRACTICAL ADVISE • EASE OF USE 6 -7 • INSTALLATION REQUIREMENT 7 - 9 • INSTALLATION PROCEDURE 9 - 11 •... -
Page 3: Safety: Read This First
• It is dangerous to modify any part of this appliance. • To avoid a hazard, contact only the Brandt After Sales department, its service agent to avoid mishandling. • Always use authentic Replacement Parts. -
Page 4: Component Information
COMPONENT INFORMATION A. Wok Burners B. Auxiliary Burner C. Support Grids for Cookware D. Control Knobs for Gas Burners E. Ignitor for Gas Burners F. Flame Failure Device Front Back TG9905BBL (LPG) TG9905BBP (TOWN GAS) -
Page 5: Description Of Appliances
• The differences between the models are described in detail table shown below Nozzle and Burner Specification Burner Types Model Number Total Power Dimensions Auxiliary Burners Burner TG9905BBL 9.5kW(691g/h) 780mm x 450mm (LPG) Each Wok Burner is rated at 4.0kW Note: Each Auxiliary Burner is rated at 1.5kW Burner Types Model Number... -
Page 6: Maintaining Your Cooktop
MAINTAINING YOUR COOKTOP Before performing maintenance or cleaning on a gas appliance, disconnect it from the gas supply. To prolong the life of the cooktop, it is essential that it be cleaned frequently and thoroughly, keeping in mind the following: •... -
Page 7: Ease Of Use
EASE OF USE On each control knob, the position of the corresponding gas burner is indicated. The burners vary in size and output. Choose the one that corresponds to the diameter of the used cookware. Using the corresponding control knob, the burner can be adjusted to one of the following settings: NOTE: A Cross brace, also known as a Milk stand, is provided for small pot cooking –... -
Page 8: Installation Requirement
Symbol Description Do not place anything, e.g. flame tamer, asbestos mat, between pan and pan support as serious damage to the Symbol 1 appliance may result. Do not remove the pan support and enclose the burner Symbol 2 with a wok stand as this will concentrate and deflect the heat onto gas hob. - Page 9 In a chimney or flue with multiple branches Directly towards the exterior • The space must also accommodate the airflow required for proper combustion. The combustion air flow rate cannot be less than 2 m3/h per kW of installed capacity. The supply of said air can be accomplished by direct influx from the exterior through a duct with an inner cross section of at least 100 cm²...
-
Page 10: Installation Procedure
• Liquefied petroleum gases (LPG) are heavier than air and as a result, settle downwards. Rooms in which LPG tanks are installed must be fitted with ventilation openings to the outside to allow the gas to escape in the event of a leak. - Page 11 Clamps are provided to secure the cooktop to countertops between 20mm - 60mm thick. To securely fasten the cooktop, it is recommended that all clamps be utilized. Fig D TG9905BBL / TG9905BBP Installation above Ovens If the cooktop is installed above a built-in oven, an insulating wood panel must be installed.
-
Page 12: Gas Connections
least 1/50 of the compartment's floor area. The cylinder support shall have the following points: • Must possess adequate mechanical strength. • Not permitted to rest the cylinder directly on the ground. • Not to exceed the height of the base on which the cylinder rests. •... -
Page 13: Gas Conversion
• Take precautions on the operations and adjustments to be carried out when converting from one gas hob to another. • All work must be carried out by a Brandt authorized technician. • Before beginning, disconnect the gas and electrical supply to the appliance. -
Page 14: Troubleshooting
• After gas conversion a full operation and leak test (such as soap water or gas detector), must be performed. • All conversions MUST be performed by Brandt-authorized technicians. TROUBLESHOOTING It is possible for the cooktop to not function or to function improperly. Before contacting customer service for assistance, let's examine our options. - Page 15 Brandt Customer Service Centre, and provide the following information: • The nature of the issue. • The model number as displayed on the rating label Never employ technicians who are not authorized by Brandt or its service agent and refuse to accept non-original replacement parts.
