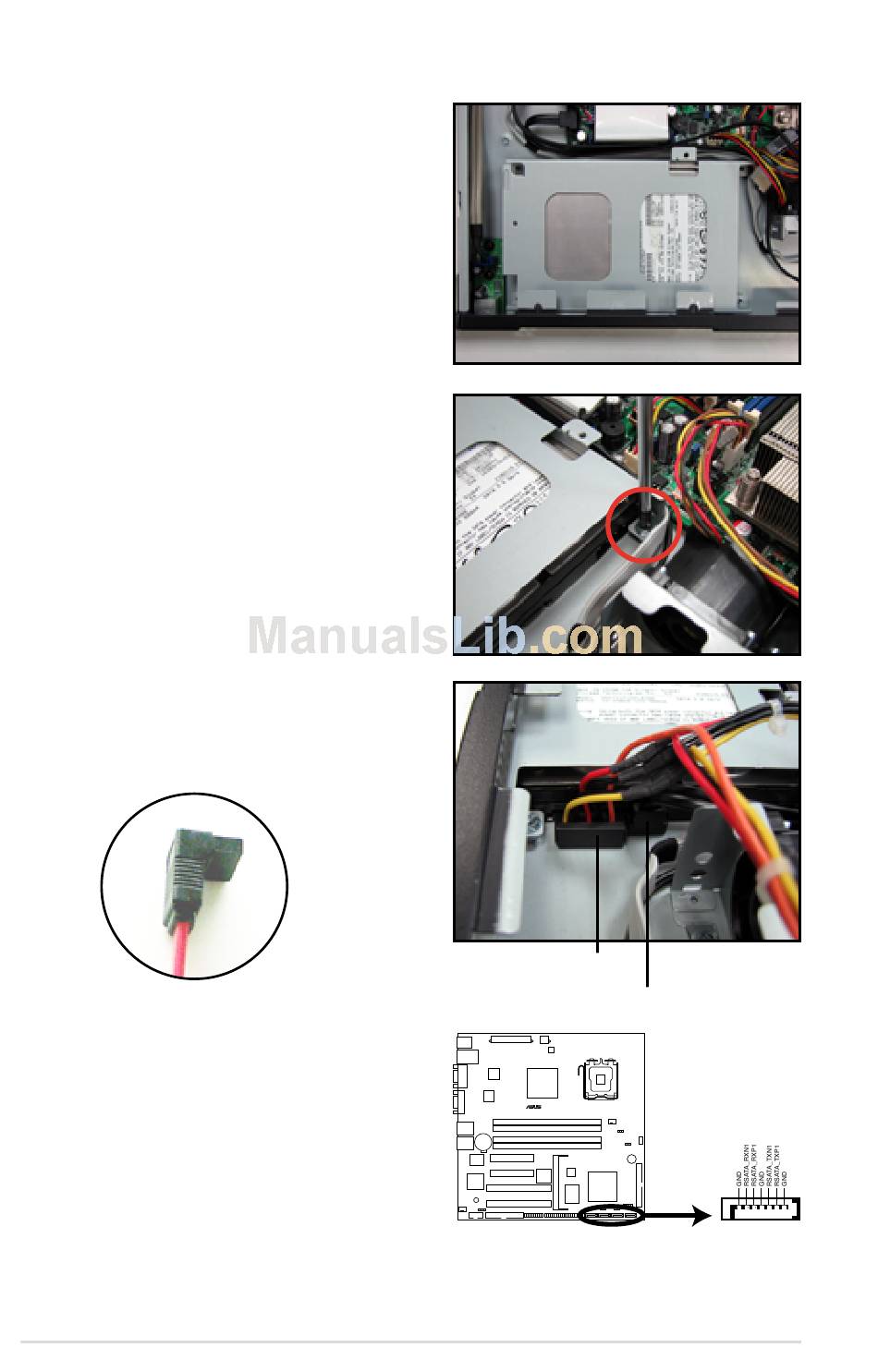

4. Insert the Serial ATA drive into the
drive plate as shown.
5. Secure the hard drive with four
screws.
6. Connect the Serial ATA signal cable
and ATX power connectors. Use
the L-type Serial ATA connector to
connect to the hard drive.
7. Connect the other end of the
Serial ATA signal connector to the
onboard SATA connector labeled
SATA3.
2-16
SATA L-type
connector
P5BV-M/RS100-E5 SATA3 Connector
ATX power connector
SATA signal cable
®
P5BV-M/RS100-E5
Chapter 2: Hardware setup
SATA3
