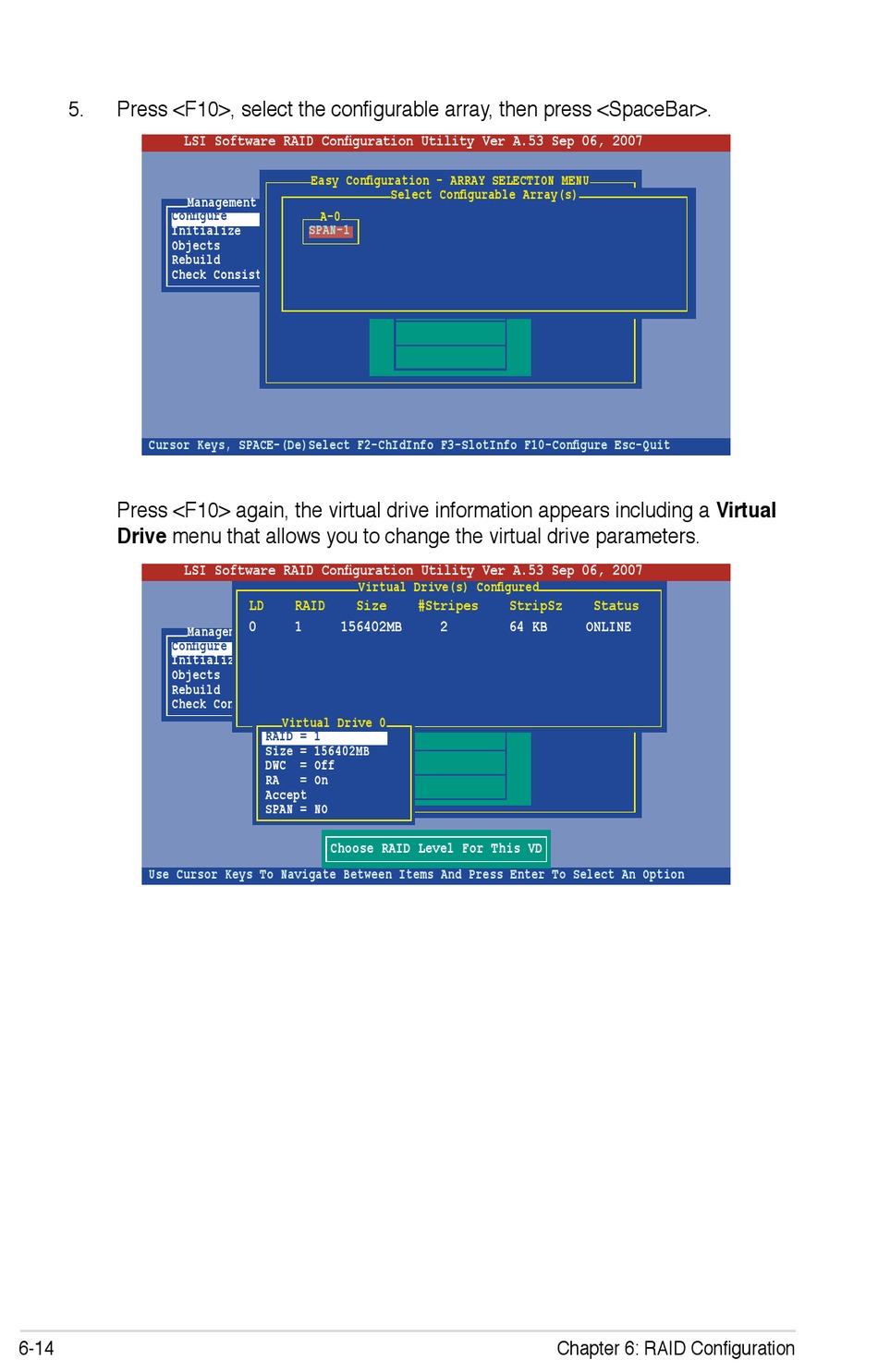

5. Press <F10>, select the configurable array, then press <SpaceBar>.
Configure
Initialize
Objects
Rebuild
Check Consistency
Cursor Keys, SPACE-(De)Select F2-ChIdInfo F3-SlotInfo F10-Configure Esc-Quit
Press <F10> again, the virtual drive information appears including a Virtual
Drive menu that allows you to change the virtual drive parameters.
Configure
Initialize
Objects
Rebuild
Check Consistency
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
6-14
LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007
Easy Configuration - ARRAY SELECTION MENU
Management Menu
A-0
SPAN-1
LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007
LD RAID
Easy Configuration - ARRAY SELECTION MENU
0 1 156402MB 2 64 KB ONLINE
Management Menu
Virtual Drive 0
RAID = 1
Size = 156402MB
DWC = Off
RA = On
Accept
SPAN = NO
Choose RAID Level For This VD
Select Configurable Array(s)
PORT #
0
1
Virtual Drive(s) Configured
Size #Stripes StripSz
PORT #
0
1
Status
Chapter 6: RAID Configuration
