Internal features

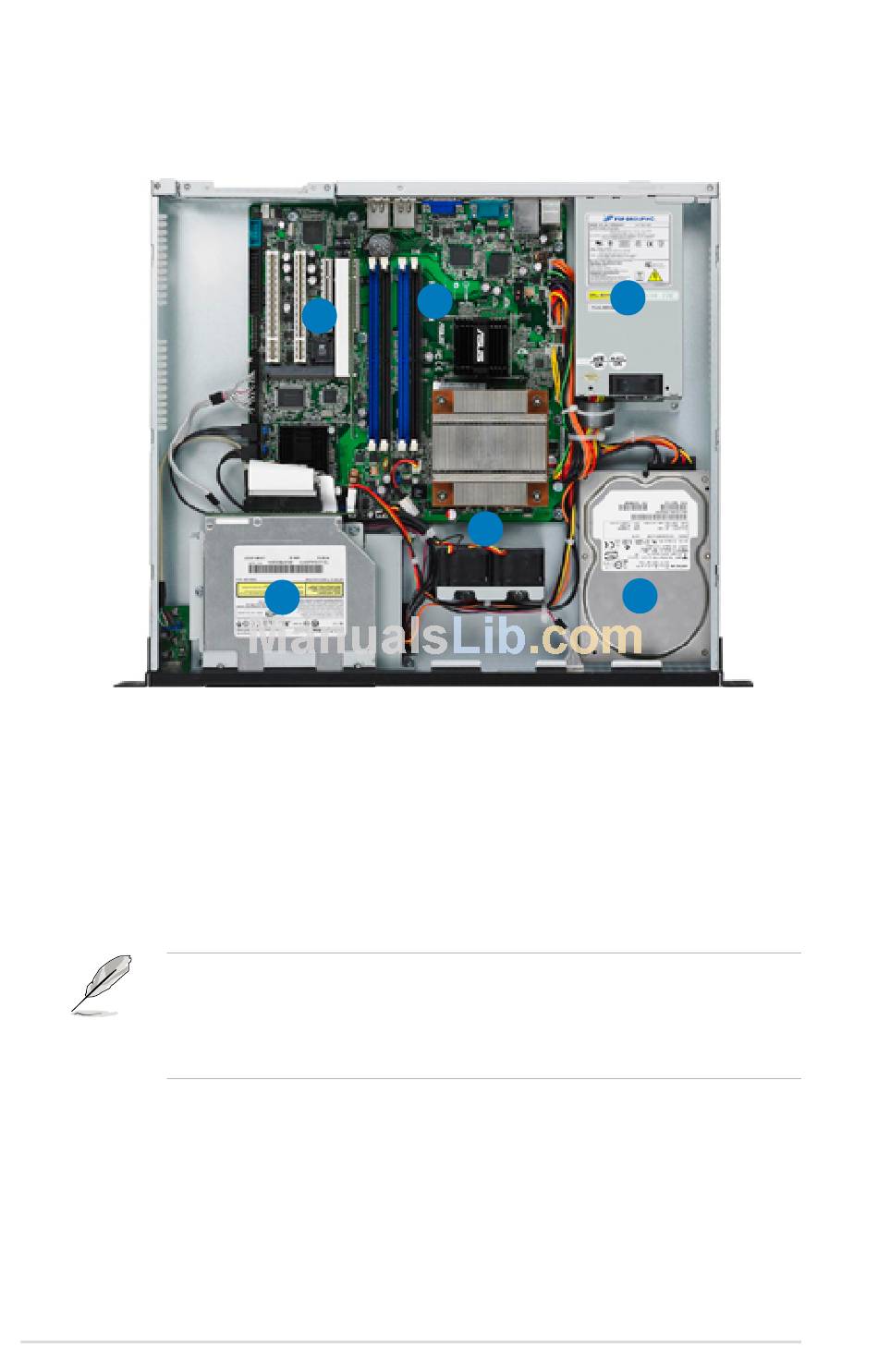

The barebone server includes the basic components as shown.
1.
2.
3.
4.
5.
6.
•
•
1-6
1
5
PCI Express x16 Riser Card (at x8 link)
Chassis fans (x 2)
ASUS P5BV-M/RS100-E5 Server Board
Power supply
HDD tray 2 (hidden) and Slim-type Optical
drive (optional)
HDD tray 1
The barebone server does not include a floppy disk drive. connect a USB
floppy disk drive to any of the USB ports on the front or rear panel if you
need to use a floppy disk.
Only ASUS CD/DVD-ROMs fit the optical drive bay.
3
2
