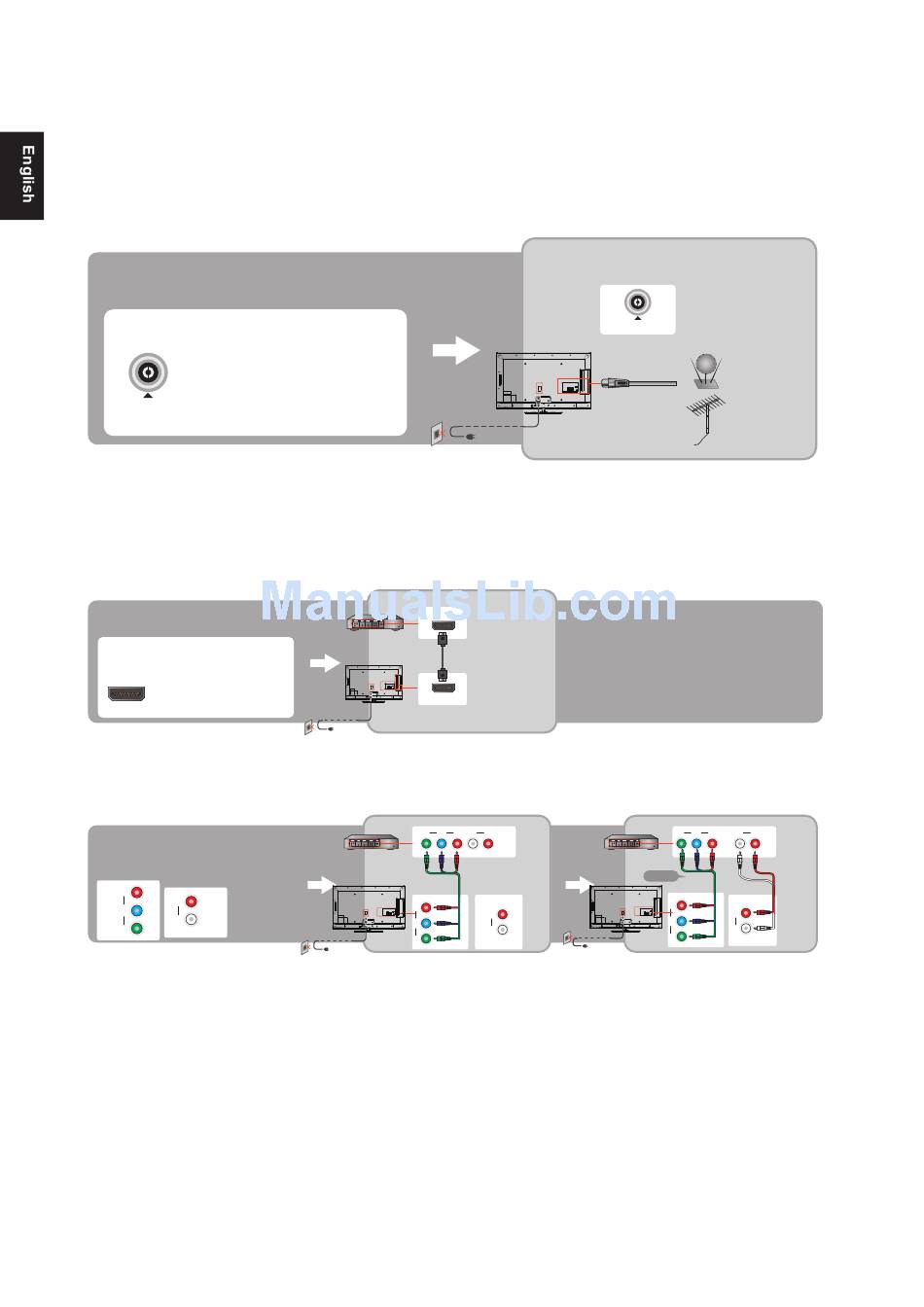

Connecting TV

Cable System or VHF/UHF Antenna System

You can enjoy standard-definition analog programming in with your new TV using both cable and external VHF/UHF antenna.
It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable to receive optimum picture quality. A 300-ohm
twin lead cable can be easily affected by radio frequency interference, resulting in signal degradation.
TUNER
TUNER

High Definition Interface

You can enjoy high-definition programming by subscribing to a high-definition cable service or a high-definition satellite service. For the best
possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input on the back of your TV.

HDMI Connection

HDMI IN
HDMI
HD Multimedia Interface
HDMI
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN (with DVI-to-HDMI cable or adapter) jack and connect
the audio jack to the PC AUDIO IN jacks.

Component Signal Connection

Component IN
Y Pb Pr
Component Video Input
Pr
R
Pb
L
Y
HDMI
HDMI
Y Pb Pr L R
Pr
R
Pb
L
Y
