P/N 900115-00 REV. B 01/2015
A French manual is available upon request. Order
P/N 900183-00.
Ce manuel d'installation est disponible en
francais, s implement en faire la demande.
Numéro de la pièce 900183-00.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
Cet appareil peut installé dans une maison préfabriquée (mobile) déjà installée à demeure, si les réglements locaux
le permettent. Ce appareil doit être utilisé uniquement avec le type de gaz indiqué sure la plaque signalétique. Cet
appareil ne peut être converti à d'autres gaz, sauf si une trousse de conversion est utilsée.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result
in serious injury, death, or property damage.
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR: Laissez cette notice avec l'appareil.
CONSOMMATEUR: Conservez cette notice pour consul-
tation ultérieure.

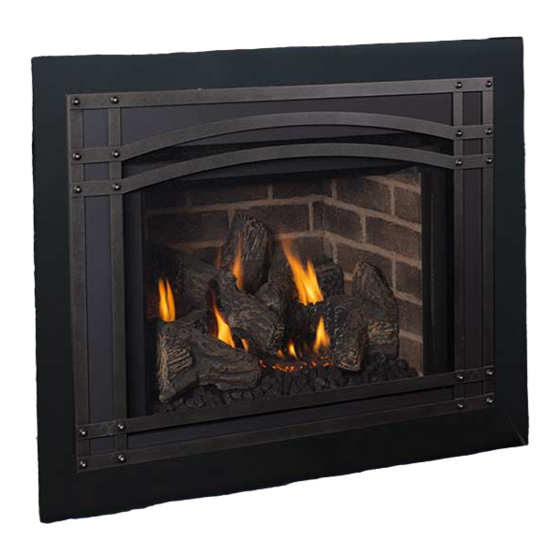

Direct-Vent
Madison Park™
C
US
Report # 14-098
INSTALLATION AND OPERATION
MODELS
MPI27
AVERTISSEMENT:
RISQUED'INDENDIE OU D'EXPLOSION
Le non-respect Des avertissements de sécurité pour-
rait d'entraîner des blessures graves, la mort ou des
dommages matériels.
— Ne pas entreposer ni utilizer d'essence ni d'autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
— QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucan interrupteur. Ne pas vous servir
des téléphones se trouvant dans le bâtiment où vous
trouvez.
• Sortez immédiatement de bâtiment.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du fournis-
seur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
— L'installation et l'entretien doivent être assurés par
un installateur ou un service d'entretien qualifié ou
par le fournisseur de gaz.
P900115-00
MPI27CD
Advertisement
Table of Contents
Related Manuals for IronStrike Madison Park MPI27
Summary of Contents for IronStrike Madison Park MPI27
-
Page 1: Installation And Operation
INSTALLATION AND OPERATION Direct-Vent Madison Park™ P/N 900115-00 REV. B 01/2015 P900115-00 A French manual is available upon request. Order P/N 900183-00. MODELS Report # 14-098 Ce manuel d’installation est disponible en francais, s implement en faire la demande. Numéro de la pièce 900183-00. MPI27 MPI27CD This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile... - Page 2 SAFETY AND YOUR FIREPLACE INSERT See attached color flyer for proper color representation DANGER HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS. A barrier* designed to reduce the risk of burns from the hot viewing glass is pro- vided with this appliance and shall be installed for the protection of children and other at-risk individuals.
-
Page 3: Safety And Your Fireplace Insert
La sécurité et votre Safety and Your Seguridad y su poêle encastrable Fireplace Insert chimenea All parts of your IHP Toutes les parties de votre ¡Todas las partes de la poêle encastrable IHP fireplace insert get chimenea IHP se ponen deviennent EXTRÊMEMENT EXTREMELY HOT! MUY CALIENTES! -
Page 4: Table Of Contents
CONGRATULATIONS! Venting Installation ..........15 Preparation For Flex Liner Installation ....... 15 Vertical Venting ..........16 When you purchased your new gas fireplace insert, you joined Zero Clearance Fireplace Installation ......17 the ranks of thousands of individuals whose answer to their home Firebox Liner Kit (required accessory) ....... -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Important Safety Informa- Información importante de L’information de sûreté tion seguridad importante 1. WARNING: Do not operate appliance 1. AVERTISSEMENT. Ne pas utiliser l’appareil 1. ADVERTENCIA: No opere el artefacto con el with the glass front removed, cracked si le panneau frontal en verre n’est pas en frente de vidrio quitado, agrietado o roto. -
Page 6: Homeowner - Attaching Safety In Operation Warnings
IHP étiquettes d’instructions adicionales gratuitas. de sécurité supplémentaires gratuitement. IronStrike.us.com Étiquettes de remplacement, n° cat. H8024 Juego de etiquetas de repuesto - Nº de cat. H8024 Note: English is red text on clear label. French and IronStrike.us.com... -
Page 7: Installer - Attaching Safety In Operation Warnings
IHP étiquettes d’instructions recibir etiquetas de instrucciones de seguridad de sécurité supplémentaires gratuitement. adicionales gratuitas. IronStrike.us.com Étiquettes de remplacement, n° cat. H8024 Juego de etiquetas de repuesto - Nº de cat. H8024 NOTE: English is red text on clear label. French IronStrike.us.com... -
Page 8: Appliance Installation, Service, And Maintenance Notices
Appliance Installation, Service, and If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. Maintenance Notices Si l'écran est endommagé, il doit être remplacé par celui fournit par le fabricant de cet appareil. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. -
Page 9: Important Safety And Warning Information
Plated surfaces must be cleaned with glass cleaner and a clean IMPORTANT SAFETY AND WARNING soft cloth before firing the first time or fingerprints will remain INFORMATION permanently. NEVER use brass polish to clean plated surfaces, this will remove the plating!!! C AUTION: Hot while in operation. -
Page 10: Orifice Size/Altitude Adjustment
IMPORTANT: When installing these appliances into a factory ORIFICE SIZE/ALTITUDE ADJUSTMENT built fireplace or heat-form, the air flow within and around the fireplace shall not be altered by the installation of the insert For altitudes above 2,000 feet (In Canada 4,500 FT/1370 M), the orifice (i.e. -
Page 11: Codes And Approvals
CODES AND APPROVALS COMMONWEALTH OF MASSACHUSETTS REQUIREMENTS These appliances are approved for installation in the US state of Mas- Certification sachusetts if the following additional requirements are met: Gas appliances must be tested and certified by a nationally recognized • Install this appliance in accordance with Massachusetts Rules and testing and certification laboratory to ANSI (American National Standard Regulations 248 C.M.R. -
Page 12: Pre-Installation
Packaging List PRE-INSTALLATION Insert Body Packaging List Features 1 Insert Body 1 Log Set (Model MPI27 Only) Installation Options 1 Bag of Embers (Model MPI27 Only) Manufactured (Mobile) Home 1 Literature Package (installation and operation manual, warranty Natural Gas Or Propane (LP) certificate, warning labels, pipe nipple, batteries [3 AAA and 4 AA], short 'L' refractory panel brackets, remote control and hardware kit*). -
Page 13: Insert And Fireplace Dimensions
26-5/8" (676mm) 16-3/4" (425mm) O.D. = 2-15/16" (75mm) 10-7/8" 8-3/4" (276mm) (222mm) Top View 14-7/8" (378mm) 14-3/8" 17-7/8" (365mm) (454mm) 20-3/4” (527mm) Front View Right Side View Left Side View Figure 2 - Insert Dimensions Minimum Fireplace Opening 27” (686mm) Front Opening Width 18"... -
Page 14: Clearances To Combustibles
Insert Leveling CLEARANCES TO COMBUSTIBLES At each front and rear corner of the insert is an adjustable leg provided Minimum Clearances to Combustibles to level the insert should the hearth of the fireplace be uneven. To adjust the legs, use a 1/4" wrench. Minimum clearances include any projections such as shelves, window sills, mantels, spacers/standoffs or surfaces to combustible construction etc. -
Page 15: Installation
INSTALLATION The existing fireplace chimneys may take various contours which Venting Installation the flexible liners will accommo- Vertical Cap date. However, keep the flexible Your IHP appliance must be vented to the outside in accordance with the liner VERTICAL and avoid bend- ing. -
Page 16: Vertical Venting
Vertical Venting Make sure that both liners will pass through existing damper area. Remove or lock damper to allow the passage of the flexible liners. If The vent pipes must be connected to the proper collars on the unit and the damper will not allow the passage of both liners, DO NOT PROCEED FURTHER. -
Page 17: Zero Clearance Fireplace Installation
Zero Clearance Fireplace Installation This appliance may be installed in a masonry or factory built/zero clear- ance (ZC) fireplace. When installing in a ZC fireplace, the ZC grate must be removed and the ZC damper must be removed or secured open. The ZC doors, screen, refractory or masonry lining, baffles and smoke shelf may be removed if necessary to install the gas insert. -
Page 18: Log Set Installation
Log Set Installation If logs are not installed according to the log installation instructions, flame impingement and improper combustion could occur and result in soot and/or excessive production of carbon monoxide (CO), a colorless, odorless, toxic gas. The size and position of the log set is critical to achieve a safe, reliable and attractive flame pattern. -
Page 19: Firebox Media Installation
Firebox Media Installation Surround Installation (Optional kit - See Page 35 for ordering information) 1. Position the appliance in the fireplace, but a few inches in front of its final location. 1. Measure out approximately 3 cups of glass media, and place an even layer on burner as shown in Figure 15. -
Page 20: Facade Installation (Required Accessory)
Facade Installation (required accessory) - All Models The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during any pressure testing of A number of different facade styles are available for your appliance. See the gas supply piping system at test pressures equal to or less than the installation instructions packaged with your facade. -
Page 21: Air Shutter Adjustment
Air Shutter Adjustment Battery Backup - Battery Installation This appliance has an air shutter control lever located behind the facade, This appliance is equipped with a battery backup system. It requires under the glass door (see Figure 18). The lever is linked to the primary air four (4) "AA"... -
Page 22: Operating Instructions
OPERATING INSTRUCTIONS OPERATION 1. The Main Power switch located in the control compartment functions as Pre-Lighting Checklist a burner override switch. When in the OFF position, it will not let the burner be turned on by the remote. When in the ON position, it gives Be sure to check these items before the initial lighting of the insert: the remote full control over burner functions. -
Page 23: Intermittent/Standing Pilot Mode
Intermittent/Standing Pilot Mode (On/Auto Pilot Mode Switch) This appliance can be switched from intermittent ignition to a standing pilot simply by using the remote to switch from IPI to CPI. This is done when the remote is in the off position. Press the mode key and use the up/down arrow key to change between IPI and CPI. - Page 24 Install 3 AAA type batteries in the Remote (transmitter) battery bay, OPERATION - MPI27 / MPI27CD located on the base of the Remote. With the batteries already installed in the Remote, push the ON button. The Receiver will “beep” four times Remote Control System to indicate the Remote’s command is accepted and sets to the particular code of that Remote.
- Page 25 OPERATION - MPI27 / MPI27CD Child Safety Lock-Out Transmission Low Battery Alarm Temperature Indicator Display Thermostat With the system in the “OFF” position, press the Thermostat Key and Room Temperature Off/On/Smart the Mode Key at the same time (see Figure 22). Look at the LCD screen SMART on the Remote to verify that a C or F is visible to the right of the Room Temperature display (see Figure 23).
-
Page 26: Operation
OPERATION - MPI27 / MPI27CD Burner Flame Appearance Blower Speed Control Soot above Soot at No Soot at Flame Tip Flame Tip Flame Tip This appliance is equipped with a hot air circulating blower. The speed Dark Orange of the blower is controlled by the Remote. The blower speed can be Semi-Transparent Flame Ports on Pan... -
Page 27: Wiring Diagram
BURNER & PILOT = FEMALE DISCONNECT VALVE ON/OFF = MALE DISCONNECT SWITCH = STUD CONNECTION PILOT BATTERY HOLDER PRG BUTTON ROOM AIR BLOWER ACCENT POWER LIGHT** CORD ** Accent light not available for MPI27 or MPI27CD Figure 27 - Electronic Control Schematic - Models MPI27 / MPI27CD CAUTION: Label all wires prior to disconnection when servicing controls. -
Page 28: Maintenance And Servicing
o Check that the area around the insert is kept clear and is free of MAINTENANCE AND SERVICING combustible materials, gasoline and other flammable vapors and liquids. WARNING 2. The viewing glass should be cleaned periodically (see Glass Main- tenance). Turn off gas and electrical power to the fireplace and allow it to cool before cleaning or servicing the appliance. -
Page 29: Door Removal
Glass Door WARNING • Do not attempt to substitute the materials used on these doors, or replace cracked or broken glass. See Detail A SEE DETAIL A • Handle this glass with extreme care! Glass is susceptible to damage – Do not scratch or handle roughly while reinstalling the glass door frame. -
Page 30: Glass Maintenance
Glass Door Cleaning and Maintenance Cleaning: Do not remove or clean the glass door when hot. When cool, the glass may be cleaned with a clean, soft cloth and a household glass cleaner. For cleaning white condensation from the interior glass, use a gas fireplace glass cleaner available from your dealer. -
Page 31: Replacing A Damaged Barrier
Replacing A Damaged Barrier • If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. • For models MPI27 and MPI27CD, use with barrier part number J4343. Follow installation instructions. Removing The Damaged Barrier (refer to Figure 32) 1. -
Page 32: Troubleshooting
TROUBLESHOOTING NOTE: When troubleshooting the gas control system, be sure the external gas shut off valve, located at the gas supply inlet is in the “ON” position. IMPORTANT: Call your gas supplier or plumber for additional help with any gas control problem. Valve system troubleshooting should only be accomplished by a qualified service technician. -
Page 33: Replacement Parts
Contact an IHP dealer to obtain any of these parts. REPLACEMENT PARTS - MPI27 / MPI27CD WARNING Item # Cat. No. Description H9174 Fire Box Door Assembly with Glass Never use substitute materials. Use of non-approved Log Cassette Assy NG 30,000 BTU H9164 parts can result in poor performance and safety haz- (for LP add Kit H9163) - MPI27 only... -
Page 34: Replacement Parts
REPLACEMENT PARTS - MPI27 / MPI27CD NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. -
Page 35: Accessories
ACCESSORIES - MPI27 / MPI27CD Surround Kits (required accessory) Cat. No. Model Description H9131 FP2637-MPDVI27 3 Sided Surround, 37"W x 26"H Product Reference Information H9132 FP2641-MPDVI27 3 Sided Surround, 41"W x 26"H Cat. No. Description Ship. Weight Ship. Volume H9133 FP3037-MPDVI27 3 Sided Surround, 37"W x 30"H MPI27, Madison Park™... -
Page 36: Insert Labels
SAFETY / LISTING LABEL - MPI27 SERIAL SERIAL Le numéro de série est indiqué dans la MODÈLE Madison Park™ 27 MODEL Madison Park™ 27 MPI27 section anglophone de cette étiquette FABRIQUÉ PAR: MANUFACTURED BY: INNOVATIVE HEARTH PRODUCTS INNOVATIVE HEARTH PRODUCTS 1502 14TH ST NW Rapport nº... - Page 37 SAFETY / LISTING LABEL - MPI27CD SERIAL SERIAL Le numéro de série est indiqué dans la MODÈLE Madison Park™ 27 CD MODEL Madison Park™ 27 CD MPI27CD section anglophone de cette étiquette FABRIQUÉ PAR: MANUFACTURED BY: INNOVATIVE HEARTH PRODUCTS INNOVATIVE HEARTH PRODUCTS 1502 14TH ST NW Report No.
- Page 38 LIGHTING LABEL - MPI27 / MPI27CD POUR PLUS DE SÉCURITÉ LIRE AVANT DE METTRE EN MARCHE FOR YOUR SAFETY READ BEFORE OPERATING AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice risque WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing de déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort.
-
Page 39: Warranty
THE WARRANTY Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your IronStrike™ brand gas fireplace or insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body and firebox carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. -
Page 40: Product Reference Information
Normally, all parts should be ordered through your IHP distributor or Nashville, TN 37210 dealer. Parts will be shipped at prevailing prices at time of order. visit us at IronStrike.us.com When ordering repair parts, always give the following information: Model Number _____________________________________________________...
