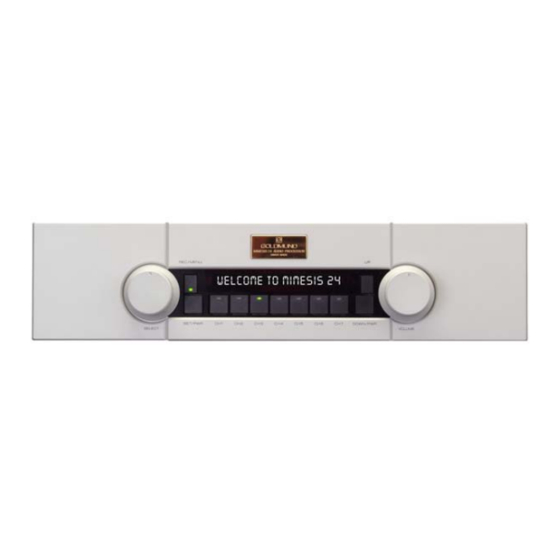

- Page 1 USER MANUAL MIMESIS 24 Goldmund NIVERSAL REAMPLIFIER...
- Page 2 - networking and music distribution. The guiding principle at Goldmund is to produce a precise sound with the least possible loss of quality through the different stages. Goldmund will never adopt a technology before it is sufficiently developed to satisfy the high quality standards we set.
- Page 3 GOLDMUND MIMESIS 24 is quite simple and convenient. GOLDMUND MIMESIS 24 Universal Preamplifier IMPORTANT PLEASE DO NOT CONNECT ANY CABLES OR MOVE ANY PART BEFORE READING THE FOLLOWING INSTRUCTIONS. User manual - GOLDMUND MIMESIS 24 UNIVERSAL PREAMPLIFIER...
-
Page 4: Table Of Contents
Inputs and tape configuration Digital Outputs Remote control Front panel controls Power supply Grounding Size and weight Warranty SCHEMA User manual - GOLDMUND MIMESIS 24 UNIVERSAL PREAMPLIFIER p 7-9 p 8-9 p 10-15 p 10 p 10 p 11 p 11 p 12... -
Page 5: Preliminaries P
For exacting technicians, musicians, and all amateurs who demand the very best in musical reproduction, we strongly recommend the use of top quality amplifiers with a digital input, since most of the digital signal performance delivered by the Mimesis 24 can be deteriorated by using lower quality amplifier or D/A converters. -
Page 6: Setting Up The Mimesis
Unpack carefully the above-mentioned parts. Keep the whole package for future use. ATTENTION IF YOU NEED TO RETURN THE MIMESIS 24 TO THE FACTORY OR TO YOUR LOCAL REPRESENTATIVE FOR A WARRANTY REPAIR, PLEASE NOTE THAT IT MUST BE REPACKED IN THE ORIGINAL PACKAGING. -
Page 7: Choice Of The Mimesis 24 Location
Preamplifier is isolated from vibrations of mechanical components, including the CD transport itself. You must also be careful to locate your Mimesis 24 in a very well ventilated location. When powered on, the Mimesis 24, as all high quality electronic equipment, generates a significant amount of heat, which has to be evacuated by natural ventilation. -
Page 8: Power Supply
Plug the AC power cord to the power supply and into a wall socket. The Preamplifier is and remains on power as soon as the power switch located on the back panel is turned on. For best sonic results, Goldmund recommends to leave the unit powered on permanently. -
Page 9: Computer Configurator P
F I R S T I N S TA L L AT I O N A N D C O N N E C T I O N S COMPUTER CONFIGURATOR The Mimesis 24 is so versatile that the configurations in which it can be used are limitless. In order to set the unit to work in your own configuration, a Windows configurator is available on our web site. - Page 10 The Db9 connector available on the power supply module on the back panel of the Mimesis 24 is used to link the Mimesis 24 to an external computer or control unit in order to control all the functions of the Preamplifier.
-
Page 11: Standby Function P
To activate one of the 7 digital inputs, click twice on the channel you want to listen to. After you have selected one of the digital inputs, the Mimesis 24 will be in the “digital input” mode and the next channel you will click once will again select a digital input. -
Page 12: Input Source Selection For Other Zones P
To activate one of the 7 digital inputs, click twice on the channel you want to listen to. After you have selected one of the digital inputs, the Mimesis 24 will be in the “digital input” mode and the next channel you will click once will again select a digital input. If you want to select an analog input you will have once again to click twice on the needed channel key to return in the analog mode. -
Page 13: Output Volume Adjustment P
Then, the left knob allows you to browse the possible modes existing for the source you have selected. When you reach the mode you want to select, press the “MODE” key to select it. The playback will be changed accordingly. User manual - GOLDMUND MIMESIS 24 UNIVERSAL PREAMPLIFIER | P 12... -
Page 14: Operating The Mimesis
F R O N T PA N E L K E Y B O A R D F U N C T I O N S - The Setup Menu Functions: Your Mimesis 24 may be personalized thanks to the Menu Functions. Your personal choice for each Menu Function is kept in machine memory even if the machine is disconnected from power. -
Page 15: Remote Control
The Mute circuit can also be controlled using the remote. To mute or de-mute the Mimesis 24 with the remote, press the "MUTE/STBY" key briefly. To put the Mimesis 24 in Standby mode, press the "MUTE/STBY" key continuously until the Mimesis 24 goes to Standby, indicated by the Standby Led on the front panel. -
Page 16: Cleaning
• IN2 led on: Left channel • IN6 led on: Right channel The Mimesis 24 can be controlled by any RC5 coded remote-control emitter. The codes are available upon request. Most of the programmable transmitter units available have the capabilities to drive the Mimesis 24 as a standard digital preamplifier, for all the specified functions. -
Page 17: Technical Data
• RC5 Standard remote system compatible with standard programmable remote control transmitter (codes available on request). • Volume and balance control. • Selection of the source and the recorded source. • Remote Muting. User manual - GOLDMUND MIMESIS 24 UNIVERSAL PREAMPLIFIER | P 16... -
Page 18: Front Panel Controls P
S I Z E A N D W E I G H T • 44 cm W x 43 cm D x 10.7 cm H. • 20 kg. WA R R A N T Y • 3 years parts and labor. User manual - GOLDMUND MIMESIS 24 UNIVERSAL PREAMPLIFIER | P 17... -
Page 19: Schema P
S C H E M A F r o n t P a n e l MIMESIS 24 GOLDMUND UNIVERSAL PREAMPLIFIER P 18 User manual - GOLDMUND MIMESIS 24 UNIVERSAL PREAMPLIFIER |... - Page 20 S C H E M A B a c k P a n e l MIMESIS 24 GOLDMUND UNIVERSAL PREAMPLIFIER P 19 User manual - GOLDMUND MIMESIS 24 UNIVERSAL PREAMPLIFIER |...
