Download Print this page

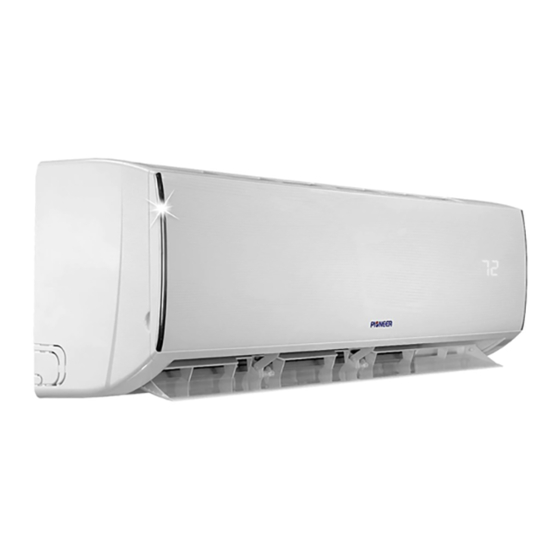

Pioneer WYQ Series User Manual

Inverter split-type room air conditioner
Hide thumbs

Advertisement

Quick Links

The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
product improvement. Consult with the sales agency or manufacturer for details.
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
this manual carefully and keep it for future reference.
INVERTER SPLIT-TYPE
ROOM AIR CONDITIONER
PIONEER WYQ SERIES ULTRA HIGH SEER HEAT PUMPS
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
CS159U-BP11M
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
202000192485
20140314
20140314
20140314
20140314
20140314
20140314
20140314
20140314
20140314
20140314
20140314
20140314
20140314
Read This Manual
Keep this manual where the operator can easily
find them.Inside you will find many helpful hints
on how to use and maintain your air conditioner
properly. Just a little preventative care on your
part can save you a great deal of time and money
over the life of your air conditioner. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.

Advertisement

loading

  Related Manuals for Pioneer WYQ Series

  Summary of Contents for Pioneer WYQ Series

  • Page 1 INVERTER SPLIT-TYPE ROOM AIR CONDITIONER PIONEER WYQ SERIES ULTRA HIGH SEER HEAT PUMPS Read This Manual The design and specifications are subject to change without prior notice for The design and specifications are subject to change without prior notice for...
  • Page 2: Table Of Contents

    CONTENTS When using this air conditioner in the European countries, please read the following information: SAFETY PRECAUTIONS Warning .............................3 This appliance can be used by children aged from 8 years and above and persons with Caution ............................4 reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 3: Safety Precautions Information

    SAFETY PRECAUTIONS SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions CAUTION must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury.
  • Page 4: Names Of Parts

    NAMES OF PARTS OPERATING INSTRUCTIONS Indoor unit Special functions Names of parts Refrigerant Leakage Detection Indoor unit With this new technology, the dipsplay area will appear EC and the indication lamps continue flashing when the outdoor unit detects refrigerant leakage. 1.
  • Page 5: Operating Temperature

    OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS NOTE: This manual does not include Remote Controller Operations, see the Airflow direction control <<Remote Controller Instruction>> packed with the unit for details. Adjust the air flow direction properly otherwise it Operating temperature might cause discomfort or cause uneven room temperatures.
  • Page 6: How The Air Conditioner Works

    OPERATING INSTRUCTIONS CARE AND MAINTENANCE How the air conditioner works Care and Maintenance SLEEP operation AUTO operation 7 hours timer off Before mainatenance When you set the air conditioner in AUTO mode, it will Turn the system off before cleaning. To clean, wipe with automatically select cooling, heating(cooling/heating models only), or fan only operation depending on set a soft, dry cloth.
  • Page 7: Replacement Of The Air Filter And Air Freshening Filter

    CARE AND MAINTENANCE TROUBLESHOOTING TIPS Normal function of the air conditioner 4. Remove the Air Freshening Filters from its supporting frame (The solution to disassemble may differ from The following events may occur during normal operation. each other for different filters. Refer to Clean the air freshening filter at least once a month, 1.
  • Page 8: Troubleshooting Guide

    TROUBLESHOOTING TIPS TROUBLESHOOTING TIPS Troubleshooting guide 7. The air conditioner runs Anti-mildew function after turning off the unit. When turning off the unit under COOL(AUTO COOL, FORCED COOL) and DRY mode, the air The unit may stop operation or continue conditioner will run function for 7-10 minutes, if turns off on HEAT mode, the unit will...
