Fuses

• If a fuse blows, investigate the cause and repair it before replacing the fuse.
Always replace a fuse with the one of the correct rating.
NOTE
• Fuses are provided to protect electrical circuit from abnormal current caused by
sort circuit or a damage in an electrical component. If an electricity-related problem
occurs, inspect the related fuse.
Fuses
3670M-0506-040E
Fuses/
Space/
Space/
Space/
Fuel Pump,
Indicators/
Pompe d'essence, Indicateurs/
Anzeige, Kraftstoffpumpe/
Pompa carburante,
Spia di controllo
Lights, Horns/
Phares, Klaxon/
Licht, Hupe/
Fari, Clacson
Auxiliary Power/
Alimentation
Additionale/Ersatz/
Alimentazione Ausiliaria
3670M-0506-030E
Maintenance
Fusibles/Sicherungen/Fusibili
Libre/Frei/Libero
Libre/Frei/Libero
5A
Libre/Frei/Libero
5A
10A
10A 10A
3670 5109 001
Fuses

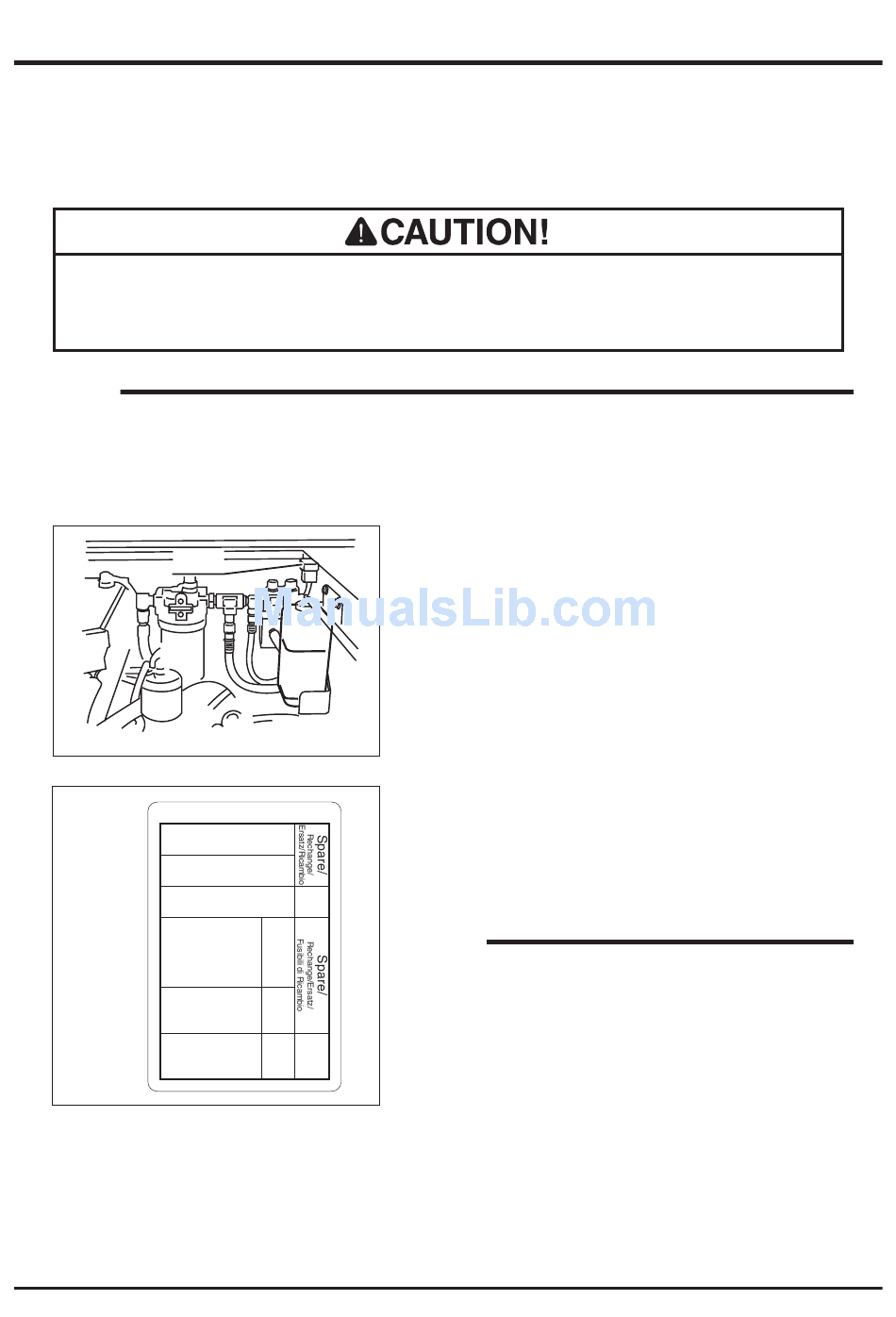

1. Open engine hood.
2. Open fuse housing lid.
3. Locate the blown fuse and replace it with a
new one of the correct rating.
4. Put the lid back in place.
5. Close engine hood.
NOTE
• Fuel Pump, Indicators: 5A
• Lights, Horn: 10A
• Auxiliary Power: 10A
• Spare: 5A
• Spare: 5A
