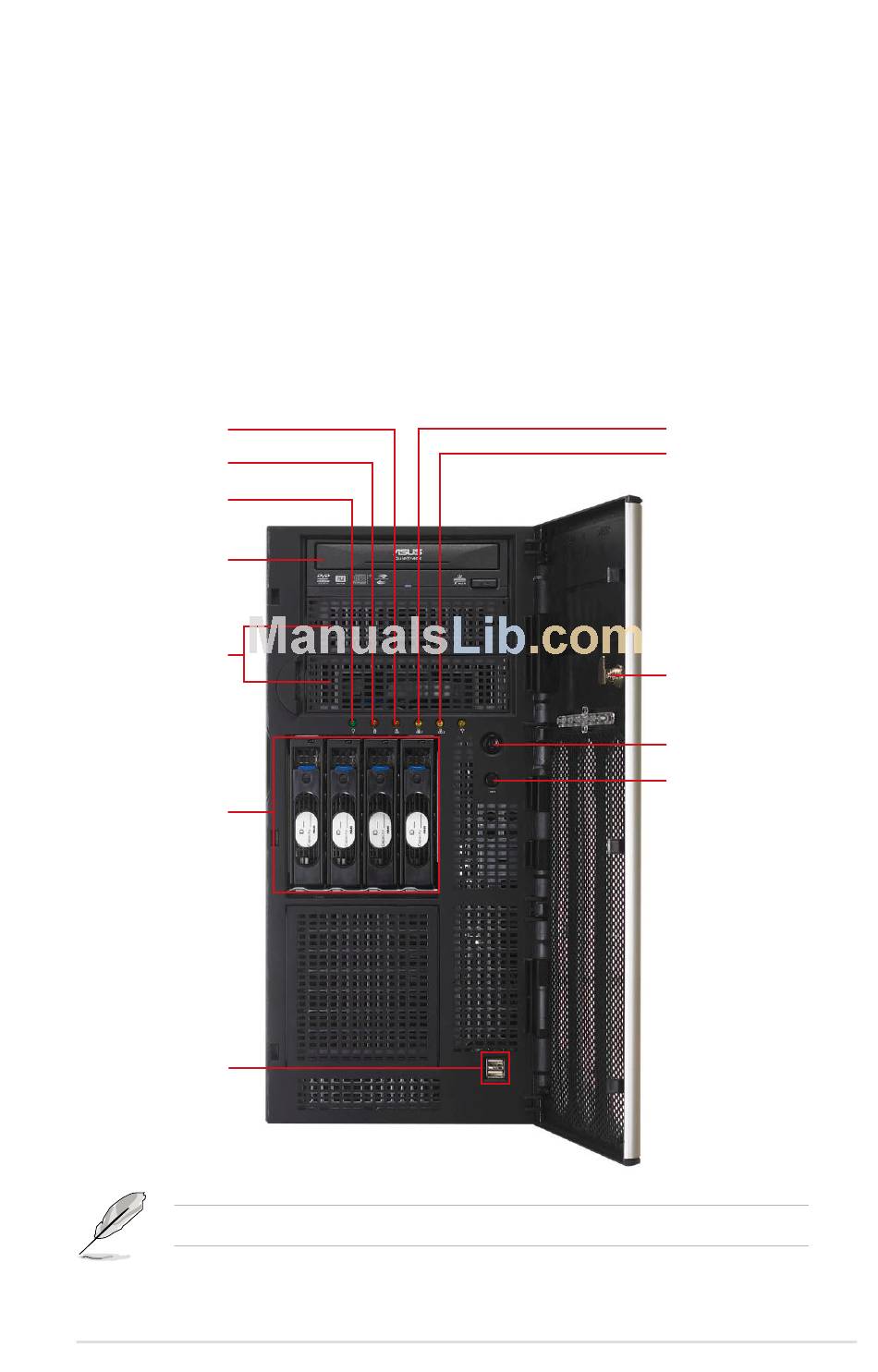

Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, optical drive, and two USB
ports are located on the front panel.
The drive bays, power and reset buttons, LED indicators, CD/DVD-ROM drive,
floppy drive, and USB 2.0 ports are located on the front panel. For future
installation of 5.25-inch devices, two drive bays are available.
1.4.1
Four Hot-Swap HDD Devices
Message LED
HDD access LED
Power LED
Optical drive
Empty 5.25-inch
bays
4-bay HDD cage
USB 2.0 ports
Refer to section 1.7.1 Front panel LEDs for the LED descriptions.
ASUS TS500-E5
LAN1 LED
LAN2 LED
Security lock
Power button
Reset button
