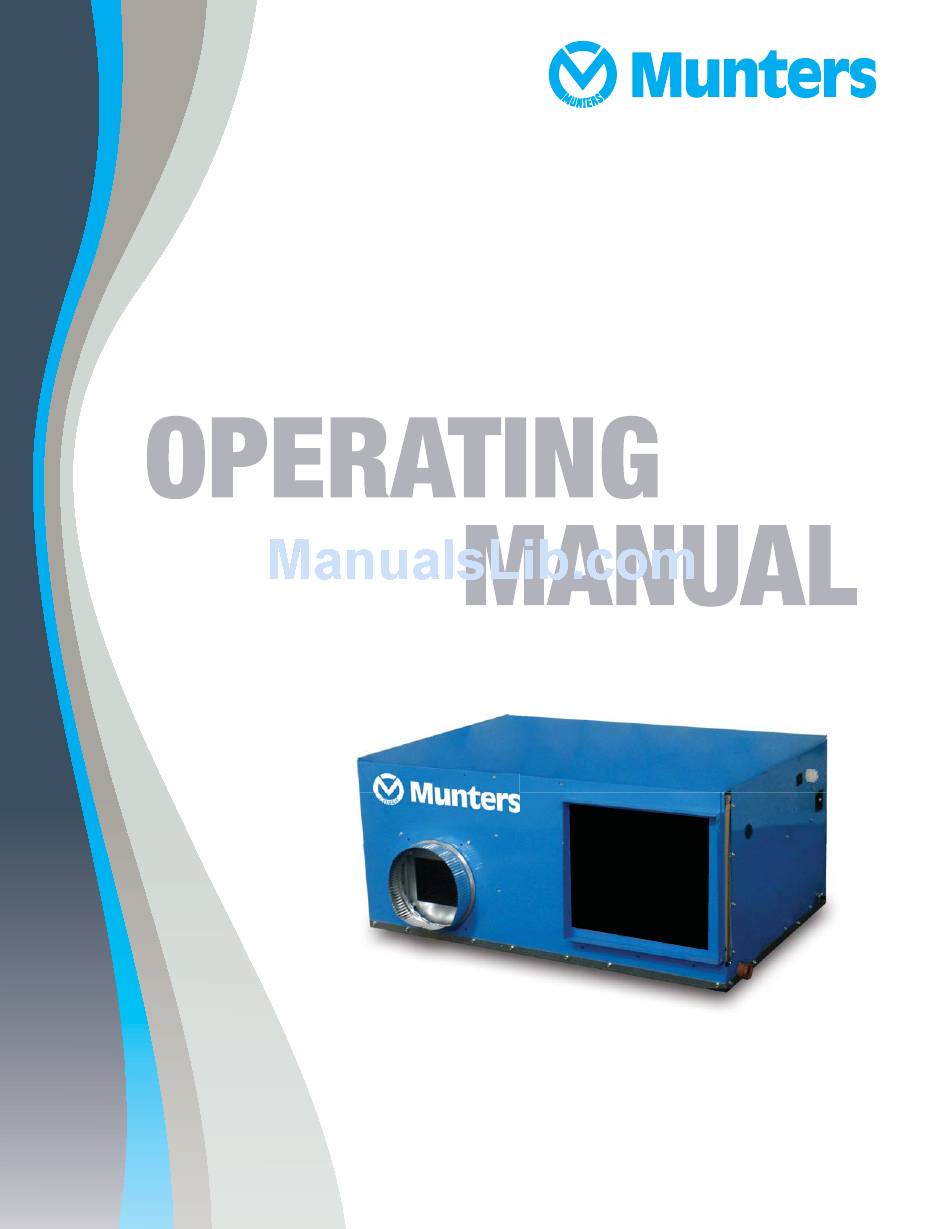

- Page 1 DRYCOOL ™ Warranty Safety Installation Operation Maintenance Residential and Light Commercial Desiccant Dehumidifier November 2010...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Introduction ..............................1 1.1. Technical Description ..............................1 1.2. Desiccant Wheel Operating Principle........................2 1.3. Intended Application..............................3 1.4. Specifications ................................4 1.5. Limited Warranty ...............................5 Safety ................................6 Installation ..............................7 3.1. Pre-Installation Requirements ...........................7 3.2. Pre Checks and Inspection before Installation......................7 3.3. -
Page 3: Introduction
It next enters the evaporator coil where the refrigerant absorbs heat from the incoming air. The compressor then draws the cool refrigerant gas and compresses it to a high pressure and temperature to repeat the process. DryCool HD Operator and Maintenance Manual P00960167-1... -
Page 4: Desiccant Wheel Operating Principle
To avoid the problems often caused by moisture and create a comfortable environment, a dehumidifier is required or necessary to maintain relative humidity between 40-50% throughout the environment. Only supplemental dehumidification provides indoor humidity control regardless of air conditioner operation or outside moisture conditions. DryCool HD Operator and Maintenance Manual P00960167-1... -
Page 5: Intended Application
The DRYCOOL™ HD Dehumidifier is intended for installation in spaces that experience short or long term high humidity conditions. The DRYCOOL HD is not suitable for pool areas. Use of the unit in pool areas will void warranty. In order to efficiently control humidity levels, the area in which the dehumidifier is to be placed must be free of water intrusion or excessive fresh air infiltration. -
Page 6: Specifications
* i.e. reactivation and process air inlets are externally ducted and connected to “normal” non-attic space ** i.e. reactivation air comes from the space Table 1: DryCool™ HD Dehumidifier Specifications 1.4.2. DryCool HD Performance and Psychometric Advantage Entering at 50% RH Entering at 60% RH Entering Temperature ºF Dry Bulb Temperature °F... -
Page 7: Limited Warranty
WARRANTY FOR MUNTERS DEHUMIDIFICATION EQUIPMENT, SYSTEMS AND PARTS Your Munters DRYCOOL™ HD Dehumidifier is expressly warranted for a period of one (1) year from date of purchase. This warranty extends to the original end user and may not be assigned to or transferred. Munters warrants that for one (1) year after the date of original purchase the DRYCOOL™... -
Page 8: Safety
Munters is concerned about the safety of all who use or services the DryCool™ HD desiccant dehumidifier unit. There are parts inside the unit that can be dangerous if an untrained person tries to service the unit. Throughout this manual, we have pointed out hazards that may occur in its. -
Page 9: Installation
Simple Slow Time Weighing and Slow Time Weighing Sound Level Equivalent charts for the Drycool HD™ can be viewed in the Appendix. Unit sound level measurements were taken with system operating in the Airlab at Munters/Amesbury. Background sound measurements were taken before and after testing and represent the ambient noise levels at the time the system was sound level tested. - Page 10 The DRYCOOL™ HD plugs into a common grounded outlet on a 15 Amp circuit. It draws between 6 and 7 Amps under normal operating conditions. If used in a wet area, a ground fault interrupter protected circuit is required. DryCool HD Operator and Maintenance Manual P00960167-1...
-
Page 11: Ducting For Dehumidification
Effective dehumidification may require ducting be branched to isolated, stagnant areas. Use 8" or larger diameter branch ducting to each of two or three areas; use 4" or larger to each of four or more areas. DryCool HD Operator and Maintenance Manual P00960167-1... - Page 12 The DRYCOOL™ HD is designed to move 250 cfm. An insulated 4"diameter duct is generally sufficient to provide up to 75 cfm of outside air. Remaining 175 cfm of return air can be mixed with this fresh air and ducted into the supply intake of the DRYCOOL™ HD. DryCool HD Operator and Maintenance Manual P00960167-1...
-
Page 13: Installation In Basement Or Crawl Space With Existing Forced Air Hvac
Duct the other side of the tee to the air supply of existing HVAC system. Connect 8" ducts to the reactivation inlet and outlet to supply ambient air for reactivation and to expel moist air outside the basement. DryCool HD Operator and Maintenance Manual P00960167-1... -
Page 14: Installation In An Attic With Existing Forced Air Hvac
When large spaces are dehumidified with a unit, areas of low vapor pressure are created and will induce water vapor movement from other connected open rooms without the need for ducting. DryCool HD Operator and Maintenance Manual P00960167-1... -
Page 15: Humidistat Installation Requirements
Be sure to consult the electrical schematic in this manual or the front panel of the unit before making the control connections. Please NOTE: Humidistat is not included. If purchased from Munters the humidistat will be supplied loose with dehumidifier. -
Page 16: Condensate Removal
A trap in the drain line is strongly recommended. 1. The unit requires a condensation drain that should be connected to a ¾” female pipe thread adaptor on the front of the DryCool HD™. Install a proper P-trap in drain line and connect outlet to a suitable drain. - Page 17 Plug power supply into the outlet on unit labeled “UV Light”. Power can now be reconnected to unit. 24” Approx. 4” 7.5” 12.5” POWER PACK 16.5” 10” DRAIN POWER CORD Figure 7: UVC Power Pack Installation DryCool HD Operator and Maintenance Manual P00960167-1...
-
Page 18: Optional Active High Efficiency Electronic Filter
3.10. Optional Active High Efficiency Electronic Filter An optional active electronic high efficiency air filter is available for the DryCool HD. This filter is rater 90- 95% efficient by ASHRAE Dust Spot Test Method 52-76. This filter is much more efficient than the standard air filter and is able to catch much smaller particles that can aggravate allergies. -
Page 19: Operating Instructions
The DRYCOOL™ HD can be equipped with various accessories to enhance its operation. A remote humidistat must be used with the unit. Please NOTE: Humidistat is not included. If purchased from Munters the humidistat will be supplied loose with dehumidifier. -
Page 20: Maintenance And Service
Because of variations in humidity and temperature, the new filter/media pad may make a slight snapping sound when first installed. This is normal and should stop and return to normal within 24 hours of operation. DryCool HD Operator and Maintenance Manual P00960167-1... -
Page 21: Germicidal Uvc Lights
Obstruction prevents fan impeller rotation. Defective fan. Defective fan relay. Evaporator coil frosted continuously, low dehumidifying capacity. Dirty air filter(s) or air flow restricted. Low refrigerant charge. Dirty evaporator coil DryCool HD Operator and Maintenance Manual P00960167-1... -
Page 22: Recommended Maintenance Schedule
Only qualified service people should service this unit. 5.6. Recommended Maintenance Schedule The following table lists recommended maintenance schedules. For detailed instructions on each procedure consult Munters or the appropriate supplier for that part. 5.6.1. Annual Maintenance Schedule Check This... -
Page 23: Appendix: Unit Specific Information
Appendix: Unit Specific Information 6. Appendix: Unit Specific Information Wiring Diagram Sound Level Measurements Fan Curves Dimensional Drawing Munters Corporation Tel: (800) 843-5360 E-mail: dhinfo@munters.com www.munters.us DryCool HD Operator and Maintenance Manual P00960167-1... - Page 24 Appendix: Unit Specific Information Figure 9. Wiring Diagram Pictorial DryCool HD Operator and Maintenance Manual P00960167-1...
- Page 25 Average Sound Levels with Background Noise Eliminated Frequency Level Broadband 64.17 Broadband 53.57 62.24 52.79 57.86 50.46 50.20 1000 49.85 2000 44.69 4000 38.82 8000 28.95 Table 2: Average Sound Levels with Background Noise Levels Eliminated DryCool HD Operator and Maintenance Manual P00960167-1...
- Page 26 Appendix: Unit Specific Information Munters DryCool HD drier testing and analysis for measurement taken on process side of system. Available external Sp measured at 60Hz, 81 deg F Tro. Munters Drycool HD Process Side Process Available Ext Sp Airflow "wg...
- Page 27 Appendix: Unit Specific Information Munters DryCool HD drier testing and analysis for measurement taken on react side of system. Available external Sp measured at 60Hz, 81 deg F Tro. Munters Drycool HD React Side React Available Ext Sp Airflow "wg...
- Page 28 Appendix: Unit Specific Information Figure 10. Dimensional Drawing DryCool HD Operator and Maintenance Manual P00960167-1...
- Page 29 Appendix: Unit Specific Information DryCool HD Operator and Maintenance Manual P00960167-1...
