Electric barbecue

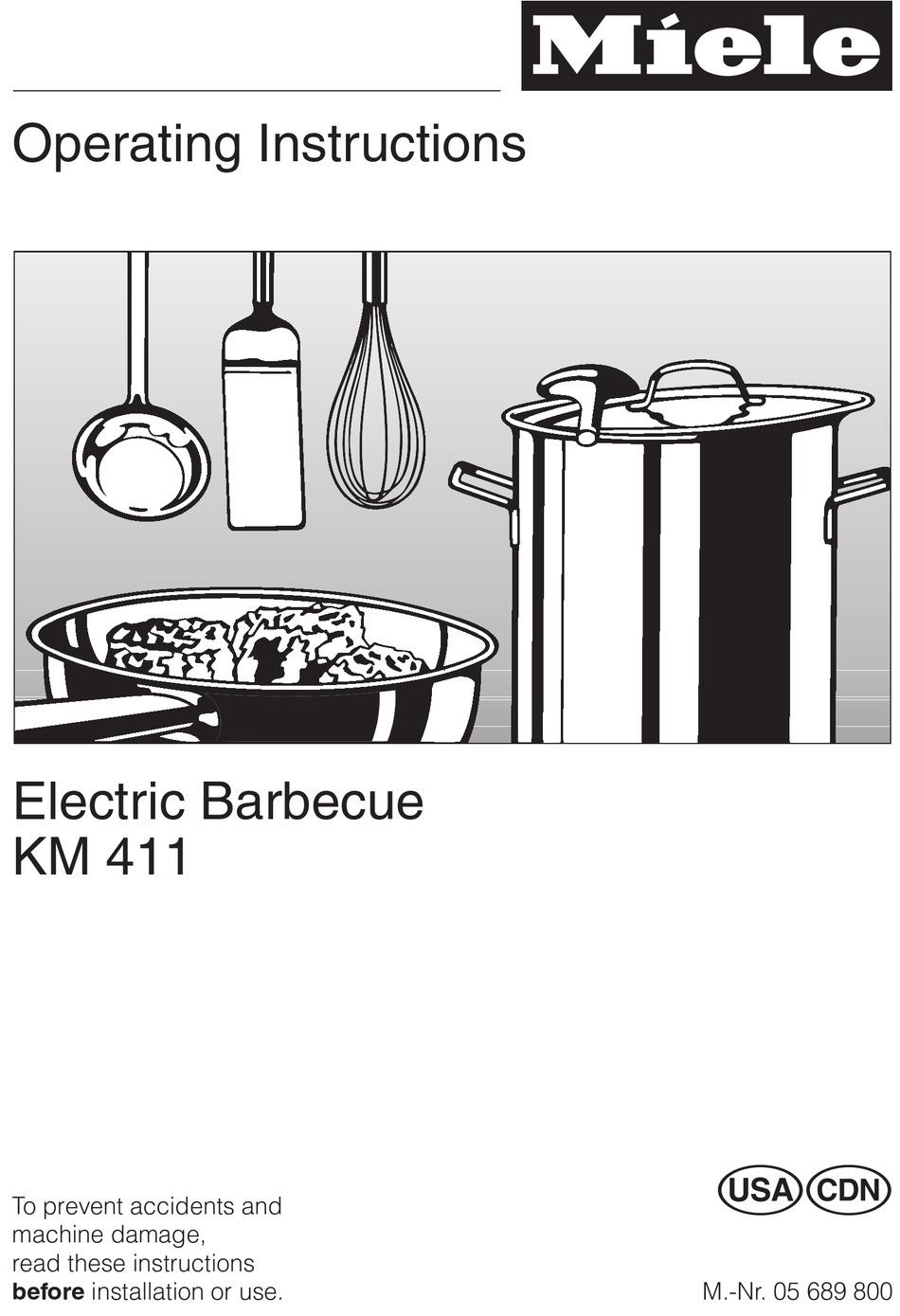

Operating Instructions

Electric Barbecue
KM 411
To prevent accidents and
machine damage,
read these instructions
installation or use.
M.-Nr. 05 689 800



  Related Manuals for Miele KM 411

  Summary of Contents for Miele KM 411

  • Page 1: Operating Instructions

    Operating Instructions Electric Barbecue KM 411 To prevent accidents and machine damage, read these instructions installation or use. M.-Nr. 05 689 800...
  • Page 2 Disposal of packing materials ......... 6 Disposal of an old appliance .
  • Page 3 However, under certain circumstances it may be possible for an installation in these applications. Please contact the nearest Miele Dealer or the Miele Technical Service Department with specific requirements.
  • Page 4 Do not use any type of aluminium products including pots, pans, and foil on the grill. Aluminium will cause overheating and may damage the grill grate. Do not drop anything on the ceramic surface. Even a light object could cause damage in certain circumstances.
  • Page 5 "tripping" the circuit breaker. Contact the Miele Technical Service Department. Do not use the appliance until it has been repaired. Ensure power is not supplied to the appliance while repair work is being carried out.
  • Page 6 The cardboard box and packing materials are environmentally friendly for disposal. Please recycle. Old appliances contain materials that can be recycled. Please contact your local recycling center about the possibility of recycling these materials. Before discarding an old appliance, remove the power cord and any doors to prevent hazards.
  • Page 7 a Grate b Heating element (can be raised up) c Lava rocks d Lava rock container e Operating indicator lamp f Drain valve g Control knob h Water trough i Power cord...
  • Page 8 Before using for the first time clean the water trough and the grate with a solution of hot water and liquid dish soap. Dry thoroughly with a soft cloth (see "Cleaning and Care"). Clean all other surfaces with a damp cloth only, and then wipe dry.
  • Page 9 The grill can be used with or without lava rocks. When cooking without lava rocks, rising steam will keep the food moist. When using lava rocks, cooking results will be similar to barbecuing. ^ Remove the grate, raise the heating element, and remove the lava rock container.
  • Page 10 The grill can be turned on or off by turning the control knob either clockwise or counterclockwise. The operating indicator lamp which is left of the control knob will illuminate when the appliance is switched on. It goes off after the appliance is switched off.
  • Page 11 ^ Preheat the grill by setting it to "12" and allowing it to run for approximately 5 minutes. ^ Grill meat for a few minutes at the highest setting to sear the outside and seal in the juices. ^ After searing, set the control knob to "9"...
  • Page 12 An overheating protection switch automatically turns off the appliance if the water level drops too low. ^ Add water to the trough. When the appliance has cooled down and the grill element turns itself back on you can continue grilling. ^ Turn off the grill.
  • Page 13 Under no circumstances use a steam cleaner to clean this appliance. Pressurized steam could cause permanent damage to the surface and to components for which the manufacturer cannot accept responsibility. Never use strong cleaners e.g. oven sprays, stain or rust removers. Scouring pads and abrasive cleaning agents should only be used on the heating element.
  • Page 14 ^ Let the water cool to a safe temper- ature to prevent burns. ^ Place a container of a suitable size (a metal pot for example) under the drain valve. Slowly open the drain valve, f, by turning it counterclockwise, a. ^ Close the valve after all the water has drained by turning the valve clockwise, b, until the valve can turn...
  • Page 15 Add water to the trough. Refer to section "Overheating protection". – the electrical circuit has blown a fuse or "tripped" the circuit breaker. If power cannot be restored, it may be necessary to call either an electrician or the Miele Technical Service Dept.
  • Page 16 In the event of a fault which you cannot correct, contact the Miele Technical Service Department U 1-800-999-1360 l 1-800-565-6435 When contacting the Technical Service Department, please quote the model and serial number of your appliance. These are shown on the data plate.
  • Page 20 Alteration rights reserved / 1904 M.-Nr. 05 689 800 / 01 This paper is made from cellulose bleached without the use of chlorine.
