Exploded View - IKEA IRIBT26WA Service Manual

Hide thumbs
Table of Contents

Advertisement

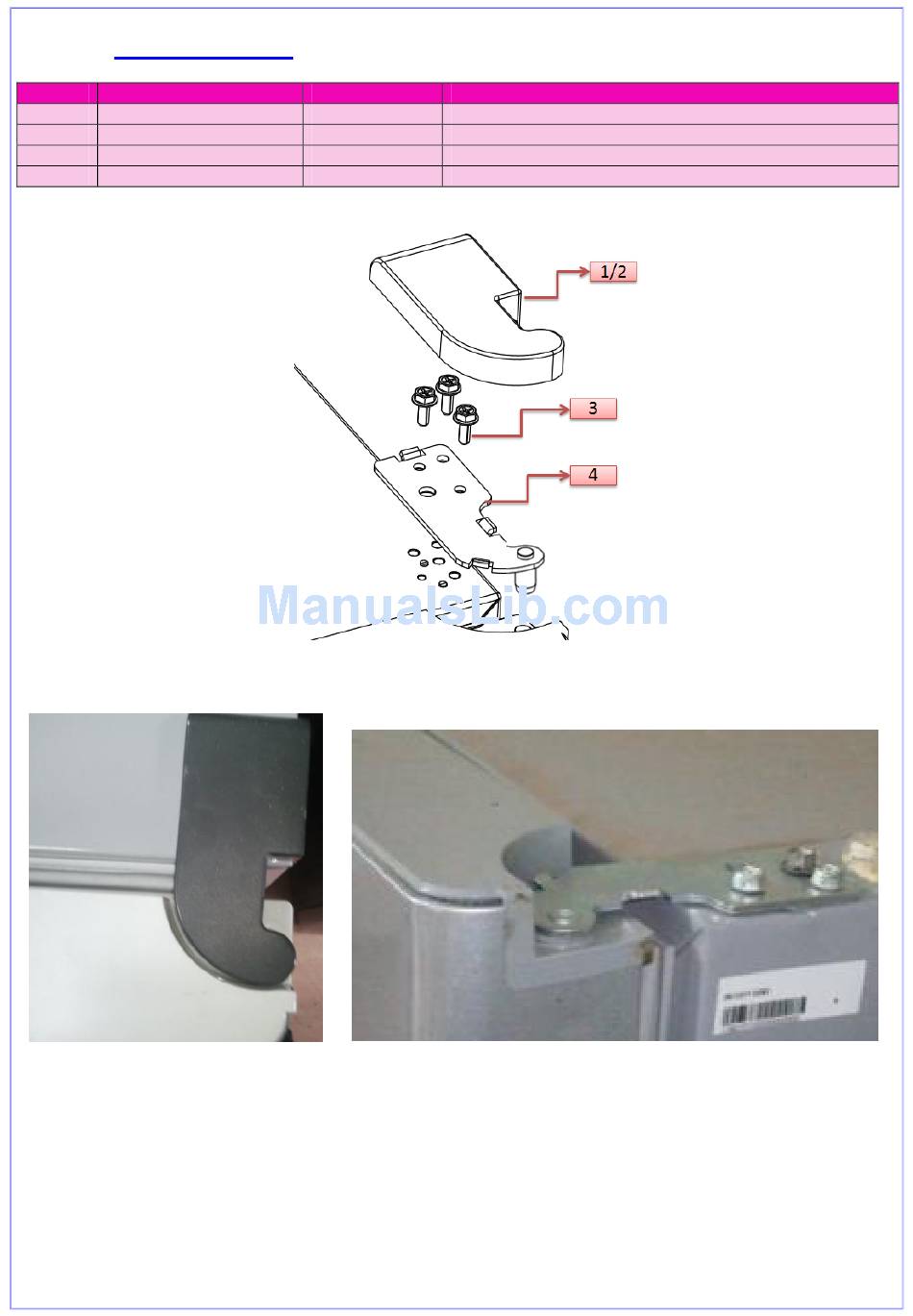

7. Exploded View:-

SR NO
LOCATION
1
CABINAT EXTERIOR
2
CABINAT EXTERIOR
3
CABINAT EXTERIOR
4
CABINAT EXTERIOR
PART NO
W10507748
W10463885
W10418501
W10444351
17
DISCRIPTION
TOP HINGE COVER NEO-DLX WHITE
TOP HINGE COVER NEO-DLX CHARCOAL GRAY
SCREW- TRILOBULAR M6X1.0 HEX HEAD
HINGE TOP ASSY- DLX
