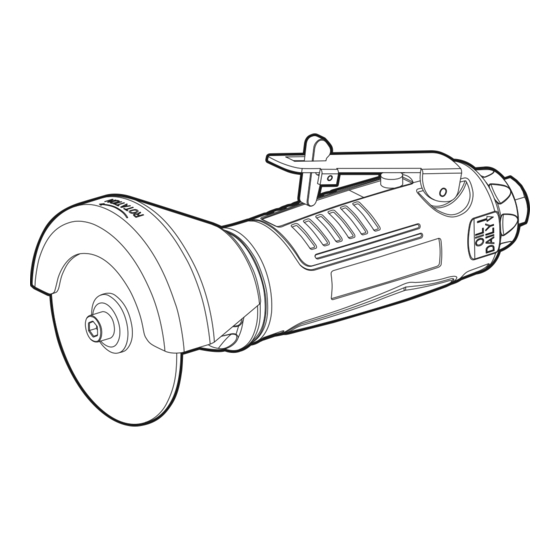

- Page 1 RACO-G AIR CUTTING OFF GRINDER OPERATOR'S MANUAL ORIGINAL INSTRUCTIONS...
- Page 2 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.
- Page 3 DESCRIPTION 1. Guard 4. Lock washer nut 7. Air inlet 10. Wrench 2. Trigger lock pin 5. Lock washer 8. Nitto style coupler 11. Hex key 3. Trigger 6. Cutting off wheel 9. Collet 12. Adjustment knob Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6...
-
Page 4: General Safety Rules
ENTANGLEMENT HAZARDS GENERAL SAFETY RULES Choking, scalping and/or lacerations can occur if loose ■ For multiple hazards, read and understand the safety clothing, personal jewelry, neck wear, hair or gloves are instructions before installing, operating, repairing, not kept away from the tool and accessories. maintaining, changing accessories on, or working near, the grinder. -
Page 5: Accessory Hazards
comfortable posture while maintaining secure footing ■ Proceed with care in unfamiliar surroundings. There and avoiding awkward or off-balanced postures. The can be hidden hazards, such as electricity or other operator should change posture during extended utility lines. tasks; this can help avoid discomfort and fatigue. ■... -
Page 6: Vibration Hazards
■ If the grinder has a silencer, always ensure that it is in ■ Whenever universal twist couplings (claw couplings) place and in good working order whenever the grinder are used, lock-pins shall be installed and whipcheck is being operated. safety cables shall be used to safeguard against possible hose-to-tool and hose-to-hose connection ■... -
Page 7: Residual Risks
interruption of the air supply. Vibration value 1.67 m/s ■ Disconnect the product from the air supply before Uncertainty 0.26 m/s changing accessories or making adjustments. ■ Required air pressure of 6.3 bar (90 psi), and an air flow according to specifications. Noise emission values... -
Page 8: Loading And Operation
Disconnect tool from the air supply before attempting IMPORTANT! repair or adjustment. When replacing O-rings or cylinder, See Figure 7. lubricate with air tool oil before assembly. If a filter/regulator/lubricator is not installed on the air PROBLEM: Tool runs at normal speed but fails under system, air operated tools should be lubricated at least load. - Page 9 PROBLEM: Tool will not shut off. POSSIBLE CAUSE ■ ‘O’ rings throttle valve is dislodged from seat inlet valve. REMEDY ■ Replace the ‘O’ ring. NOTE: Repairs should be carried out by a qualified person.
-
Page 10: Parts List
PARTS LIST Description Description Description Description Air inlet valve Screw cap Pin 2 x 6 Support seat Muffle cover Trigger Cylinder Lock ring Rotor Cover O-ring 4.8 x 1.6 Spring Rotor blade Front cover O-ring 5.6 x 2 Trigger lock pin Washer Washer Spring... - Page 11 Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster Road Doncaster, VIC 3108, Australia Techtronic Industries New Zealand Ltd. 18-26 Amelia Earhart Avenue Mangere, Auckland 2022, New Zealand...
