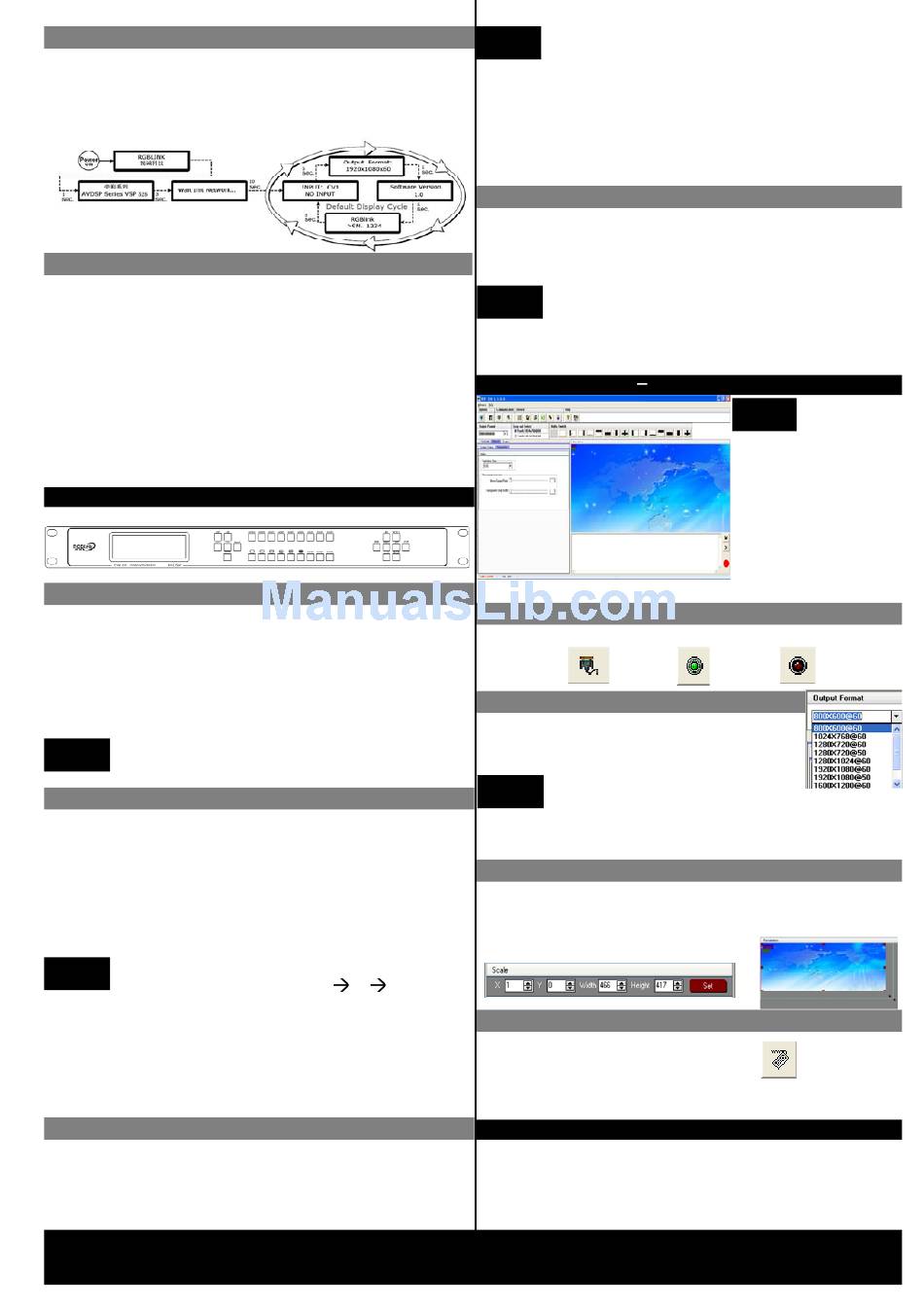

RGBlink VSP 330 Quick Start Manual page 2

Step8-power connector
The IEC connector power cord to the power input on
the VSP 310, VSP 310 85 to 265V power supply
supports AC input, compatible with the current world
power system
Powering up
Push power button switcher to ON position. LCD
module on the front panel will show RGBLINK and VSP
310 model information, and go into self verification
before it load the last setting configuration data and send
the processed image to the target display or device. For
the first time running, CV1 input is the default input
source. User can operate with VSP 310 with local front
panel and remote control with the software run on the
PC, remote control by RS232, USB or TCP/IP.
Local control -- Front Panel Operation
Step 1-Input switch
VSP 330 support 2 inputs by HDMIA and HDMIB,
push the input will send the input to all the outputs with
the output resolution and the scale configuration data.
User can set each output by push HDMI1~HDMI4
separately.
If there is not input for current input, the image
NOTE
will freeze as last frame.
Step 2-Set scale
Push Scale to go into scale setting menu, user can set
Horizontal size, vertical size, horizontal position (X) and
vertical position (Y).
Go to each set menu, push Sel to go into setting, push
Up or Down to change the value, push Sel to enable
value and push ESC to escape the menu.
Keep push UP or DOWN button, the value will
NOTE
change fast each time from 1 10 100 pixels.
During PIP mode, HDMIA is the main window，
HDMIB is sub window，user can only set the position
of sub window, which means main window position is
always (0,0). If user want to set PBP, need to scale
HDMIA and HDMIB, position HDMIB to middle.
Step 3-Set output resolution
Push OUT button and use UP or DOWN button to go to
the right resolution for the monitor or display system,
and push SEL button to decide to go to the selected
resolution.
Address:S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
Tel: 00865925771197
Email: rgblinkcs@gmail.com
Fax:00865925771202
http://www.rgblink.com
VSP 330 can set output resolution as the same
NOTE
to HDMIA and HDMIB, and have other 8
800×600×60Hz ;1024×768×60Hz;1280×720×60Hz;
1280×720×50Hz;1280×1024×60Hz; 1600×1200×60Hz;
1920×1080×60Hz;1920×1080×50Hz;
The output resolution should be the same or large than
the end display.
Step 4-Save
VSP 330 supports 6 user modes. Press SAVE button,
SAVE1 to SAVE6 buttons will light up, press SAVE1 to
SAVE6 separately will finish save operation.
SAVE1 is the default user mode of VSP 330,
NOTE
after power on, VSP 330 will work as SAVE1
settings. After Factory reset, all user-mode go to initial
settings.
Remote control
Step 1-Set up communication
Use the RS 232 port on the computer, baudrate should
be 115200.
Set com
Step 2-Set up output resolution
Select output resolution from pull down
output list.
Push the pull down list to select
NOTE
HDMIA or HDMIB as output resolution, it
means the output will work directly with this resolution.
Step 3-Set Scale
User can scale the image with mouse drap and drop
operation; User can also scale by input the data into the
scale parameters and set.
Step 4-Save operation
Push "Save to flash" button and
select one of user mode to save, there
are three user mode in the list.
Advance setting functions
VSP 330 support advance setting for seamless switch
and split panel control.
They are available from local or remote control.
software operation
This software
NOTE
is only setup
for windows system,
please refer to the user
manual for detail.
During install and
application, please use
right language
interface.
Close com
Open com
Save to flash
button, use
to save user
mode
