- Page 1 Model Number: IT414078 INSTRUCTION MANUAL...
-
Page 2: Warranty Details
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT 1300 663 907 customercare@winplus.com.au YEAR WARRANTY MODEL: IT414078 PRODUCT CODE: 49098 02/2015... -
Page 3: Safety Instructions
Keep batteries out of reach of children. Swallowing may lead to serious injury or death in as little as 2 hours due to internal burns. If swallowed, go straight to a hospital emergency room. Dispose of used batteries immediately. After Sales Support 1300 663 907 Model Number IT414078 customercare@winplus.com.au... -
Page 4: Table Of Contents
2.6 Arming The Alarm 2.7 Disabling The Alarm 2.8 Low Voltage Indicator Further Instructions 3.1 Alarm Types 3.2 Code Pairing 3.3 Resetting Pairing Troubleshooting Repair and Refurbished Goods or Parts Notice After Sales Support 1300 663 907 Model Number IT414078 customercare@winplus.com.au... -
Page 5: Parts List
≥ 60 M (Open Area) Door/Window Sensor Voltage: 6V DC Alarm Volume: ≈ 95dB Frequency: 433.92MHz ± 250KHz Response Distance: ≈ 15mm Alarm Time: ≈ 10 Seconds Transmission Distance: 50 m (Open Area) After Sales Support 1300 663 907 Model Number IT414078 customercare@winplus.com.au... -
Page 6: Product Overview

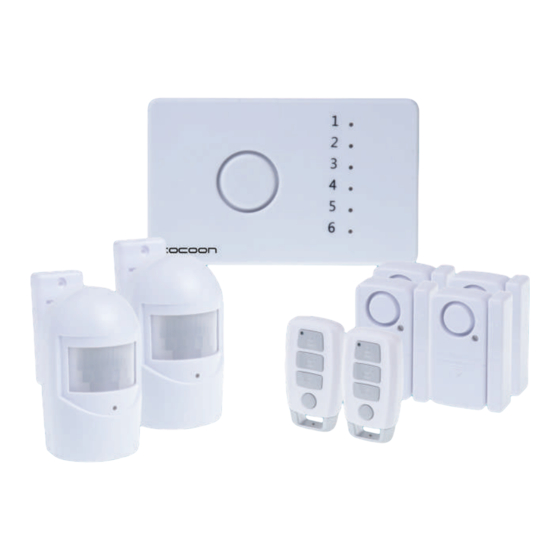

Product Overview 1.1 Product Features The Cocoon 6 Zone Wireless Alarm Kit is an all in one security solution designed for your home or small business. The Cocoon 6 Zone Wireless Alarm Kit will detect motion with PIR sensors and the door and window sensors will alarm if doors or windows are opened to ensure that your building is secure. -
Page 7: Control Panel
5. USB Port 7. Battery 2. Indicator Lights 4. Code Button 6. Mounting Point Compartment 1.4 PIR Sensor 1. Infrared Sensor 3. Mounting Point 2. Indicator Light 4. Battery Compartment After Sales Support 1300 663 907 Model Number IT414078 customercare@winplus.com.au... -
Page 8: Door/Window Sensor
1. Sensor 3. Indicator Light 5. On/Off Switch 2. Speaker 4. Magnetic Strip 6. Battery Compartment 1.6 Remote 1. Lock Button 3. Home Button 2. Unlock Button 4. Emergency Button After Sales Support 1300 663 907 Model Number IT414078 customercare@winplus.com.au... -
Page 9: Installation
Installation 2.1 Unpack Unpack the Cocoon 6 Zone Wireless Alarm Kit from the packaging and check you have all the components: • 1 X Control Panel • 2 X Mounting Accessories • 4 X Door/Window Sensors • 6 x Screws & Screw Anchor Sets •... -
Page 10: Door/Window Sensor Setup
Control Panel: When the status indicator lights start constantly flashing. Door & Window Sensors: When the status indicator light starts constantly flashing. PIR Sensors: When the status indicator light comes on constantly. After Sales Support 1300 663 907 Model Number IT414078 customercare@winplus.com.au... -
Page 11: Further Instructions
Further Instructions 3.1 Alarm Types The Cocoon 6 Zone Wireless Alarm Kit has different alarm modes to suit different needs: Emergency Mode: If there is an emergency, press the button on the remote control. The control panel will emit an will alarm immediately. -
Page 12: Troubleshooting
• The PIR sensors work to detect movement from a still object, in rare cases, if an object is constantly moving, they may not detect further motion beyond the first time. After Sales Support 1300 663 907 Model Number IT414078 customercare@winplus.com.au... -
Page 13: Repair And Refurbished Goods Or Parts Notice
Winplus Australasia PO BOX 537 Bayswater Business Centre Bayswater, VIC 3153 Winplus Help Desk 1300 663 907 (Operating Hours: Mon-Fri 08:30AM to 6:00PM) customercare@winplus.com.au www.winplus.com.au AFTER SALES SUPPORT 1300 663 907 customercare@winplus.com.au YEAR WARRANTY MODEL: IT414078 PRODUCT CODE: 49098 02/2015... - Page 14 Notes...
