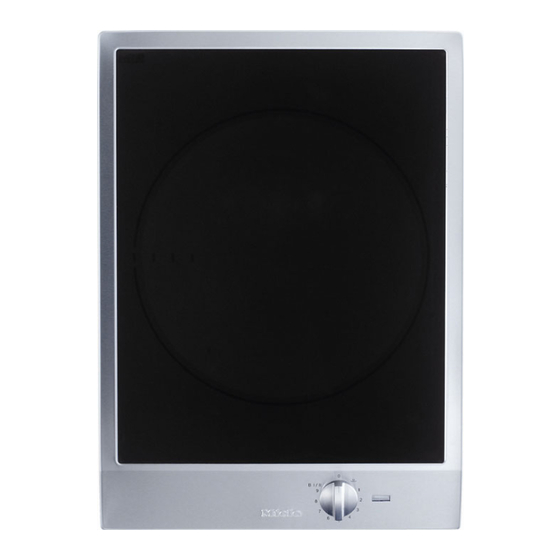

- Page 1 Operating and Installation Instructions Ceramic combiset with Induction CS 1221 en - US To prevent accidents and appliance damage, read these instructions before installation or use. M.-Nr. 07 346 540...
-
Page 3: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS....... . . 4 Guide to the combiset ..........9 Display . -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING- When using your gas appliance follow basic precautions, including the following: This gas combiset conforms to all uniform safety codes and regulations. Read all instructions before installation or use to prevent injury and appliance damage. These instructions contain important information on installation, safety, use and maintenance of this appliance. - Page 5 Technical Safety Installation, repair and maintenance work should be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty. Be sure your appliance is properly installed and grounded by a qualified technician.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not cook on a broken combiset. Any breakages or cracks in the ceramic surface of the appliance are defects and must be treated as such. If the combiset should break, cleaning solutions and spills may penetrate the broken combiset and create a risk of electric shock.
- Page 7 The combiset is fitted with a cooling fan. Drawers under the combiset are not recommended. If a drawer is fitted directly underneath the combiset, ensure that there is sufficient space between the drawer, its contents and the underside of the appliance in order to ensure sufficient ventilation for the combiset.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS Pot and pan handles should be turned inward and not extend over the countertop to reduce the risk of burns, ignition of flammable materials, and spills. Do not use pots or pans with pronounced edges or ridges on the ceramic combiset.
-
Page 9: Guide To The Combiset

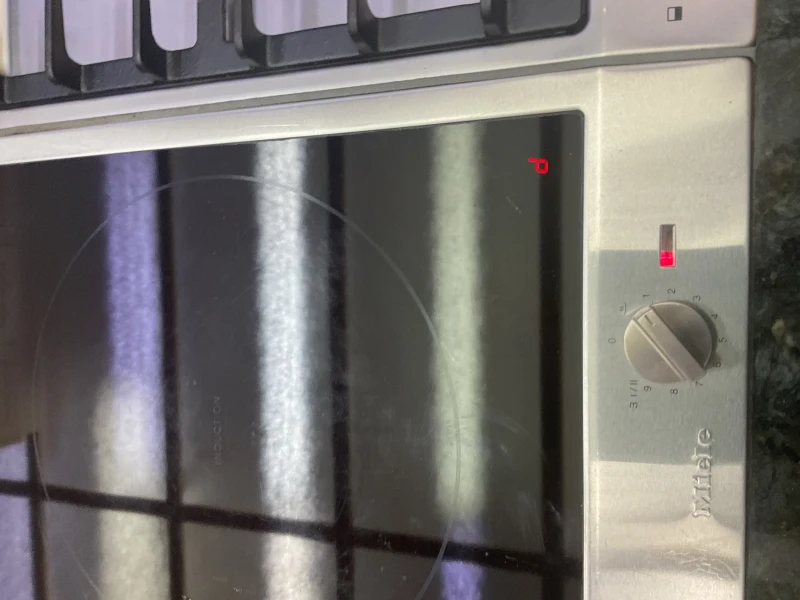

a Burner with booster b Display c Indicators d Control knob Guide to the combiset Indicators l On/Off indicator m Booster indicator n "Residual Heat" indicator... -
Page 10: Display
Guide to the combiset Display ß = No pan on burner or pan is unsuitable = Auto-heat = Fault (see "Frequently asked questions") C / 0 = Safety cut-out feature (see "Safety features") = Booster activated = Overheating protection (see "Safety features") = Child safety lock (see "Safety features") Burner data Minimum to maximum... -
Page 11: Before Using For The First Time
Clean the combiset ^ Before using for the first time, clean the appliance with a damp cloth and dry with a soft cloth. Do not use liquid dish soap to clean the combiset, this may cause permanent blue discolorations. Before using for the first time Heat the appliance When the combiset is first connected to the power supply and after a power... -
Page 12: Induction
Induction How it works An induction coil is located under the burner. When the burner is switched on, this coil creates a magnetic field which impacts directly on the base of the pan and heats it up. The burner itself is heated indirectly by the heat given off by the pan. -
Page 13: Noises
Noises When using an induction burner, the following noises can occur in the pan, depending on what it is made of and how it is constructed. – Higher power settings may cause a buzz. This will decrease or cease altogether when the power setting is reduced. -
Page 14: Cookware
Induction Cookware Suitable pans include: – stainless steel pans with a magnetic base – enameled steel pans – cast iron pans Unsuitable pans: – stainless steel pans without a magnetic base – aluminum and copper pans – glass, ceramic or earthenware pots and pans To test whether a pot or pan is suitable for use on an induction combiset, hold... -
Page 15: Use
Turning the burner On/Off ^ To turn the burner on, press the control knob down and turn it clockwise a to the desired setting. ^ To turn the burner off, turn the control knob counterclockwise b to "0". Do not turn the burner on without pressing the control knob down, and do not turn the knob past "B I"... -
Page 16: Settings
Settings Use for Melting butter, chocolate, etc. Dissolving gelatin Prepare yogurt Warming small quantities of food or liquid Keeping delicate dishes warm Cooking rice, Thawing frozen vegetables Warming liquid or half-set foods Thickening sauces, e.g., hollandaise sauce Cooking rice pudding Defrosting frozen foods Steaming vegetables, fish, etc. -
Page 17: Auto-Heat
Auto-heat When Auto-heat has been activated, the burner switches on automatically at the highest setting and then switches to the continued power level which was selected. The "heat-up" time depends on which continued power level has been chosen (see table). Continued power level* The higher continued cooking settings... -
Page 18: Booster Function
Booster function The burner is equipped with a booster function to temporarily increase the power level. This boost is intended to quickly bring large quantities of water to the boil, e.g. cooking pasta. When the Booster is activated the burner will operate with extra power for 10 minutes. -
Page 19: Keep Warm
Keep warm This function can be used for keeping food warm right after it has been cooked. It is not for reheating food which has already cooled. Once activated the keep warm function will switch off automatically after 2 hours. Tips –... -
Page 20: Tipps Zum Energiesparen
Energy saving tips – Whenever possible, keep pots and pans covered while cooking. This helps keep in the most possible heat. – When cooking small guantities of food, use a small pot or pan. This will required less energy to heat up than a large pot. -
Page 21: Safety Features
Child Safety Lock Keep children away from the combiset for their own safety. The combiset has a Child Safety Lock to prevent children from turning on the burner. To activate the Child Safety Lock: ^ Turn the control knob counterclockwise as far as it will go, and hold until L appears in the display. -
Page 22: Overheating Protection
– heating an empty pan, – oils or fats being heated on the highest power level, – the underside of the appliance is not sufficiently ventilated. If the overheating protection feature activates again, contact Miele Technical Service. -
Page 23: Cleaning And Care
Do not use a steam cleaner to clean this appliance. Steam could penetrate electrical components and cause a short circuit. Pressurized steam could cause permanent damage to the surface. Do not use any sharp pointed objects which could damage the seal between the ceramic surface, the surrounding frame and the countertop. -
Page 24: Stainless Steel
Stubborn soiling is best removed with a shielded scraper blade. ^ Apply a ceramic cleaner (available from Miele) using a soft cloth or paper towel. ^ To remove any limescale deposits or metallic residue apply a ceramic cleaner using a soft cloth or use a shielded scraper blade if necessary. -
Page 25: Frequently Asked Questions
3 seconds. Solution Turn the burner off and place suitable cookware on it. See "Cookware" for information on type and size of suitable cookware. Solution Do not use the combiset until it has been repaired. Contact Miele Technical Service. - Page 26 Frequently asked questions What if the combiset turns itself off automatically? Possible fault Either the "Safety cut-out" feature or the "Overheating protection" feature has been activated. What if one of the following errors occurs: - The booster function turns off automatically ahead of time. - C and 0 flash alternately in the display.
-
Page 27: Technical Service
Technical Service In the event of a fault which you cannot easily fix yourself, please contact the Miele Technical Service Department at the address on the back of this booklet. When contacting Technical Service please quote the serial number and model of the appliance. - Page 28 Miele appliance. Please note that unless expressly approved in writing by the Miele Ser- vice department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele.
-
Page 29: Installation Instructions
Installation Instructions IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE Information is subject to change. Please refer to our website to obtain the most current product specification, technical & warranty information. To prevent accidents and appliance damage read these instructions before installation or use. -
Page 30: Important Installation Safety Instructions
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Note to the installer: Please leave this instruction book with the consumer for the local electrical inspector’s use. The minimum distances given in these Installation Instructions must be observed in order to ensure safe operation. Failure to do so increases the risk of fire. -
Page 31: Safety Distances Above The Appliance
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Safety distances above the appliance The minimum safety distance given by the hood manufacturer must be maintained between the combiset and the hood above it. See the installation instructions of the hood for these safety measurements. If the hood manufacturers instructions are not available or if flammable objects are installed over the combiset (e.g. - Page 32 IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Safety distances to the sides of the appliance The appliance should only be installed as shown in the illustrations, while maintaining the required safety distances shown. Do not install the appliance between two tall cabinets, this is a fire hazard. A distance of at least 2"...
-
Page 33: Installation
Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a combustible material (such as wood), the distance between the countertop cut-out and the wall covering must be a minimum of 2"... -
Page 34: Installation Dimensions
Installation Installation dimensions a Spring clips b Appliance front c Installation height d Power supply box with connection cable e Rating label... - Page 35 Cut out ^ Make the countertop cut-out for the desired number of appliances. Remember to maintain a minimum safety distance from the back wall, as well as from any tall unit or side wall to the left or right of the combiset.
-
Page 36: Installation Of Multiple Appliances
Installation Installation of multiple appliances When installing more than one combiset appliance, a support bar b must be installed between the appliances. Countertop cut-out two appliances For the installation of two appliances the width of the countertop cut-out D is the sum of A and C. - Page 37 Sample calculations for a countertop cut-out for three appliances appliance width appliance width minus 5/16" (8 mm) 11" (280 mm) 11 5/16" (288 mm) 11" (280 mm) 15" (380 mm) 11" (280 mm) 22 11/16" (576 mm) 14 5/8" (372 mm) 11 5/16" (288 mm) 14 5/8"...
- Page 38 Installation a Spring clips b Support bars c Space between support bar and countertop d Cover The illustration represents the attachment of spring clips a and support bars b for 3 appliances. An additional support bar is required for each additional appliance. The position for attachment of an additional support bar depends on the width of appliance B.
-
Page 39: Attach The Spring Clips And Support Bars
Attach the spring clips and support bars Wood or solid surface countertops ^ Place the supplied spring clips a and the support bars b at the marked positions as shown above, by laying them on the upper edge of the cut-out and then securing them with the "... - Page 40 Installation Granite countertop The screws are not needed for granite countertops. ^ Position and attach the spring clips a and support bars b with strong, double-sided tape c. ^ Coat the side and lower edges of the spring clips between a and b with silicone.
- Page 41 Installing the appliance(s) ^ Feed the power cord down through the cut-out. ^ Place the front edge of the appliance into the cut-out. ^ With a hand on each side of the appliance press down evenly on the edges until it clicks into position. When doing so make sure that the appliance seal sits tightly on the countertop to ensure it is sealed...
-
Page 42: Sealing
Installation Sealing The appliance must not be permanently sealed into the countertop when installed. The sealing strip under the edge of the appliance provides a sufficient seal for the countertop. If the appliance is sealed into position, the countertop or appliance could be damaged if it needs to be removed for maintenance or service. -
Page 43: Electrical Connection
CAUTION: Before installation or servicing, disconnect the power supply by either removing the fuse, shutting off the main power or manually "tripping" the circuit breaker. Installation work and repairs should only be performed by a qualified technician in accordance with all applicable codes and standards. -
Page 44: Help Protect Our Environment
Help protect our environment Disposal of packing materials The cardboard box and packing materials are biodegradable and recyclable. Please recycle. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Danger of suffocation! Disposal of an old appliance Old appliances contain materials that can be recycled. - Page 48 Alteration rights reserved / 3911 M.-Nr. 07 346 540 / 04 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
