Nu-Vu UB 6/6G Specifications

Nu-Vu UB 6/6G Specifications

Gas oven/proofer

Advertisement

Quick Links

NU-VU
Oven / Proofer
®

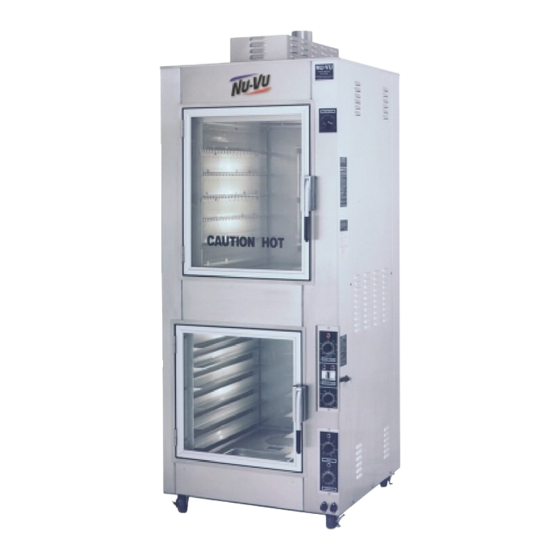

UB-6/6G Oven / Proofer - Gas
STANDARD FEATURES:
®
V-AIR
technology
Stainless steel construction
Indicator lights for thermostats
Mechanical magnetic
door latches
Door activated microswitch for fan
Four speed fan
3" heavy duty casters
Full view tempered glass doors
Separate heat and humidity
controls for proofer
Natural or LP Gas
OPTIONAL FEATURES:
Internal steam
AutoMist humidity
Warmer in proofer
Cook'n Hold
Solid door (per door)
Product probe
NU-VU
Food Service Systems
®
®
www.nu-vu.com
5600 13th Street
Menominee, MI 49858
Food Service Systems
®
Project
Item
Quantity
SIZE:
3
1
UB-6/6G - 83-
/
" High, 32-
/
8
2118 mm High, 819 mm Wide, 918 mm Deep
NU-VU's UB-6/6G gas oven/proofer features our
®
patented V-AIR
System in the oven. The heat is
distributed evenly throughout the oven cavity by the
fan located in the top of the oven which blows the air
down the inside walls of the cavity and up and out
through the holes at each shelf. This gives your
product an even bake, top to bottom, side to side and
front to back without ever turning pans.
The proofer portion of the UB-6/6G comes standard
with a manual fill humidity system.
The UB-6/6G has a capacity of 6 full size pans in the
oven and 6 full size pans in the proofer.
These units also features flush mount doors, which
means no sagging or leaking, and no adjustments
need to be made. Lift off hinges allow for easy
cleaning. The lighted oven and proofer compartments
make it easy for you to do sight baking and proofing
without having to open the doors, disturbing the
internal temperatures.
CONSTRUCTION:
Welded stainless steel
Fully insulated
Control panel accessible through front and
side of unit
Heating elements accessible inside of cabinet
and through side of proofer
CONTROLS:
Solid state controls
Indicator lights for thermostats
Microswitch fan motor cut-off for oven
Burner ignition light
Four speed fan switch
LABORATORY CERTIFICATION AND APPROVAL
1-800-338-9886 Toll Free
1-906-863-4401 Phone
1-906-863-5889 Fax
1
" Wide, 36-
/
" Deep
4
8

Advertisement

loading
Need help?

Need help?

Do you have a question about the UB 6/6G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nu-Vu UB 6/6G

  • Page 1 V-AIR distributed evenly throughout the oven cavity by the fan located in the top of the oven which blows the air down the inside walls of the cavity and up and out through the holes at each shelf. This gives your product an even bake, top to bottom, side to side and front to back without ever turning pans.
  • Page 2 Food Service Systems ® UB-6/6G Oven / Proofer - Gas ” 4” DIA FLUE ” ” 4 ” SPECIFICATIONS: ELECTRICAL: 208 or 240 Volt single or three phase is standard. (Specify at time of order.) SERVICE CONNECTIONS: • Unit is shipped from factory to be hard wired on site.
