Nu-Vu UB-12R Specifications

Nu-Vu UB-12R Specifications

Roll-in rack oven

Advertisement

Quick Links

NU-VU
Oven / Proofer
®

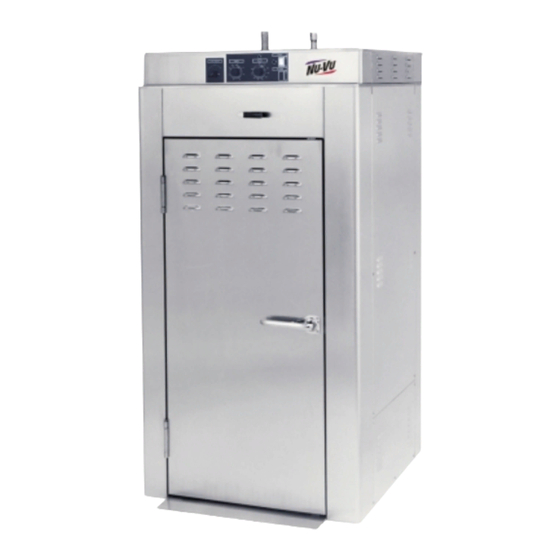

UB-12R Roll-In Rack Oven
STANDARD FEATURES:
®
V-AIR
technology
Stainless steel construction
Solid door
Heavy duty roll-in rack
Silicone sponge door gasket
LABORATORY CERTIFICATION AND APPROVAL
OPTIONAL FEATURES:
Internal steam
Two speed fan
Cook'n Hold
Extra s/s rack (20-1115)
Prison package
Sight glass door
Product probe
NU-VU
Food Service Systems
®
®
www.nu-vu.com
5600 13th Street
Menominee, MI 49858
Food Service Systems
®
Project
Item
Quantity
SIZE:
3
1
UB-12R - 77-
/
" High, 36-
/
8
4
1965 mm High, 921 mm Wide, 1026 mm Deep
NU-VU's UB-12R oven features our patented
®
V-AIR
System in the oven. The heat is distributed
evenly throughout the oven cavity by the fan
located in the top of the oven which blows the air
down the inside walls of the cavity and up and out
through the holes at each shelf. This gives your
product an even bake, top to bottom, side to side
and front to back without ever turning pans.
Roll-In Rack ovens are designed to provide very
high volume baking in a minimal amount of space
and with minimal labor.
Available in both gas (model UB-12RG available in
natural and LP gas) and electric, these rugged,
heavy-duty ovens are ideal for correctional
institutions, schools, hotels, hospitals, resorts or any
facility which needs the advantages of a full rack
production. The oven's compact design allows for
installation under existing hood systems.
CONSTRUCTION:
Welded stainless steel
Fully insulated
Control panel accessible through front and
top of unit
Heating elements accessible inside of cabinet
and sides
CONTROLS:
Solid state controls
Indicator light for thermostat
Microswitch fan motor cut-off
1-800-338-9886 Toll Free
1-906-863-4401 Phone
1-906-863-5889 Fax
3
" Wide, 40-
/
" Deep
8

Advertisement

loading
Need help?

Need help?

Do you have a question about the UB-12R and is the answer not in the manual?

Questions and answers

Summary of Contents for Nu-Vu UB-12R

  • Page 1 ® SIZE: UB-12R - 77- 1965 mm High, 921 mm Wide, 1026 mm Deep NU-VU’s UB-12R oven features our patented ® V-AIR evenly throughout the oven cavity by the fan located in the top of the oven which blows the air down the inside walls of the cavity and up and out through the holes at each shelf.
  • Page 2 ”. ELECTRICAL: Amp Draw 208/1 208/3 WATER: A water conditioning system should be used to minimize mineral build-up. LISTINGS: The UB-12R has NSF and C-ETL-US listings. NU-VU ® www.nu-vu.com 5600 13th Street Menominee, MI 49858 LOCKING ” CONTROL COVER.
