Summary of Contents for Gigaset SL910

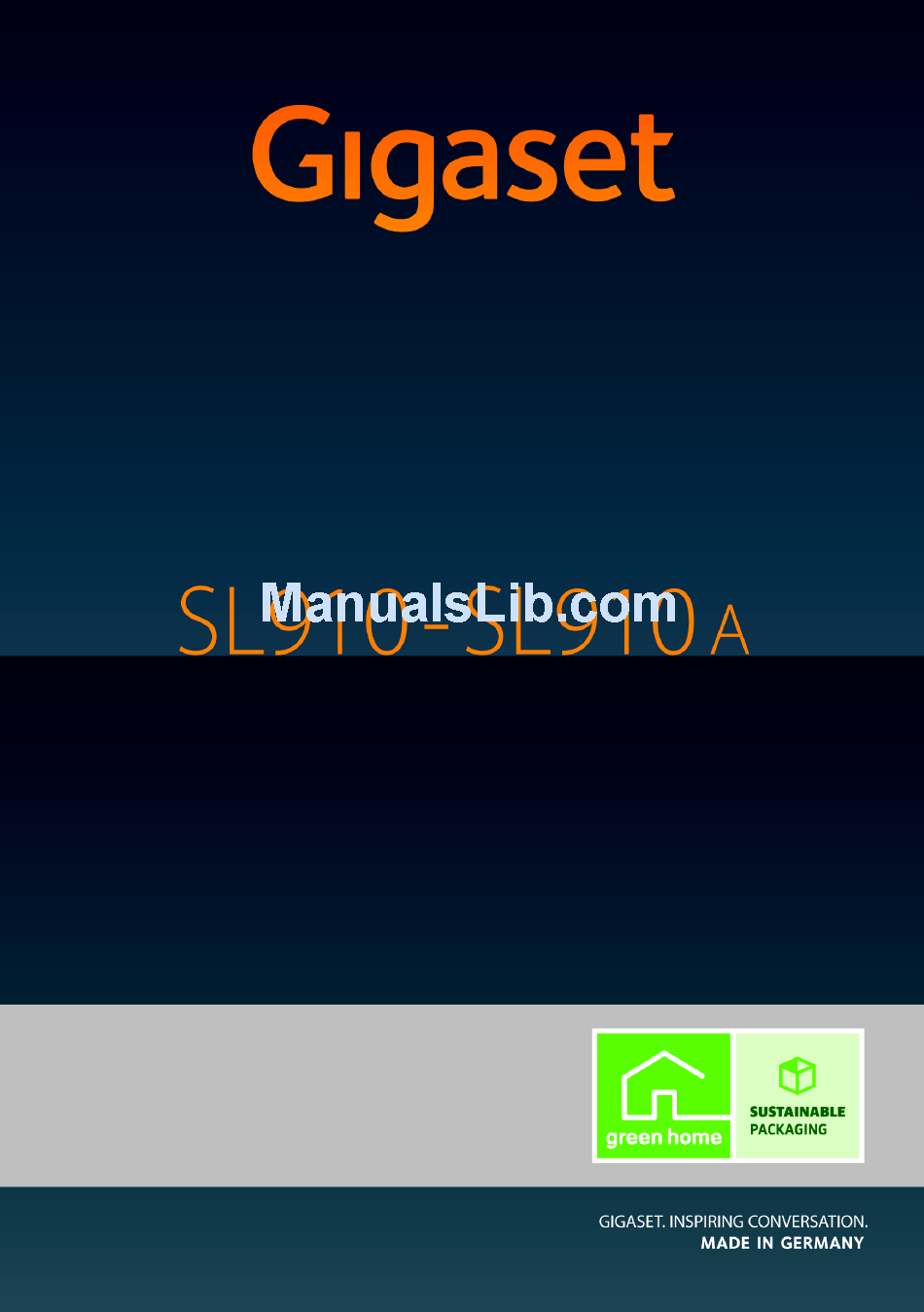

- Page 1 Congratulations By purchasing a Gigaset, you have chosen a brand that is fully committed to sustainability. This product’s packaging is eco-friendly! To learn more, visit www.gigaset.com.
-
Page 3: Gigaset Sl910/Sl910A - With The Special "Touch
Congratulations on your purchase of the first Gigaset with touchscreen. This phone sets new standards with its high-quality genuine metal frame, 3.2" TFT colour touchscreen and excel- lent sound quality and, last but by no means least, its impressive interior qualities. Your Gigaset can do a lot more than just make calls:... -
Page 4: Table Of Contents
Contents Gigaset SL910/SL910A – with the special "touch" ....1 Overview of handset ..........3 The base at a glance . -
Page 5: Overview Of Handset
Press briefly: open main menus ( page 21) ¢ Press and hold: activate/deactivate key and display lock ( page 26) Underside of the handset: Mini USB connection socket Connect wire-bound headset or handset to your PC (Gigaset QuickSync) Charging contacts... -
Page 6: The Base At A Glance
Overview of handset The base at a glance Paging key Press briefly: Start paging Press and hold (approx. 3 seconds): Set base to registration mode Flashes: Base in registration mode Lights up: LAN connection active (for firmware update only) Display icons Icons on the status bar The following icons are displayed in the status bar depending on the settings and the operating status of your telephone:... - Page 7 Overview of handset Option slider icons The functions on the option slider change depending on the operating situation. Icon Action Icon Action † Activate handsfree mode Determine free memory in the † resource directory þ (Handsfree mode is activated) (orange) Search Deactivate handsfree mode Ž...
- Page 8 Please note This quick user guide only describes a small proportion of your base's functions. A detailed description of all functions in the menu tree can be found in the long user guide for your Gigaset SL910/SL910A on the enclosed CD.
-
Page 9: Safety Precautions
Otherwise you risk serious and permanent damage to your hear- ing. Your Gigaset is compatible with the majority of digital hearing aids on the market. However, perfect function with all hearing aids cannot be guaranteed. The handset may cause interference in analogue hearing aids (humming or whis- tling) or cause them to overload. -
Page 10: First Steps
Please note: Never expose the telephone to the effects of heat sources, direct sunlight or other electrical devices. Protect your Gigaset from moisture, dust, corrosive liquids and fumes. -
Page 11: Connecting The Base With The Phone Network And The Mains Power Supply
Connecting the base with the phone network and the mains power supply ¤ Insert the phone cable (cable slightly flattened) into the lower connection socket at the rear of the base. ¤ Insert the power cable for the power adapter into the upper connection socket at the rear of the base. -
Page 12: Connecting The Handset Charger
Connecting the handset charger ¤ Connect the flat plug on the power adapter ¤ Plug the power adapter into the plug socket If you have to remove the plug from the charger again: ¤ Disconnect the power adapter from the mains power supply. ¤... -
Page 13: Setting Up The Handset For Use
Inserting the battery and closing the battery cover Warning Use only rechargeable batteries recommended by Gigaset Communications GmbH, as this could result in significant health risks and personal injury. For example, the outer casing of the battery could be destroyed or the battery could explode. -
Page 14: Charging The Battery
¤ To remove the battery, insert your fingernail into the cavity on the casing and pull the bat- tery upwards. Charging the battery The battery is supplied with a partial charge. Please charge it completely before use. ¤ Charge the handset in the charger for 5 hours. -
Page 15: Setting Up The Base And Handset - Installation Wizard
Setting up the base and handset – installation wizard Once the handset has been charged sufficiently, the installation wizard starts auto- matically. It helps you to configure the following key settings on the handset and base, which are required for operation: Time and date Display language Country in which the phone will be used... - Page 16 Comment: If you set the 12 hrs mode, am/pm is shown next to the number wheels. Date ¤ Touch the ’ icon next to Date to set 01.04.2010 the date. Display Language English Country ¤ Use the three number wheels to set the Date current date.
- Page 17 This brings up a list containing all the Display Language available languages. The current language is marked with Ø. Ø English ¤ ± Touch the required language. Français If your language is not displayed, the list ± Castellano may be "longer" than the display. You ±...
- Page 18 Please note If you have selected Other Country instead of a country, the Welcome page will also show the Country (Dial Code) entry. ¤ Touch the corresponding ’ icon and enter the International Prefix and International Area Code for the international country code, as described below for the area code.
-
Page 19: Handset In Idle Status
Welcome The Welcome page is displayed again. ¤ Touch the [ è Save Setting] option to Time 08:32 save your settings. Date 01.07.2011 The handset switches to idle status. Display Language English Country United Arab Emirates Area (Dial Code) ‰ õ... -
Page 20: Using The Phone
Press and hold the end call key a again to reactivate the handset. Operating the touchscreen The Gigaset SL910H handset is primarily operated using the display and only to a small extent using the three buttons on the handset. Icons, list entries, buttons and sliders shown on the display are sensitive areas. You... -
Page 21: Handset Idle Display
Using the phone Handset idle display The idle display consists of three pages that are shown separately on the display. ¢ The configurable page (example page 17) You can customise this page yourself. By default, the date and time are displayed and quick access can be set for call ¢... - Page 22 Using the phone Status bar and status page On each of the three pages, a status bar appears in the header. Ð Ã òô ó ¼ 06:00 For the corresponding icons and their meaning, see page 4. Touch the status bar to display the status page. This page gives you direct (quick) access to the settings for Eco Mode, Eco Mode+, the answering machine for the SL910A, the Bluetooth interface, the ringtone settings and the alarm clock.
-
Page 23: Using The Menus
Answer Network Machine Mailbox Gigaset SL910A only Switch to a different main menu page Changing between the menu pages You can switch between the menu pages in the same way as you switch between the pages in idle mode, using ê, ë or dragging horizontally over the display ¢... - Page 24 Using the phone Opening the submenu Touch an icon on one of the main menu pages and it will be highlighted. The corre- sponding submenu or a new display page is opened up with settings options for the application. The submenus are displayed as lists. The lists contain the parameters that can be configured and the current setting, available options or buttons to activate/deacti- vate.
-
Page 25: Scrolling Through Lists (Vertical Scrolling)
Using the phone Settings i.e.: Ä Å á ï < > Date + Audio Display + Time Settings Keypad etc. The numbers are not shown in the display! They were positioned here above the menu icons for better understanding. ¤ If you want to activate a service function, press and hold (for approximately 2 seconds) the following icons relating to the numbers: A D G B 3 F E 9 H. -
Page 26: Options
Using the phone Options Many display pages (especially lists like directories, call lists) have an option slider in the lower section. This displays all the actions that you can apply in the current context. ¤ Touch an option to perform the corresponding action. Example (moveable option slider): <... -
Page 27: Entering Numbers And Text, Incorrect Entries
Using the phone Entering numbers and text, incorrect entries The appropriate keypads are displayed to enter numbers and text. An optional field (numerical keypad) for entering phone numbers or a system PIN. A (typewriter) key- pad for entering text. You use them to enter characters by touching the relevant character on the display. These then appear in the text or number field displayed on the page. -
Page 28: Returning To Idle Status
Using the phone Returning to idle status ¤ Briefly press end call key a. ¤ If you do not press any key and do not touch the display, the display automati- cally reverts to idle status after approximately three minutes. Returning to the previous display page Just like the idle display pages, the ‘... -
Page 29: Menu Tree
Menu tree Menu tree ¤ Briefly press the v key when the handset is in idle status to open the main menu. The main menu consists of the Applications and Settings pages. ¤ Drag your finger horizontally across the display to switch between the pages. Applications menu Main menu Applications... -
Page 30: Settings Menu
Menu tree Settings menu Main menu Submenu Additional setting Settings Current setting options â Date + Time Time Date ì Audio Ringtones Volume Settings Crescendo Int. Calls Ext. Calls Time Ctrl (Ringer Off) Anon. Call Silenc. Silent Alert Reminder Signal Volume Crescendo Sound... - Page 31 Menu tree Main menu Submenu Additional setting Settings Current setting options Display + Screensaver Keypad Activation Selection Slideshow Calendar Digital Clock Analogue Clock Backlight In Charger Out of Charger Backlight Timeout Number Info in Dial Lists Number Type Only Type and Number Indication of New Messages LED + Display Info Keypad...
- Page 32 Menu tree Main menu Submenu Additional setting Settings Current setting options Ê System Eco Mode Eco Mode Eco Mode+ Repeater Mode System PIN Local Network IP Address Type IP Address Subnet Mask Default Gateway Preferred DNS server Firmware Update Automatic Check Resets Handset Reset Base Reset...
- Page 33 Menu tree Main menu Submenu Additional setting Settings Current setting options μ SMS Service SMS Service Centres Active Send Centre Centres Service Centr. 1 Service Centr. 4 ³ Bluetooth Own Device Known Devices Activation Devices found Device Name ¶ Answer Activation Machine Mode...
-
Page 34: Making Calls
Activating while dialling ¤ Enter the number, press c twice. Switching between earpiece and handsfree mode During a call, when establishing the connection and when listening to the answer- ing machine (Gigaset SL910A only): ¤ Press c or touch [ † Speaker]. -
Page 35: Security Check
If No secure connection to base is displayed, you should end the call. Customer Service & Assistance Do you have any questions? As a Gigaset customer, you can find help quickly in this User Manual and in the service section of our Gigaset online portal www.gigaset.com/service. - Page 36 Mexico Bulgaria ....+359 2 9710666 . . . 01800 999 4442738 (01800 999 GIGASET) (0.50 евро на минута от всички държави за Netherlands ....0900-3333102 стационарни...
-
Page 37: Manufacturer Warranty (Middle East)
Manufacturer warranty (Middle East) Manufacturer warranty (Middle East) On the purchase of your new Gigaset product, we guarantee that this equipment is a genuie manufacturer’s product and extend the following warranty: We guarantee this product against manufacturing defects for two full years from the date of purchase, unless specified otherwise. - Page 38 Manufacturer warranty (Middle East)
-
Page 39: Service Centres (Midde East)
Service Centres (Midde East) Service Centres (Midde East) Customer Service Hotline UAE TEL: 00971-4-4458255 / 00971-4-4458254 Service Collection Point www.technocare-prodigy.com KARAMA Sea Shell Electronics Opp. Karama Centre Dubai, UAE Tel: 00971-4-3979228 Fax: 00971-4-3966205 Deira Souvenier Mobiles, Omar Bin Katab Road, Oppst. - Page 40 Service Centres (Midde East) Qatar Modern Home, 51-East - Salwa Road, Al-Maha Complex, Doha Tel: 00974-4257844 / 00974-4257777 Fax: 00974-4314700 Bahrain Authorized Service Center, Bldg: 211, Rd: 339, Block: 321, Old Place Road, Manama, Tel: 00973-17311173 E-mail: servicemanager@ashrafs.com.bh Saudi Arabian Service Centers: Ahmed Abdulwahed Trading Co.
-
Page 41: Authorisation
Country-specific requirements have been taken into consideration. We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/CE. A copy of the 1999/5/EC Declaration of Conformity is available at this Internet address: www.gigaset.com/docs... -
Page 42: Index
Index Index Dial page ..... . . idle display Directory ......opening Display in idle status... - Page 43 Index ..... . . Key and display lock Package contents ....... . on/off Page .
