Hardware Description

Power LED

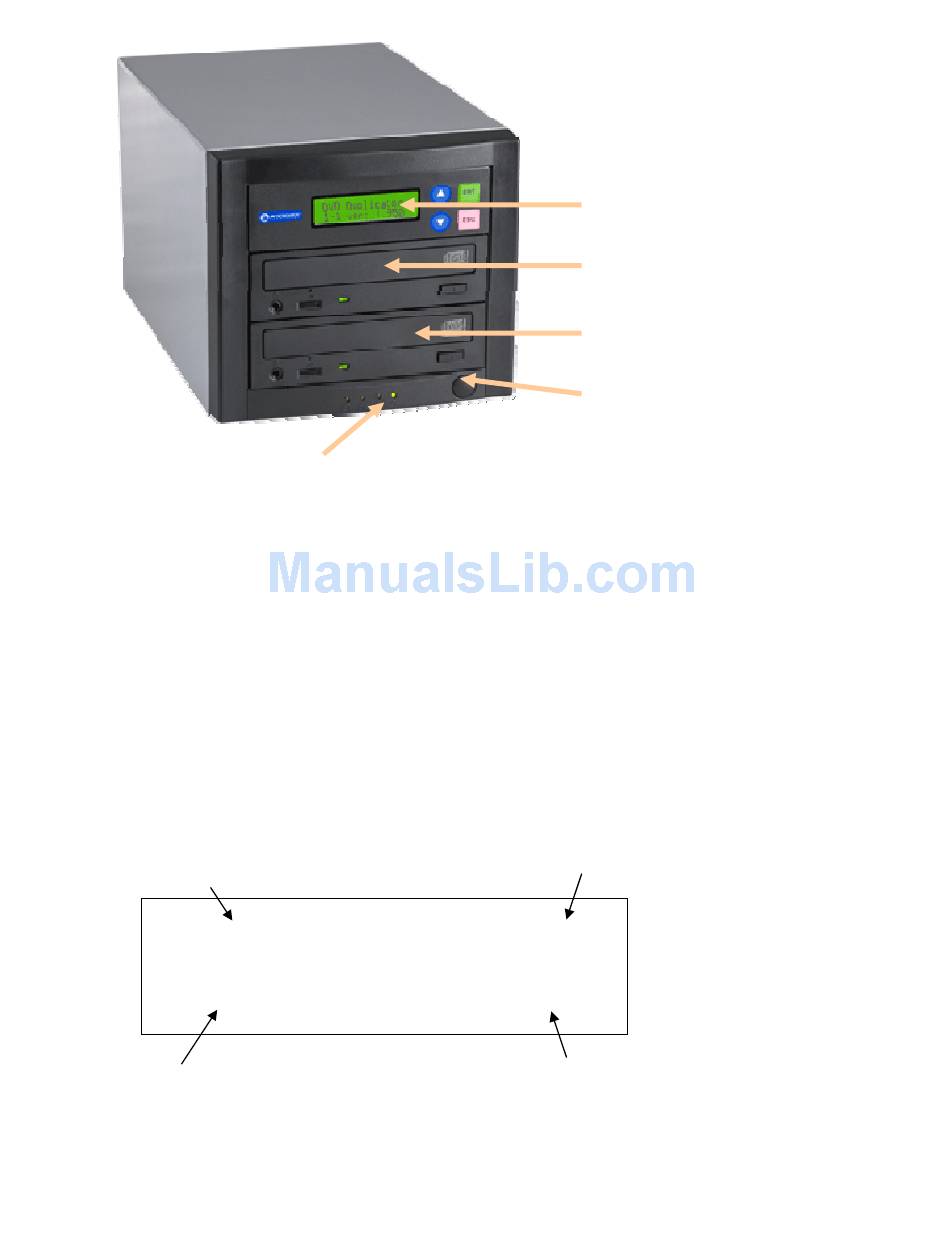

The QD-DVD system consists of a DVD reader, DVD Writer, USB Connection, and Controller
module.
The master discs always go into the TOP DVD Reader drive.
The blank media will always go into the BOTTOM DVD Recorder drive.
The power switch and power LED are also located on the front of the QD-DVD duplicator.
The USB Connection is located on the back of the QD-DVD.
The LCD display will show the different menu selections and also information pertaining to the
recording process. Here is a typical example of what is displayed during the COPY process:
Displays the function being performed,
such as Copying or Testing, and shows the
record speed during duplication.
Copying – DVD
1269.5 MB
Displays the amount of data left to be
recorded. This number starts at the capacity
of the master and counts down.
Controller Interface
Reader Drive
Recorder Drive
Power Switch
Shows the percentage
completed for this action.
71%
01:15
Shows the time remaining to
complete this action. This
number also counts down.
