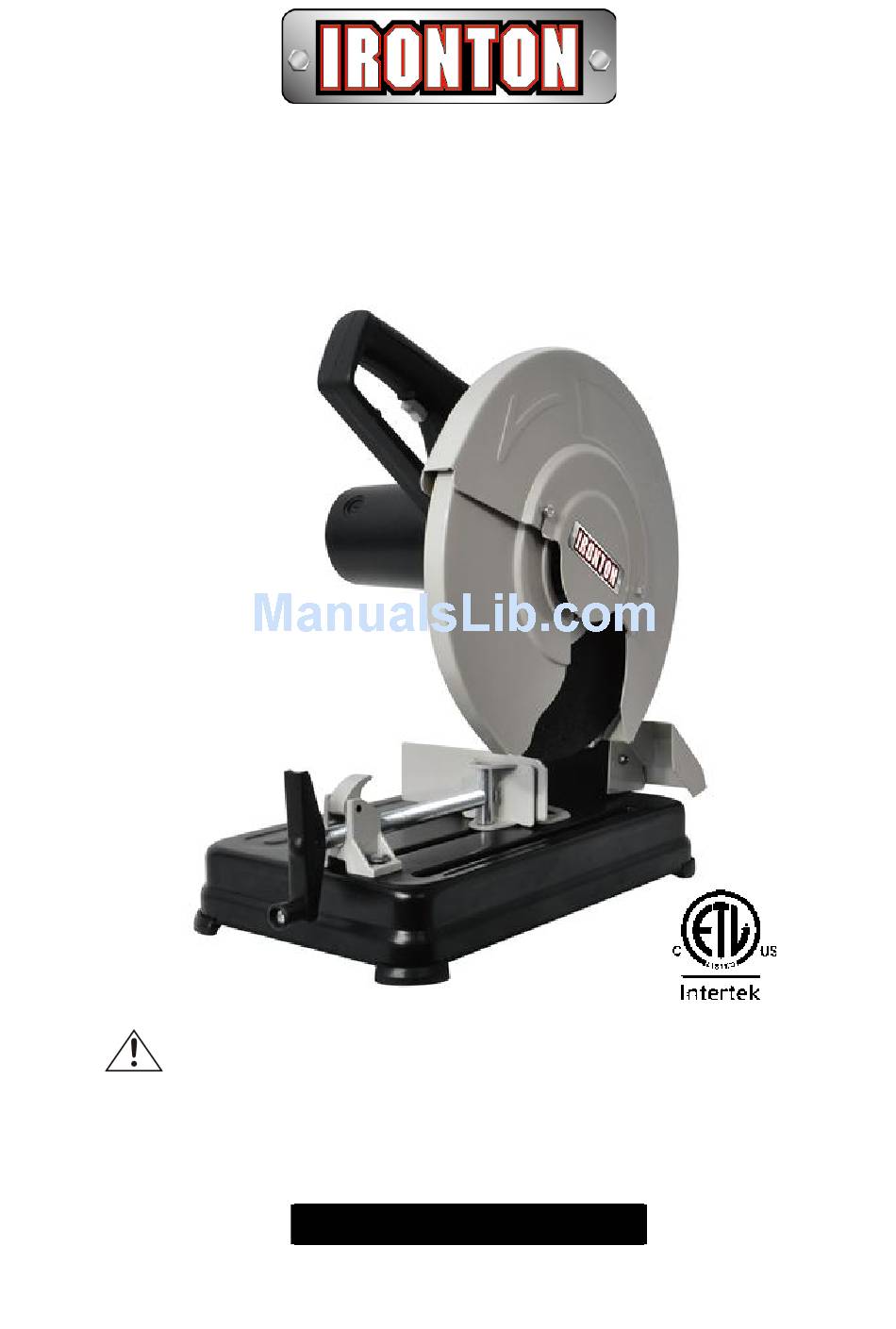

- Page 1 1 4 I N C H A B R A S I V E C H O P S A W OWNER’S MANUAL WARNING: Read carefully and understand all MACHINE ADJUSTMENT AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 39109...
-
Page 2: Intended Use
Thank you very much for choosing an Ironton product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. - Page 3 d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
- Page 4 Into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5) Service a) Have your power tool serviced by a qualified repair person using only Identical replacement parts.
-
Page 5: Important Safety Considerations
IMPORTANT SAFETY CONSIDERATIONS WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paint •... - Page 6 9. Always keep guards in place. 10. Always start the cut gently. Do not bump or bang a wheel to start a cut. 11. Never make any freehand cuts. Always place the workpiece between the vise and fence when making cuts. REPLACING BLADE CAUTION.
- Page 7 MACHINE HEAD ADJUSTMENT To carry the cut-off saw: Fold down arm to base and insert the lock down knob into the hole to lock. (fig. 6) To unlock the cut-off saw: To unlock tool and raise arm, depress arm slightly and pull out knob. The motor arm will then pivot upward.
-
Page 8: Operation
To adjust the work vise for a particular workpiece: (fig. 8,a,b) 1. Release the tension on the screw clamp by turning the handle counterclockwise for 1/2 to 1 full turn. 2. Lift the quick lock lever up and pull back the screw clamp handle sliding the vise open. 3. -
Page 9: Maintenance
MAINTENANCE WARNING! Always ensure that the tool is switched off and the plug is removed from the power point before making adjustments or maintenance procedures. This cut-off saw is equipped with replaceable carbon brushes on the motor; there may become a time they need replacing. -
Page 10: Diagram & Parts List
DIAGRAM & PARTS LIST Page of 12... - Page 11 Part# Description Part# Description rivet ball bearing adjusting handle woodruff key spindle flat washer bearing cover open pin fixation washer advancing nut cross screw spring fixation cover support hexagon nut hexagon flat washer spring washer adjustable protecting cover adjustable pilers board spring washer hexagon bolt movable cover...
-
Page 12: Warranty
WARRANTY One-year limited warranty WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
