ENGLISH

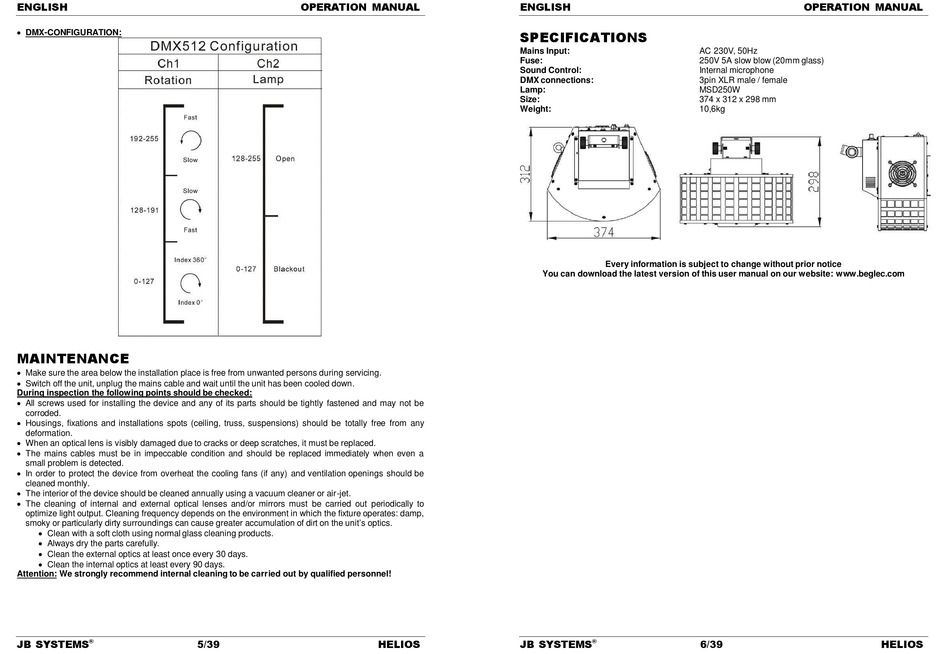

 DMX-CONFIGURATION:

MAINTENANCE

 Make sure the area below the installation place is free from unwanted persons during servicing.
 Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.
During inspection the following points should be checked:
 All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.
 Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.
 When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
 The mains cables must be in impeccable condition and should be replaced immediately when even a
small problem is detected.
 In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be
cleaned monthly.
 The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.
 The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.
 Clean with a soft cloth using normal glass cleaning products.
 Always dry the parts carefully.
 Clean the external optics at least once every 30 days.
 Clean the internal optics at least every 90 days.
Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!
JB SYSTEMS
®
OPERATION MANUAL
5/39
ENGLISH

SPECIFICATIONS

Mains Input:
Fuse:
Sound Control:
DMX connections:
Lamp:
Size:
Weight:
You can download the latest version of this user manual on our website: www.beglec.com
HELIOS JB SYSTEMS
AC 230V, 50Hz
250V 5A slow blow (20mm glass)
Internal microphone
3pin XLR male / female
MSD250W
374 x 312 x 298 mm
10,6kg
Every information is subject to change without prior notice
6/39
®
OPERATION MANUAL
HELIOS
