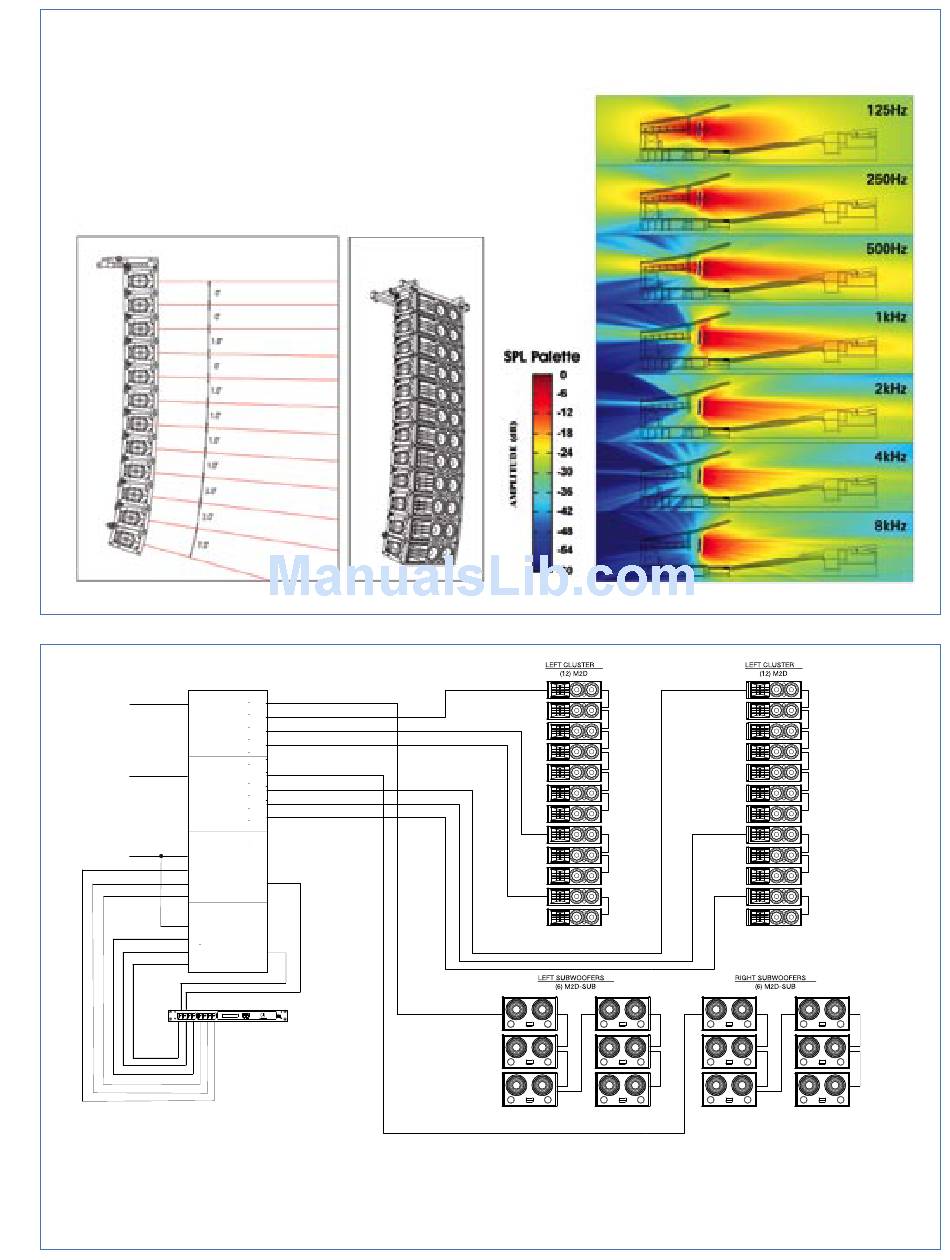

M2D Vertical Splay and Coverage
These illustrations show how the splay between adjacent cabinets in
an M2D array may be adjusted to tailor coverage for a specific venue.
The MAPP Online plots on the right illustrate the vertical directivity
characteristics of the array on the left, with a section view of the
venue superimposed.
LD-3
Channel A
Main
IN SUB OUT
Left
CH 1 OUT
CH 2 OUT
CH 3 OUT
Channel B
Right
IN SUB OUT
CH 1 OUT
CH 2 OUT
CH 3 OUT
Optional
Channel A
Subwoofer
INSERTS SENDS
Mono IN SUB OUT
Full Range
IN CH 1 OUT
Post Array
IN CH 2 OUT
Post Array
IN CH 3
Post HPF
Channel B
INSERTS SENDS
IN SUB OUT
Full Range
IN CH 1 OUT
Post Array
IN CH 2 OUT
Post Array
IN CH 3
Post HPF
Digital Delay
Digital Delay/EQ
2 In x 6 Out
Signal Flow for a Typical
Integrated Reinforcement System
Because the M2D is compatible with most other Meyer Sound reinforcement loudspeakers, sound designers have maximum freedom to
customize systems for their needs. This block diagram illustrates the signal flow for a typical integrated sound reinforcement system
using 12 M2Ds per side for the main arrays.
