S7065
Version 1.0a
Copyright
Copyright © MiTAC Computer Corporation, 2012. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
®
TYAN
is a trademark of MiTAC Computer Corporation
®
®
Intel
is a trademark of Intel
Corporation.
®
®
AMI
, AMIBIOS
and combinations thereof are trademarks of AMI Technologies.
®
®
Microsoft
, Windows
are trademarks of Microsoft Corporation.
®
Aspeed
is a trademark of Aspeed Technology Inc.
Notice
Information contained in this document is furnished by MiTAC Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
®
warranty, relating to sale and/or use of TYAN
products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will MiTAC be held liable for any direct
or indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

Advertisement

Table of Contents
loading

Summary of Contents for TYAN S7065

  • Page 1 Corporation and has been reviewed for accuracy and reliability prior to printing. MiTAC assumes no liability whatsoever, and disclaims any express or implied ® warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability. MiTAC retains the right to make changes to product descriptions and/or specifications at any time, without notice.
  • Page 2: About This Guide

    Appendix: Fan and Temp Sensors This section aims to help readers identify the locations of some specific Fan and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. http://www.TYAN.com...
  • Page 3: Table Of Contents

    3.10 - Save & Exit Menu ..................95 3.11 - Event Logs ....................97 Chapter 4: Diagnostics ..............99 4.1 - Flash Utility....................99 4.2 - AMIBIOS Post Code (Aptio) ..............100 Appendix: Fan and Temp Sensors ..........107 Glossary.................... 111 Technical Support ................117 http://www.TYAN.com...
  • Page 4: Before You Begin

    S7065WA2NRF/MB,R1.0,TYAN 6x Serial ATA TF-CABLE ASSY;SBU,SATA- 422736300010 Cable 500MM,S2865 1x I/O TF-I/O SHIELDING 340T48000001 shielding ASSY;SBU,SGCC,S7065 TF-SINGLE 1x S7065 Quick PAGE;SBU,V1.0,Quick Installation 5618T4800001 Installation guide Guide, D2184-100,Color printing,S7065 ® 1x TYAN Driver TFSOFTWARE;SBU,TYAN Driver 5651T4630005 CD FOR INTEL C600 Series...
  • Page 5: Congratulations

    32 and 64-bit computing, high-bandwidth memory design, and lightning-fast PCI-E bus implementation. The S7065 not only empowers you in today’s demanding IT environment but also offers a smooth path for future application upgradeability. All of these rich feature sets provides the S7065 with the power and flexibility to meet demanding requirements for today’s IT environments.
  • Page 6 Brand / ROM size AMI / 8MB Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 BIOS /PXE boot / ACPI 2.0 power management /Power on Feature mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types http://www.TYAN.com...
  • Page 7 Package Installation CD (1) TYAN installation CD Contains I/O Shield (1) I/O Shield Cable SATA (1) SATA signal cable TYAN S7065 (S7065WA2NRF)            Supported CPU Intel Xeon Processor E5-2600 Series Series Socket Type / Q'ty (2) LGA2011 Thermal Design Processor...
  • Page 8 Brand / ROM size AMI / 8MB Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 BIOS /PXE boot / ACPI 2.0 power management /Power on Feature mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types http://www.TYAN.com...
  • Page 9: Software Specifications

    ’s Website at http://www.TYAN.com. There you ® can find information on all of TYAN ’s products with FAQs, online manuals and BIOS upgrades and more. 1.3 - Software Specifications ® For OS (operation system) support, please check the TYAN website for the latest information. http://www.TYAN.com...
  • Page 10 NOTE http://www.TYAN.com...
  • Page 11: Chapter 2: Board Installation

    Unplug the power from your computer power supply and then touch a safely grounded object to release static charge (i.e. power supply ® case). For the safest conditions, TYAN recommends wearing a static safety wrist strap. (2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the board in any way.
  • Page 12: Board Image

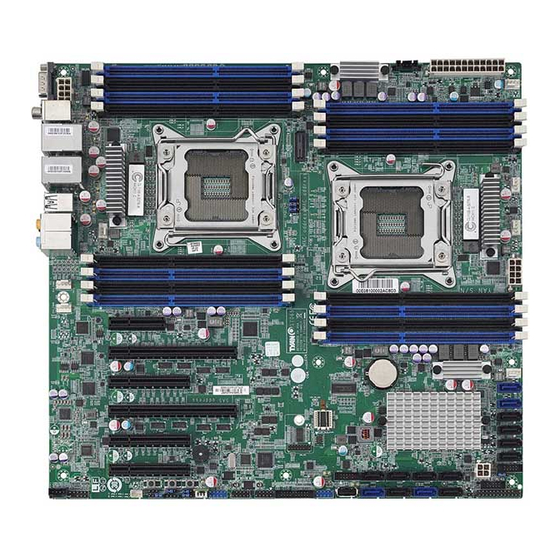

    2.1 - Board Image S7065 This diagram is representative of the latest motherboard revision available at the time of publishing. The board you receive may not look exactly like the above diagram. http://www.TYAN.com...
  • Page 13: Block Diagram

    2.2 - Block Diagram S7065 Block Diagram http://www.TYAN.com...
  • Page 14: Board Parts, Jumpers And Connectors

    • The diagram is representative of the latest board revision available at the time of publishing. The board you received may not look exactly like this diagram. Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.TYAN.com...
  • Page 15 Intruder Header 3PHD_1/2/3 CPU XDP Bypass Jumper 3PHD_4 ME Recovery Mode Jumper 3PHD_5 BIOS Recovery Mode Jumper 3PHD_8 Security Override Jumper 4PHD_11 BUZZER disable Jumper DBG_HD1 TYAN Module Header SATA0/SATA1 SATA3.0 Connector SATA2/SATA5 SATA2.0 Connector SAS0~7 PCH SAS Connector http://www.TYAN.com...
  • Page 16 Jumper Placement SYS_FAN1 SYS_FAN2 CPU1_FAN CPU0_FAN SYS_FAN5 SYS_FAN4 SYS_FAN3 CD_HD1 A_USB1 FAN_HDR1 http://www.TYAN.com...
  • Page 17 FAN_HDR1: FAN Connector for Barebone Signal Signal TACH1 TACH6 TACH2 TACH7 TACH3 TACH8 TACH4 TACH9 TACH5 TACH10 PWM2 PWM1 TACH11 TACH12 VCC3_AUX PWM3 A_USB1: Vertical TYPE-A USB From PCH Signal USB DATA2- USB DATA2+ CD_HD1: CD Input Header Signal CD_IN_L CD_IN_R http://www.TYAN.com...
  • Page 18 PSMI1 FPIO1 USB2 J176 USB1 http://www.TYAN.com...
  • Page 19 HD_LED+ HWM_FAULT_LED- HD_LED- SYS_FAULT_LED- PWR_SW# LAN1_ACTIVE_LED+ LAN1_ACTIVE_LED- RST_SW# INTRUDER# FPIO_TEMP_IN LAN2_ACTIVE_LED+ NMI_SW# LAN2_ACTIVE_LED- USB1/USB2: Front USB Header Signal Signal USB DATA1- USB DATA2- USBDATA1+ USB DATA2+ J176: Front Panel Audio Signal Signal MIC2-L MIC2-R FP_Present LINE2-R MIC2-JD LINE2_L LINE2-JD http://www.TYAN.com...
  • Page 20 3PHD_3 3PHD_2 3PHD_1 2PHD_1 KEY_1 J177/J178 http://www.TYAN.com...
  • Page 21 XTP_B_P_1 XTP_B_N_1 VCC12_1394 VCC12_1394 KEY1: PCH DYNAMIC SKUING KEY For Upgrade ROM Module Signal FM_SAS_SW_RAID_KEY Patsburg Upgrade ROM Key Installation Follow the steps described later to install the Patsburg Upgrade ROM Key. Take out the Patsburg Upgrade ROM Key. http://www.TYAN.com...
  • Page 22 Locate the Patsburg Upgrade ROM Header. Insert the Upgrade ROM Key in the direction as the arrow shows. You have completed the Patsburg Upgrade ROM Key installation. http://www.TYAN.com...
  • Page 23 CPU1_TDO Default: Only CPU0 3PHD_1 3PHD_2 3PHD_3 Only CPU0 Installed Only CPU1 Installed Both CPU Installed 3PHD_3: CPU XDP bypass Jumper Signal CPU0_TDO CPU1_TDI Default: Only CPU0 3PHD_1 3PHD_2 3PHD_3 Only CPU0 Installed Only CPU1 Installed Both CPU Installed http://www.TYAN.com...
  • Page 24 3PHD_8 3PHD_5 3PHD_4 http://www.TYAN.com...
  • Page 25 3PHD_4: ME RECOVERY MODE Jumper Signal FM_ME_RCVR_N 1-2: Normal Mode (Default) 2-3: ME Recovery Mode 3PHD_5: BIOS RECOVERY Jumper BIOS_RCVR_BOOT_N Signal 1-2: Normal Mode (Default) 2-3: BIOS Recovery mode 3PHD_8: SECURITY OVERRIDE Jumper MFG_MODE_N Signal 1-2: Normal Mode (Default) 2-3: Security Override http://www.TYAN.com...
  • Page 26 DBG HD1 SGPIO1 SGPIO2 SGPIO3 4PHD_11 http://www.TYAN.com...
  • Page 27 SDATA IN SDATA OUT- SLOAD SCLOCK P3V3_AUX HD_ERROR_LED NOTE: SGPIO1 is responsible for SATA port 0~5 SGPIO2 is responsible for SAS 0~3 SGPIO3 is responsible for SAS 4~7 DBG_HD1: TYAN Module Header Signal Signal P3V3 FRAME_N LAD0 LAD1 PLT_RST_N LAD2 LAD3...
  • Page 28 COM1 SATA0 STBY_PW_LED1 SATA1 SATA2 SATA3 SATA4 SATA5 PWR/RST/Clear Button SAS1/SAS3/SAS5/SAS7 SAS0/SAS2/SAS4/SAS6 http://www.TYAN.com...
  • Page 29 Connects to the SATA ready drives via the SATA cable. SATA TX DN SATA TX DP PIN7 PIN1 SYTB_PW_LED1: Stby_PW_LED State Color Description Green System standby power identified System standby power not identified NOTE: The STBY_PW_LED will always be Green when attached with AC cable. http://www.TYAN.com...
  • Page 30 Clear CMOS b. Enter BIOS setup menu and load Default Clear CMOS Settings. Then do a Save and Exit from setup. RST BUTTON : Reset system set Normal (Default) Press the button to reset the system. Reset system http://www.TYAN.com...
  • Page 31: Installing The Processor

    2.4 - Installing the Processor ® Your brand new S7065 motherboard, support both Intel “Sandy Bridge-EP and Ivy Bridge series” processors. Please go to our website for the latest processor support. http://www.tyan.com ® NOTE: TYAN is not liable for damage as a result of operating an unsupported configuration.
  • Page 32 CPU notches. Close the load plate, ensuring that the front edge of the load plate slides under the retention lever. Insert the load lever under the retention tab. http://www.TYAN.com...
  • Page 33 Cautions: The CPU fits in only one correct orientation. Do not force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU.   http://www.TYAN.com...
  • Page 34: Installing The Heatsink

    . Please go to Intel’ s website at www.Intel.com. The following diagram illustrates how to install heat sink onto the CPU of S7065. 1. If a protective film covers the thermal interface material (TIM) on the underside of the heatsink, remove the protective film.
  • Page 35: Thermal Interface Material

    CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure the thermal Interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.TYAN.com...
  • Page 36: Tips On Installing Motherboard In Chassis

    Place 9 screws into the holes indicated by circles to secure the mother board to the chassis. CAUTION: DO NOT overtighten the screws! Doing so can damage the motherboard. http://www.TYAN.com...
  • Page 37 Some chassis’ include plastic studs instead of metal. Although the plastic studs ® are usable, TYAN recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed.
  • Page 38: Installing The Memory

    • Memory DDR3 data transfer rates of 800, 1066, 1333, and 1600 MT/s • All installed memory will automatically be detected and no jumpers or settings need changing. • All memory must be of the same type and density. • Always populate the memory starting from DIMMA0 first. http://www.TYAN.com...
  • Page 39 Recommended Memory Population Table ® To achieve the best performance, TYAN strongly recommended memory installation configuration as listed below: Single CPU Dual CPU Installed installed (CPU0 only) (CPU0 and CPU1) Quantity of memory installed CPU0_DIMMD0 √ √ √ √ √...
  • Page 40 The speeds are estimated targets and will be verified through simulation. For 3SPC/3DPC -Rank Multiplication (RM) >= 2. DDP -Dual Die Package DRAM stacking. P –Planer monolithic DRAM Die. Romley-EP/EX platform does not support 3DPC when using E5-2400 LRDIMMs. http://www.TYAN.com...
  • Page 41 Command Address Timing is 1N. QR RDIMM are supported but not validated by Intel/PMO in a homogenous environment. The coverage will have limited system level testing, no signal integrity testing, and no interoperability testing. The passing QR RDIMMs will be web posted. http://www.TYAN.com...
  • Page 42: Memory Installation Procedure

    DIMMs, or other system components, Failure to do so may cause severe damage to both the motherboard and the components.   Follow these instructions to install memory modules into the S7065. 1. Unlock a DIMM socket by Press the retaining clip outwardly in the following illustration.
  • Page 43: Attaching Drive Cables

    2.9 - Attaching Drive Cables S7065 is equipped with Serial ATA (SATA) channels. Connections for the drives are very simple. There is no need to set Master/Slave jumpers on SATA drives. distributor. Attaching Serial ATA Cables The following illustrates how to make a SATA Cable connection. If you are in need of SATA/SAS cables or power adapters please contact your local sales representative.
  • Page 44: Installing Add-In Cards

    Doing so allows air to circulate within the chassis more easily, thus improving cooling for all installed devices. NOTE: YOU MUST ALWAYS unplug the power connector to the motherboard before performing system hardware changes to avoid damaging the board or expansion device.   http://www.TYAN.com...
  • Page 45: Connecting External Devices

    Your motherboard supports a number of different interfaces through connecting peripherals. See the following diagrams for the details. NOTE: Peripheral devices can be plugged straight into any of these ports but software may be required to complete the installation.   http://www.TYAN.com...
  • Page 46 10/100/1000 Mbps LAN Link/Activity LED Scheme Left LED Right LED (Link/Activity) (Speed) Link Green 10 Mbps Active Blinking Green Link Green Solid Green 100 Mbps Active Blinking Green Solid Green Link Green Solid Yellow 1000 Mbps Active Blinking Green Solid Yellow No Link http://www.TYAN.com...
  • Page 47: Installing The Power Supply

    2.12- Installing the Power Supply There are four (4) power connectors on your S7065. It is required that you have an EPS12V power supply has one 24-pin and two 8-pin connectors. PW1: 24-Pin 12V main PWR Connector Signal Signal +3.3V +3.3V...
  • Page 48: Finishing Up

    In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.TYAN.com...
  • Page 49: Chapter 3: Bios Setup

    Select the previous value/setting of the field <+> Select the next value/setting of the field <F8> Load Fail Safe default configuration values of the menu <F3> Load the Optimal default configuration values of the menu <F4> Save and exit <Enter> Execute command or select submenu http://www.TYAN.com...
  • Page 50: Getting Help

    BIOS menu are continually changing due to the BIOS updating. The BIOS menu provided are the most updated when this manual is written. Please visit ® TYAN ’s website at http://www.TYAN.com for the information of BIOS updating. http://www.TYAN.com...
  • Page 51: Bios Main Menu

    Allow user to set system time and date. The Time is displayed in 24 hours format. The Date can be set from January 1st, 2005 to December 31, 2099 The values set in these two fields take effect immediately. http://www.TYAN.com...
  • Page 52 Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often, a text message will accompany it.   http://www.TYAN.com...
  • Page 53: Bios Advanced Menu

    Selection for RTC Wake Configuration. WHEA Configuration General WHEA Configuration Setting. CPU Configuration CPU Configuration Parameters. Runtime Error Logging Runtime Error Logging Support Setup Options SATA Configuration This menu helps you to set up or change the SATA Configuration. http://www.TYAN.com...
  • Page 54 Info report configure USB Configuration Configure the USB support Watchdog Timer Configuration Configure watchdog Timer H/W Monitor Configuration IPMI configuration including server monitoring and event log Super IO Configuration Configures Super IO Serial Port Console Redirection Redirect Serial Port Console http://www.TYAN.com...
  • Page 55 Enables or disables 64 bit capable devices to be decoded in above 4G address space(only if system supports 64 bit PCI decoding. [Disabled] / [Enabled] Default is [Disabled] Single Root I/O Virtualization Enable or disable single Root I/O virtualization [Disabled] / [Enabled] Default is [Enabled] http://www.TYAN.com...
  • Page 56 [Disabled] / [Enabled] Default is [Enabled] ACPI Sleep State Select the highest ACPI sleep state the system will enter when the suspend button is pressed. [Suspend Disabled] / [S1(CPU Stop Clock)] / [S3(suspend to RAM)] Default is [S3(suspend to RAM)] http://www.TYAN.com...
  • Page 57 :: min :: sec specified [Disabled] / [Enabled] Default is [Disabled] Wake system with Dynamic Time Enable or disable system wake on alarm event. When enabled, system will wake on the hr :: min :: sec specified [Disabled] / [Enabled] Default is [Disabled] http://www.TYAN.com...
  • Page 58 3.6.4 - WHEA Support WHEA Support Enables or disables Windows Hardware Error Architecture. [Disabled] / [Enabled] Default is [Enabled] http://www.TYAN.com...
  • Page 59 [Disabled] / [Enabled] Default is [Enabled] Active Processor Core [All]/[1]/[2]/[3]/[4]/[5]/[6]/[7] Default is [All]   Limit CPUID Maximum [Disabled] / [Enabled] Default is [Disabled] Execute Disable Bit [Disabled] / [Enabled] Default is [Enabled] Hardware Prefetcher [Disabled] / [Enabled] Default is [Enabled]   http://www.TYAN.com...
  • Page 60 When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. NOTE: Once the lock bit is set, the contents of this register can not be modified until S5 reset occurs. [Disabled] / [Enabled] Default is [Enabled] http://www.TYAN.com...
  • Page 61 3.6.5.1 – Socket0 CPU Configuration Read only http://www.TYAN.com...
  • Page 62 3.6.5.2 – Socket1 CPU Configuration Read Only http://www.TYAN.com...
  • Page 63 Default is [Balanced Performance]   Factory Long Duration Read only. Long Duration power Time window which the long duration power is maintained. Factory Long Duration Read only. Long Duration Maintained Time window which the long duration power is maintained. http://www.TYAN.com...
  • Page 64 Recommended short duration power limit Read only. Short duration power limit Short duration power limit in Watts.   3.6.6 – Runtime Error Logging Configuration Runtime Error Logging Support Enable/Disable Runtime Error Logging Support. [Enabled] / [Disabled] Default is [Disabled] http://www.TYAN.com...
  • Page 65 3.6.7 - SATA Configuration   External SATA port0/1/2/3/4/5 Enable/Disable SATA Ports Hot Plug Support. [Enabled] / [Disabled] Default is [Disabled] http://www.TYAN.com...
  • Page 66 Agressive Link Power Management [Enabled] / [Disabled] Default is [Enabled] Port1/2/3/4/5 Hot Plug [Enabled] / [Disabled] Default is [Disabled] External SATA Port 0/1/2/3/4/5 [Enabled] / [Disabled] Default is [Disabled] Staggered Spin-up AHCI Supports Staggered Spin-up [Enabled] / [Disabled] Default is [Disabled] http://www.TYAN.com...
  • Page 67 3.6.8 - SAS Configuration Read only. http://www.TYAN.com...
  • Page 68 3.6.9 Info Report Configuration Post Report Post report support enabled/disabled [Enabled] / [Disabled] Default is [Enabled] Delay Time Post report support enabled/disabled [0]/[1]/[2]/[3]/[4]/[5]/[6]/[7]/[8]/[9]/[10]/[Until press ESC] Default is [2] Summary Screen [Enabled] / [Disabled] Default is [Disabled] http://www.TYAN.com...
  • Page 69: Usb Configuration

    EHCI Hand-off [Disabled] / [Enabled] Default is [Disabled] Port 60/ 64 Emulation Enables IO port 60h/64h emulation support This should be enabled for the Complete USB keyboard legacy support for non-USB aware OSes. [Disabled] / [Enabled] Default is [Enabled] http://www.TYAN.com...
  • Page 70 3.6.11– Watchdog Timer Configuration Watchdog mode [Disable] / [Post] / [OS] / [Power ON] Default is [Disabled] http://www.TYAN.com...
  • Page 71 3.6.12 – Hardware Health Configuration http://www.TYAN.com...
  • Page 72 The disable meaning is FAN Speed running FULL ON Duty Cycle [30% Duty Cycle] / [45% Duty Cycle] / [60% Duty Cycle] Default is [30% Duty Cycle] Beep and warning LED [Enabled] / [Disabled] Default is [Enabled] *The Fan data need set Auto Fan to [Enabled]’ http://www.TYAN.com...
  • Page 73 3.6.13 Super I/O Configuration Super IO Chip Read only. http://www.TYAN.com...
  • Page 74 Default is [Enabled] Device Settings Read only. It can not be modified in user mode. Change/Settings Select an optimal setting for super I/O device. [Auto] / [I/O=3F8h;IRQ=4] / [ I/O=3F8h;IRQ=3,4,5,6,7,8,9,10,11,12]/ [ I/O=2F8h;IRQ=3,4,5,6,7,8,9,10,11,12] / [ I/O=3E8h;IRQ=3,4,5,6,7,8,9,10,11,12]/ [ I/O=2E8h;IRQ=3,4,5,6,7,8,9,10,11,12] Default is [Auto] http://www.TYAN.com...
  • Page 75 Console Redirection Console redirection enable or disable. [Disabled] / [Enabled] Default is [Disabled] Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. http://www.TYAN.com...
  • Page 76 Even: Parity bit is 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num of 1’s in the data bits is odd. [None] / [Even] / [Odd] / [Mark] / [Space] Default is [None] http://www.TYAN.com...
  • Page 77 On Legacy OS, the number of rows and columns supported redirection. [80x24] / [80x25] Default is [80x24] Putty KeyPad Select FunctionKey and KeyPad on Putty. [VT100] / [LINUX] / [XTERMR6] / [SCO] / [ESCN] / [VT400] Default is [VT100] http://www.TYAN.com...
  • Page 78 VT-UTF8 is the preferred terminal type for out-of-band management. The next best choice is VT100+ and then VT100. See above, in Console Redirection Settings page, for more Help with Terminal Type/Emulation. [VT-UTF8] / [VT100] / [VT100+] / [ANSI] Default is [VT-UTF8] http://www.TYAN.com...
  • Page 79 ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. [None] / [Hardware RTS/CTS] / [SoftwareXon/Xoff] Default is [None] Data Bits / Parity / Stop Bits Read only. http://www.TYAN.com...
  • Page 80: Chipset Menu

    3.7 - Chipset Menu North Bridge North Bridge Parameters. South Bridge South Bridge Parameters. Onboard Device Configuration Configure Onboard Device ME Subsystem ME Subsystem Configuration http://www.TYAN.com...
  • Page 81 MPST Support Enable or disable MPST Support. Along with enabling MPST Support, it also requires NUMA to be enabled and channel Interleaving to be set to 1-way for MPST tables to be published. [Enabled] / [Disabled] Default is [Disabled] http://www.TYAN.com...
  • Page 82 Default is [Auto] Rank Interleaving Select different rank Interleaving setting. [Auto] / [1 Way] / [2 Way] / [4 Way] / [8 Way] Default is [Auto] Memory ECC Enable/Disable Memory ECC. [Enabled] / [Disabled] Default is [Disabled] Default is [Enabled] http://www.TYAN.com...
  • Page 83 Select number of 1GB contiguous regions to be assigned MMIOH space per CPU. [64G] / [1G] / [2G] / [4G] / [8G] / [16G] / [32G] / [64G] / [128G] Default is [64G] MMCFG Base Select the MMCFG BASE Values. [0x80000000] / [0xA0000000] / [0xC0000000] Default is [0x80000000] http://www.TYAN.com...
  • Page 84 Enable/Disable VT-d Engine Interrupt Remapping Support. [Enabled] / [Disabled] Default is [Enabled] Coherency Support Enable/Disable VT-d Engine Coherency Support. [Disabled] / [Enabled] Default is [Disabled] ATS Support Enable/Disable VT-d Engine Address Translation Services support. [Disabled] / [Enabled] Default is [Disabled] http://www.TYAN.com...
  • Page 85 Select the QPI link speed as either the Fast Mode or the Slow Mode. [Fast] / [Slow] Default is [Fast] QPI Link Frequency Select Select the QPI Link Frequency. [Auto] / [6.4GT/s] / [7.2GT/s] / [8.0GT/s] Default is [Auto] QPI LinkOs Enable/Disable QPI LinkOs. [Enabled] / [Disabled] Default is [Disabled] http://www.TYAN.com...
  • Page 86 QPI LinkOp Enable/Disable QPI LinkOp. [Enabled] / [Disabled] Default is [Disabled] QPI Link1 Enable/Disable QPI Link1. [Enabled] / [Disabled] Default is [Enabled] http://www.TYAN.com...
  • Page 87 3.7.1.3 DIMM Information Submenu Read only. http://www.TYAN.com...
  • Page 88 Restore AC Power Loss [Power Off] / [ Power On]/[ Last State] Default is [Power Off] Deep Sx Deep Sx configuration. NOTE: Mobile platforms support Deep S4/S5 in DC only and Desktop platforms support Deep S4/S5 in AC only. http://www.TYAN.com...
  • Page 89 Azalia internal HDMI [Enabled] / [Disabled] Default is [Disabled] NMI Button [Enabled] / [Disabled] Default is [Enabled] Chassis Intrusion Enabled: When a chassis open event is detected, the BIOS will display the event. [Enabled] / [Disabled] Default is [Disabled] http://www.TYAN.com...
  • Page 90 Intel LAN 82574 #2 [Enabled with PXE] / [Enabled] / [Disabled] Default is [Enabled] Firewire(1394) Enable/disable firewire(1394) [Enabled] / [Disabled] Default is [Enabled] USB3.0 [Enabled] / [Disabled] Default is [Enabled] Load PCIe slot 1/2/3/4/5/6 OPROM [Enabled] / [Disabled] Default is [Enabled] http://www.TYAN.com...
  • Page 91 3.7.4 – ME Sub- Menu ME Subsystem Me subsystem Help [Enabled] / [Disabled] Default is [Enabled] http://www.TYAN.com...
  • Page 92: Boot Configuration

    Set display mode for option ROM upon request—GA20 can be disabled using BIOS series Always—do not allow disabling GA20; this option is useful when any RT code is executed above IMB. [Force BIOS] / [Keep Current] Default is [Force BIOS] http://www.TYAN.com...
  • Page 93 BIOS reaction on INT19 trapping by option ROM: IMMEDIATE-execute the trap right away; POSTPONED-execute the trap during legacy boot. [Immediate] / [Postponed] Default is [Immediate] Boot Option #1 Select the first boot device. [Device Name] / [Disabled] Default is [Device Name] http://www.TYAN.com...
  • Page 94: Security Menu

    3.9 - Security Menu Password Description Read only. Administrator Password Install or change the password. User Password Install or change the password. http://www.TYAN.com...
  • Page 95: Save & Exit Menu

    Use this option to discard all new setup values that you have made and reset. Save Changes Use this option to save all new setup values that you have made Discard Changes Use this option to load all default failsafe setup values. http://www.TYAN.com...
  • Page 96 Restore Defaults Use this option to restore defaults Save as user Defaults Use this option to save the user defaults Restore user Defaults Use this option to restore the user defaults. http://www.TYAN.com...
  • Page 97: Event Logs

    3.11 - Event Logs http://www.TYAN.com...
  • Page 98 Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation during reset. [NO] / [Yes,next year] / [Yes, every year] Default is [NO] When Log is full Choose options for reactions to a full Smbios Event Log. [Do Nothing] / [Erase Immediately] Default is [Do Nothing] http://www.TYAN.com...
  • Page 99: Chapter 4: Diagnostics

    4.1 - Flash Utility Every BIOS file is unique for the motherboard it was designed for. For Flash Utilities, BIOS downloads, and information on how to properly use the Flash ® Utility with your motherboard, please check the TYAN web site: http://www.TYAN.com/ NOTE:...
  • Page 100: Amibios Post Code (Aptio)

    South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization http://www.TYAN.com...
  • Page 101 CPU post-memory initialization is started. 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode(SMM) initialization 0x37 Post-Memory North Bridge initialization is started. http://www.TYAN.com...
  • Page 102 Reserved for future AMI progress codes S3 Resume Error Codes 0xE8 S3 Resume failed 0xE9 S3 Resume PPI not found 0xEA S3 Resume Boot Script error 0xEB S3 OS wake error 0xEC – 0xEF Reserved for future AMI error codes http://www.TYAN.com...
  • Page 103 CPU DXE initialization (CPU module specific) 0x66 CPU DXE initialization (CPU module specific) 0x67 CPU DXE initialization (CPU module specific) 0x68 PCI host bridge initialization 0x69 North Bridge DXE initialization is started. 0x6A North Bridge DXE SMM initialization is started. http://www.TYAN.com...
  • Page 104 Console Input devices connect 0x99 Super IO initialization 0x9A USB initialization is started. 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect http://www.TYAN.com...
  • Page 105 No Space for Legacy Option ROM 0xD6 No Console Output Devices are found. 0xD7 No Console Input Devices are found. 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error). http://www.TYAN.com...
  • Page 106 System is waking up from the S3 sleep state. 0x40 System is waking up from the S4 sleep state. 0xAC System has transitioned into ACPI mode. Interrupt controller is in APIC mode. 0xAA System has transitioned into ACPI mode. Interrupt controller is in APIC mode. http://www.TYAN.com...
  • Page 107: Appendix: Fan And Temp Sensors

    (rpm) Temp Sensor: PCH_Area_Temp sensor PCI-E_Air_Inlet Temp sensor and CPU1 MOS Area Temp Sensor. They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by Intel, not in Fahrenheit or Celsius. http://www.TYAN.com...
  • Page 108 BIOS Temp Sensor Name Explanation: http://www.TYAN.com...
  • Page 109 Fan speed of SYS_FAN_5 SYS_FAN_6 Fan speed of SYS_FAN_6 SYS_FAN_7 Fan speed of SYS_FAN_7 SYS_FAN_8 Fan speed of SYS_FAN_8 SYS_FAN_9 Fan speed of SYS_FAN_9 SYS_FAN_10 Fan speed of SYS_FAN_10 SYS_FAN_11 Fan speed of SYS_FAN_11 SYS_FAN_12 Fan speed of SYS_FAN_12 http://www.TYAN.com...
  • Page 110 NOTE http://www.TYAN.com...
  • Page 111: Glossary

    The CPU can manipulate data in a buffer before copying it to a disk drive. While this improves system performance (reading to or writing from a disk drive a single time is much faster than doing so repeatedly) there is the possibility of http://www.TYAN.com...
  • Page 112 CPU. This frees up CPU resources for other tasks. As with IRQs, it is vital that you do not double up devices on a single line. Plug-n-Play devices will take care of this for you. http://www.TYAN.com...
  • Page 113 BIOS, it is a ROM chip which can, unlike normal ROM, be updated. This allows you to keep up with changes in the BIOS programs without having to buy a new ® chip. TYAN ’s BIOS updates can be found at http://www.TYAN.com ESCD (Extended System Configuration Data): a format for storing information about Plug-n-Play devices in the system BIOS.
  • Page 114 Plug-n-Play require you to reconfigure your system each time you add or change any part of your hardware. PXE (Preboot Execution Environment): one of four components that together make up the Wired for Management 2.0 baseline specification. PXE was http://www.TYAN.com...
  • Page 115 SDRAM (Static RAM): unlike DRAM, this type of RAM does not need to be refreshed in order to prevent data loss. Thus, it is faster and more expensive. SLI (Scalable Link Interface): NVIDIA SLI technology links two graphics cards together to provide scalability and increased performance. NVIDIA SLI takes http://www.TYAN.com...
  • Page 116 CPUs without damaging the sensitive CPU pins. The CPU is lightly placed in an open ZIF socket, and a lever is pulled down. This shifts the processor over and down, guiding it into the board and locking it into place. http://www.TYAN.com...
  • Page 117: Technical Support

    TYAN serves multiple market segments with the industry's most competitive services to support them. "TYAN's tech support is some of the most impressive we've seen, with great response time and exceptional organization in general" ----Anandtech.com Help Resources: 1.
  • Page 118 Return Merchandise Authorization (RMA) number. The RMA number Should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN® will pay to have the board shipped back to you.   Notice for the USA...
