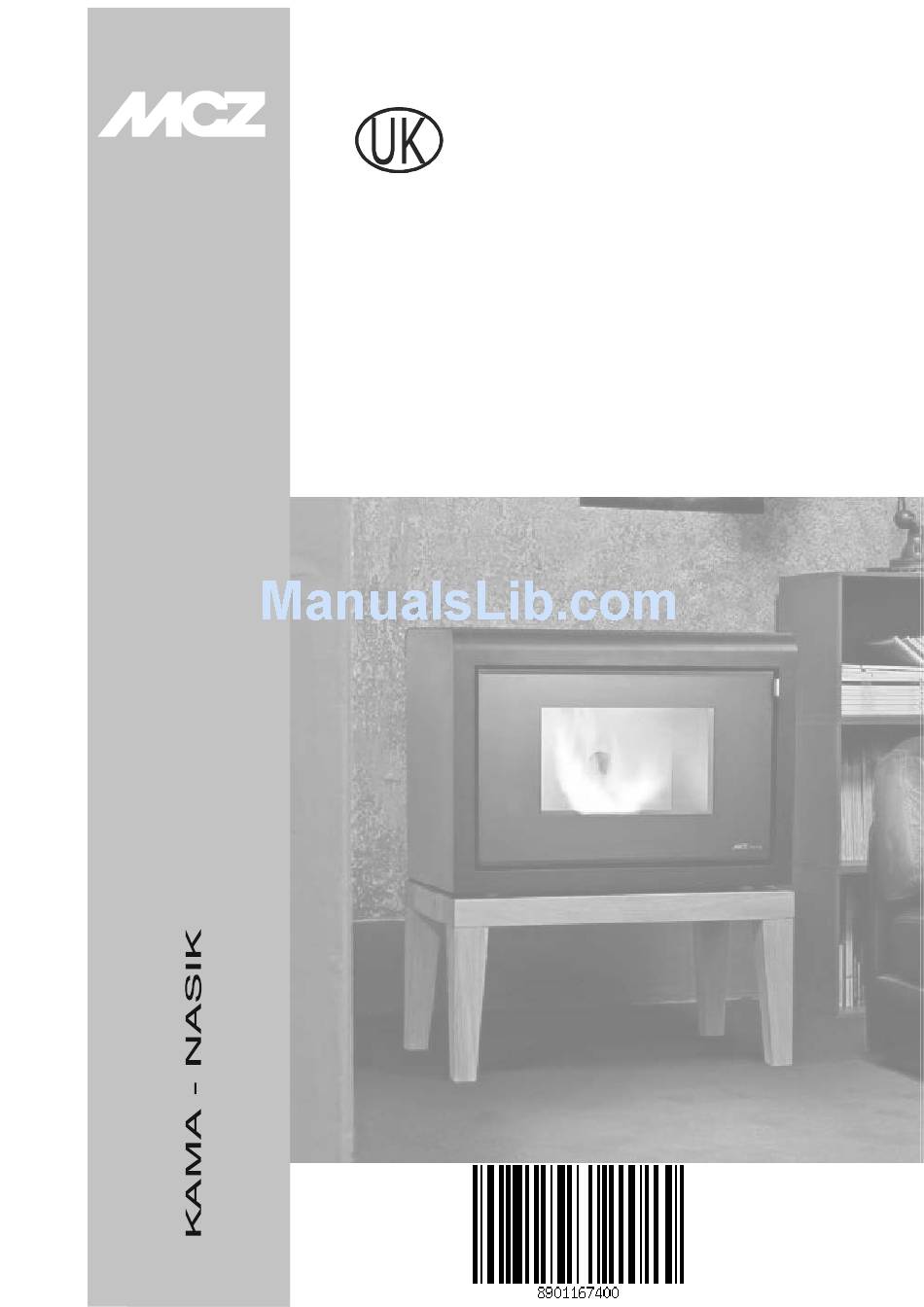

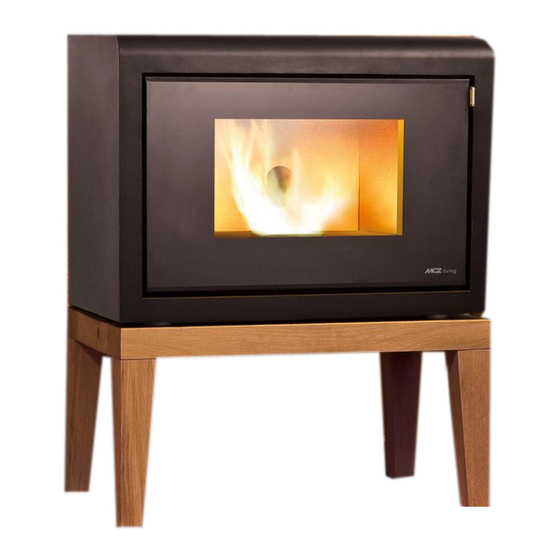

- Page 1 INSTALLATION AND USE MANUAL...
-
Page 2: Table Of Contents
TIMER time frame display ....................... 28 5.7.1. Modifying the TIMER time frames .................... 28 5.7.2. Enabling the TIMER-ECO time frames ..................28 5.7.3. Contents Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... - Page 3 Shutting the stove down (end of season) ................. 38 8.2.6. Check of internal components ....................38 8.2.7. 9. PROBLEMS / CAUSES / SOLUTIONS ....................39 10. ELECTRICAL DIAGRAMS ........................ 41 Contents Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited...
-
Page 4: Introduction
INTRODUCTION ATTENTION Dear Customer, This warning sign indicates that the We wish to thank you for choosing an MCZ product, message to which it refers should be specifically a stove of the MCZ pellet line. carefully read and understood, because... -
Page 5: Warnings And Guarantee Conditions
Do not put any fuels in the hopper but wood pellets. All responsibility for improper use is taken entirely by the user and such use relieves MCZ of any civil or Install the stove in a location with adequate criminal responsibility. -
Page 6: Important Information For Correct Disposal Of The Product In Accordance With Ec Directive 2002/96/Ec
If it gets lost, ask MCZ or your authorised dealer for another copy. The replacement parts will be guaranteed for the remainder of the guarantee period starting from the IMPORTANT INFORMATION FOR 1.3. - Page 7 For all replacement of parts, only original MCZ spare parts must be used. Warnings and guarantee conciliations Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited...
-
Page 8: Theoretical Notions For Installation
Contents: 100% untreated wood, with no added bonding substances (bark percentage 5% max) Packaging: in sacks made from ecologically compatible or biologically decomposing material Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 9: Precautions For Installation
The electrical plug must be positioned where it is always accessible. Otherwise, during installation, provide suitable devices for disconnection for the power supply network compliance with standards on electrical systems Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 10: Operating Area
If the flooring is made of wood, provide a floor protection surface in compliance with current national standards. Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 11: Connection To The External Air Intake
The combustion chamber works in low pressure. The smoke duct for the discharge of fumes will also be under low pressure when connected to an efficient flue pipe as directed. Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... - Page 12 CONNECT THE FLUE PIPE AND CANNOT ITSELF BE CONSIDERED AS A FLUE PIPE. The flue pipe has the following characteristics described in subsequent paragraphs Example of installation of PowerSystem Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited...
-
Page 13: Connection To The Flue Pipe
You must ensure that a windproof cowl should be fitted which complies with the standards in force. 1) Windproof cowl 2) Flue pipe 3) Inspection Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 14: Operating Problems Caused By Draught Defects In The Flue
Hazardous conditions can only be overcome by suitable setting-up of the stove carried out by qualified MCZ personnel. Theoretical notions for installation Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 15: Installation And Assembly
Chapter 3 INSTALLATION AND USE MANUAL page 3. INSTALLATION AND ASSEMBLY DRAWINGS (measurements in millimetres) 3.1. 3.1.1. Dimension Kama Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 16: Dimension Nasik
Chapter 3 INSTALLATION AND USE MANUAL page 3.1.2. Dimension Nasik Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 17: Technical Characteristics
* Data that may vary depending on the type of pellets used. **Heatable volume based on demand of cal/m 40-35-30 (respectively 40-35-30 Kcal/h for m Appliance suitable for installation in a shared flue. Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 18: Preparation And Unpack Ing
(G) fully to secure the grille in place. When fitting the grille, take care not to scratch the paint on the legs and structure of the stove. Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... - Page 19 Turn the side until it is parallel with the profile of the front and tighten the screws (I) to secure it in place. Reposition the ventilation grille, performing the tasks for its removal in the reverse order. Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited...
-
Page 20: Installation Of Air Filter
Never operate the stove without the air filter. MCZ Installation/removal of air filter shall not be held liable for damage to internal components if this instruction is not followed. Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 21: Making The Electrical Connections
Using the remaining screws and washers (4), secure the bracket to the wall and secure the sliding of the two brackets by tightening the hexagon-headed bolts (2). Stove secured to the wall Installation and fitting Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 22: Operation
Open the door using the handle provided and remove any components which might burn from the fire box and from the glass (various instructions and adhesive labels). Opening of fire door Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 23: Loading The Pellets
When filling, do not let the sack of pellets touch any hot surfaces. Do not place any type of fuel in the hopper other than pellets that are compliant with the specifications provided previously. Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 24: Lcd Remote Control
Graphic appearance 5.2. In the instructions herein, we will often refer to the indications of the buttons shown in the figure. For simplicity, always keep the figure to hand. Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 25: Operation Of The Remote Control
The ventilation can be adjusted to 5 levels + auto (see AUTO paragraph 5.6.1). Figure 2 FIG.2 Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 26: Timer Mode (Indicated By Timer)
(button A) or the next valid time frame is started. The use the TIMER combined with ECO mode requires good knowledge of the operating logic FIG.5 of the product. Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 27: Various Settings
(figure 7). To disable the SLEEP function simply access the adjustment setting, decrease the time until dashes appear and confirm. FIG.7 Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 28: Timer Time Frame Display
TIMER If the OFF option is confirmed the TIMER disables and the product returns to ECO mode operation without any time frames enabled. TIMER FIG.9 Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 29: Emergency Panel
G. button to connect the stove to a new remote control (by means of a procedure explained below) TO OPERATE THE STOVE WITH THE REMOTE CONTROL, SELECTOR "D" MUST BE PLACED ON “REMOTE” Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 30: Settings To Carry Out Before First Lighting
To shut down the stove, place selector “D” to OFF. Once the remote control is working again, remember to put selector "D" back in the "REMOTE" position. Otherwise the stove will disregard inputs from the remote control. Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 31: Safety Devices
Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 32: Alarm Signalling
Check and clean flue system as necessary Check that the smoke fan compartment is clean and if it is dirt that is blocking it. The smoke extractor is not running. Smoke fan failure. Replacement Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... - Page 33 Periodic maintenance warning before the maintenance have elapsed and a new maintenance intervention is necessary. Contact a specialist MCZ technician. Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited...
-
Page 34: Exiting Alarm Condition
MCZ technician). Only after the cause of the blockage has been permanently eliminated can a fresh attempt to relight the stove be made. Operation Technical service - Rights reserved MCZ Group S.p.A. - Reproduction prohibited... -
Page 35: Maintenance And Cleaning
8.1.3. Cleaning the glass When the glass is cold, open the fire door. Spray a small amount of a special spray detergent (see MCZ accessories) on a soft cloth, preferably cotton, and clean the glass. Do not spray the product directly onto the glass. -
Page 36: Periodic Cleaning
ATTENTION! Do not use alcohol. Do not spray the detergent directly onto the glass. MCZ will not be held liable for damage to the silkscreen printing of the glass if these instructions are disregarded. Do not clean the painted parts. -
Page 37: Cleaning Of The Heat Exchanger
MCZ suggests relying on an authorized service centre for end-of-season cleaning and maintenance, who will carry out all of the previously mentioned work and make a general check of the stove's components. Maintenance and cleaning Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 38: Shutting The Stove Down (End Of Season)
Ash drawer ● Glass ● Lower heat exchanger ● Complete exchanger ● Smoke duct ● Door seal ● Air filter ● Flue pipe ● Remote control battery Maintenance and cleaning Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... -
Page 39: Problems / Causes / Solutions
Check the state of the door gaskets. Pellets damp or unsuitable. Change the type of pellet. Smoke extractor motor broken. Check the motor and replace if necessary. Maintenance and cleaning Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... - Page 40 The operations marked in bold type must be carried out by specialised MCZ personnel. The manufacturer refuses to accept any responsibility and the guarantee lapses if this condition is not respected. Maintenance and cleaning Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited...
-
Page 41: Electrical Diagrams
6. Ignition plug 12. Air flow sensor 7. Flue-gas extractor fan N.B. The electrical wiring of the single components includes pre-wired connectors which are of different sizes. Electrical diagrams and spare parts Technical service - Rights reserved MCZ S.p.A. - Reproduction prohibited... - Page 42 MCZ GROUP S.p.A. Via La Croce n°8 33074 Vigonovo di Fontanafredda (PN) – ITALY Telephone: 0434/599599 r.a. Fax: 0434/599598 Internet: www.mcz.it e-mail: mcz@mcz.it 8901167400 Rev 0 12/2011...
