MCZ TECLA AIR 6 M1 Use And Installation Manual

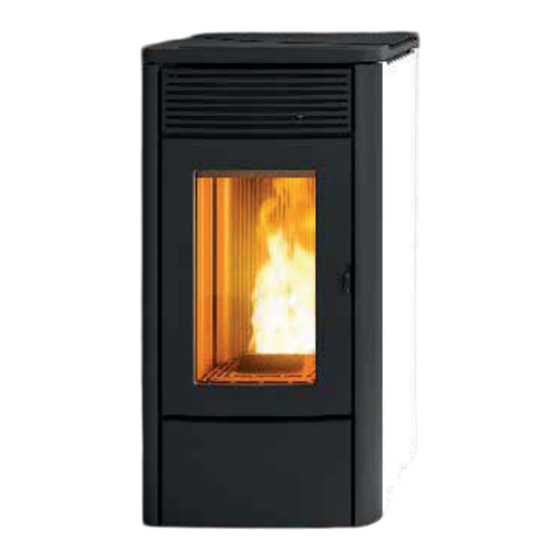

Sealed pellet stove
Hide thumbs Also See for TECLA AIR 6 M1:
Table of Contents

Advertisement

Quick Links

Download this manual
USE AND INSTALLATION MANUAL
GB
SEALED PELLET STOVE
TECLA AIR 6 M1
ALYSSA AIR 6 M1
PART 1 - REGULATIONS AND ASSEMBLY
Instructions in English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TECLA AIR 6 M1 and is the answer not in the manual?

Questions and answers

Related Manuals for MCZ TECLA AIR 6 M1

Summary of Contents for MCZ TECLA AIR 6 M1

  • Page 1 USE AND INSTALLATION MANUAL SEALED PELLET STOVE TECLA AIR 6 M1 ALYSSA AIR 6 M1 PART 1 - REGULATIONS AND ASSEMBLY Instructions in English...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION ......................9 3-DRAWINGS AND TECHNICAL FEATURES ..............19 4-UNPACKING ......................23 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY ..............27 6-TECLA STOVE ASSEMBLY/DISASSEMBLY ..............41 7-DOOR OPENING .....................50 8-ELECTRICAL CONNECTION..................51 9-LOADING THE PELLETS ...................52...

  • Page 3: Introduction

    No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/or electronic form or media, for photocopies, recordings or other, without the prior written authorisation of MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The owner company reserves its rights according to law.

  • Page 4: 1-Warnings And Warranty Conditions

    1-WARNINGS AND WARRANTY CONDITIONS SAFETY WARNINGS • The installation, electrical connection, operating test and maintenance must only be carried out by a qualified operator. • Install the product in compliance with the laws and regulations in force. • Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator.
  • Page 5 1-WARNINGS AND WARRANTY CONDITIONS • Do not dry laundry on the product. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard. • The product maintenance operations must be exclusively carried out by a qualified operator on a yearly basis.
  • Page 6 1-WARNINGS AND WARRANTY CONDITIONS • Do not allow the product to come into contact with water, it contains live electrical parts. • Do not wash the product with water (or other liquids) as they could penetrate inside the unit, damaging the electrical insulation with the risk of electrocution. • Do not use detergents to wash the stove, they could damage the aesthetic parts of the product.
  • Page 7 1-WARNINGS AND WARRANTY CONDITIONS • The sound pressure level of this appliance does not exceed 70 dB(A). • Live electrical parts: only power the product once it has been fully assembled. • Disconnect the product from the 230V power supply before performing any maintenance operations.

  • Page 8: Intended Use

    1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: • Please contact the retailer or qualified personnel for any information, problem or malfunction. • Only use the fuel specified by the manufacturer. • When the product is switched on for the first time, it is normal for it to emit smoke due to the paint heating up for the first time. Therefore make sure the room it is installed in is well-ventilated.
  • Page 9 1-WARNINGS AND WARRANTY CONDITIONS WARRANTY CONDITIONS For the duration, terms, conditions, limitations of the MCZ conventional warranty, please refer to the specific warranty card that is included with the product. Information for management of waste electrical and electronic equipment containing batteries and accumulators This symbol appears on the product, on the batteries, on the accumulators or on their packaging or on their documentation;...

  • Page 10: Warnings For The Correct Disposal Of The Product

    1-WARNINGS AND WARRANTY CONDITIONS WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws related to safety and environmental protection in force in his/her country. At the end of its working life, the product must not be disposed of as urban waste.

  • Page 11: 2-Installation

    2-INSTALLATION LEGENDA WHERE TO DISPOSE MATERIALS Metal Glass If there is any, to be disposed of separately based on the material used: Tiles or ceramics OUTER CLADDING Stone Glass ceramic (fire door): to be disposed of with inert or mixed waste If there is any, to be disposed of separately based on the material used: Tempered glass (oven door): to be disposed...
  • Page 12 2-INSTALLATION Our solid bio-combustible products, (hereinafter called “Products”) are designed and manufactured in compliance with one of the following European standard harmonised to Regulation (UE) no. 305/2011 for construction products: EN 14785: “Residential space heating appliances fired by wood pellets” EN 13240: “Room heaters fired by solid fuel.”...
  • Page 13 2-INSTALLATION The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS The pellet is obtained from natural dried wood sawdust (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself, without glue or binders.
  • Page 14 2-INSTALLATION FOREWORD The heating system (generator + combustion air supply + combustion product expulsion system + any hydraulic/aeraulic system) must be installed in compliance with the laws and regulations in force , and carried out by a qualified technician, who must issue a declaration of conformity of the system to the system manager and shall undertake full responsibility for final installation and consequent good operation of the product.

  • Page 15: Minimum Distances

    2-INSTALLATION MINIMUM DISTANCES Observe the distances from flammable objects (sofas, furniture, wood panelling, etc..) as specified in the following diagram. If objects considered to be particularly sensitive to heat are present, such as furniture, curtains or sofas, as a precaution, increase the stove clearances substantially to avoid possible deterioration due to the effect of heat.
  • Page 16 2-INSTALLATION In any case, ensure adequate distance to facilitate access during cleaning and extraordinary maintenance. If this is not possible, it must still be possible to distance the product from adjacent walls/elements. This operation must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration.
  • Page 17 2-INSTALLATION Below 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Above 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 18 2-INSTALLATION Preparing the smoke expulsion system The combustion product expulsion system is a particularly important element for the proper operation of the appliance and must be correctly sized according to EN 13384-1. Its creation/adaptation/verification must always be carried out by a legally qualified operator and must comply with the regulations in force in the country where the appliance is installed.
  • Page 19 2-INSTALLATION Chimneypot The chimneypot, meaning the end part of the flue, must meet the following characteristics: • the smoke outlet section must be at least double the internal section of the chimney; • prevent the penetration of rain or snow; •...

  • Page 20: Examples Of Installation

    2-INSTALLATION EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) 1. Flue installation with hole for the passage of the pipe increased by: • minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or •...

  • Page 21: 3-Drawings And Technical Features

    3-DRAWINGS AND TECHNICAL FEATURES DRAWINGS AND CHARACTERISTICS ALYSSA AIR 6 M1 STOVE DIMENSIONS Ø50 Ø80 Ø80 Ø50 Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 22 3-DRAWINGS AND TECHNICAL FEATURES TECLA AIR 6 M1 STOVE DIMENSIONS Ø50 Ø80 152 123 Ø80 Ø50...

  • Page 23: Technical Specifications

    3-DRAWINGS AND TECHNICAL FEATURES TECHNICAL SPECIFICATIONS TECLA AIR 6 M1/ALYSSA AIR 6 M1 Energy Efficiency Class Nominal output power 6.3 kW (5418 kcal/h) Minimum output power 2.5 kW (2150 kcal/h) Efficiency at Max 91.5% Efficiency at Min 92.0% Temperature of exhaust smoke at Max 165 °C...
  • Page 24 ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) Manufacturer: MCZ GROUP SpA Trademak: Model Identifier: TECLA AIR 6 M1 / ALYSSA AIR 6 M1 Indirect heating functionality: Direct heat output (space heat output): Indirect heat output (water heat output): CPR harmonised standard:...

  • Page 25: 4-Unpacking

    4-UNPACKING INSTRUCTIONS FOR PACKAGING DISPOSAL The material that the appliance’s packaging is made of must be managed correctly, in order to make collection, reuse, recovery and recycling easier, where possible. The table below illustrates the possible components that the packaging is made of, and the relative instructions for correct disposal. DESCRIPTION CODE MATERIAL SYMBOL...
  • Page 26 4-UNPACKING Handle the product with suitable means paying attention to the applicable safety regulations in force. Do not turn the packaging over and handle the majolica parts with care. The stoves are delivered in a single package with ceramic panels or steel sides packaged together with the structure and placed on top or at the side.
  • Page 27 4-UNPACKING REMOVE THE FIREBOX CAST IRON PANEL CARD- BOARD REMOVING THE FASTENING BRACKETS Remove the stoves from the pallet by removing the two screws “u” and the plate “s” from the stove foot. There are four brackets “s”. Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 28 4-UNPACKING Position the stove and connect it to the flue. Use the 4 adjustable feet (J) to get the stove correctly levelled so that the smoke outlet is lined up with the connecting pipe. If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the flue), take utmost care to make sure that the joint is not forced.

  • Page 29: 5-Alyssa Stove Assembly/Disassembly

    5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY On delivery, the Alyssa stove has no ceramic cladding, as shown in the image below. Take the box with the ceramic panels and the hardware kit (figure below) and prepare them for installation. The ceramics are already completely assembled and ready to be installed on the stove.

  • Page 30: Removing The Top

    5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY REMOVING THE TOP Lift the pellet loading door “L” and remove the top “H” from the structure.
  • Page 31 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY DISASSEMBLING THE FRONT UPPER PANEL In the event of cleaning operations, it may be necessary to remove the upper front panel “ M “; proceed as follows: • Undo the two screws “k” and remove the upper front panel “M” •...
  • Page 32 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY DISASSEMBLING THE FRONT LOWER PANEL In case of maintenance and/or interventions it is possible to remove the lower panel “P”. Proceed as follows: • Open the firebox door ”F” • Remove the two screws “x”...
  • Page 33 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • Lift the panel “P” so as to let out the pins “s” present in the structure, from the holes “v” on the lower panel “P” • place the panel in a safe place The lower panel “P” can also be removed with installed ceramic sides.
  • Page 34 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY ALYSSA STOVE CERAMIC CLADDING ASSEMBLY Before mounting the ceramics it is necessary to mount the support profiles: • take the front profile “B” • insert the plugs “s” which are in the profile “B” in the holes “t” on the structure •...
  • Page 35 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • In the upper part of the stove structure, remove the two front and rear “u” screws and the “z” washers. • Hold the screws “u” and the washers “z” to fix the brackets in the following operations. Technical Dept.
  • Page 36 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • Position the upper plate “D” above the structure and make sure that the holes “t”, on the plate “D”, enter the pins “s” on the front profile “B” positioned in the previous operations • do the same operation at the rear profile “C” •...
  • Page 37 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • At this point take a ceramic “A” and insert it between the two profiles “B” and “C”. • Accompany the ceramic “A” until it rests on the lower part of the stove structure Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 38 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • Place two felt inserts “G” in the upper profile of the ceramic panel “A”...
  • Page 39 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • Take another ceramic panel “A” and insert it between the profiles “B” and “C” paying attention to accompany it to the other ceramic Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 40 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • Take the bracket “E” and position them over the plate “D” to block the ceramics • Fix the bracket “E” using the screw “u” and the washer “z” always removed in the previous operations from the structure of the stove...
  • Page 41 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • Perform the same operations also for mounting the ceramics on the left side. Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 42 5-ALYSSA STOVE ASSEMBLY/DISASSEMBLY • Take the top “H” and put it back on the stove, after lifting the pellet lid “L”...

  • Page 43: 6-Tecla Stove Assembly/Disassembly

    6-TECLA STOVE ASSEMBLY/DISASSEMBLY On delivery, the TECLA stove has no metal cladding and with the top fitted, as shown in the image below. Take the box with the metal sides (figure below) and prepare them for installation. Attention! Carefully handle the metal sides as the paint may be damaged. POS.
  • Page 44 6-TECLA STOVE ASSEMBLY/DISASSEMBLY REMOVING THE TOP Lift the pellet loading door “L” and remove the top “H” from the structure.
  • Page 45 6-TECLA STOVE ASSEMBLY/DISASSEMBLY DISASSEMBLING THE FRONT UPPER PANEL In the event of cleaning operations, it may be necessary to remove the upper front panel “ M “; proceed as follows: • Undo the two screws “k” and remove the upper front panel “M” •...
  • Page 46 6-TECLA STOVE ASSEMBLY/DISASSEMBLY DISASSEMBLING THE FRONT LOWER PANEL In case of maintenance and/or interventions it is possible to remove the lower panel “P”. Proceed as follows: • Open the firebox door ”F” • Remove the two screws “x”...
  • Page 47 6-TECLA STOVE ASSEMBLY/DISASSEMBLY • Lift the panel “P” so as to let out the pins “s” present in the structure, from the holes “v” on the lower panel “P” • place the panel in a safe place The lower panel “P” can also be removed with installed metal sides.
  • Page 48 6-TECLA STOVE ASSEMBLY/DISASSEMBLY TECLA STOVE METAL HOUSING ASSEMBLY Take the right metal side “A” and insert the hooks “z” on the bottom of the panel into the holes “u” in the stove structure.
  • Page 49 6-TECLA STOVE ASSEMBLY/DISASSEMBLY Now place the panel “E” near the structure and fix it with the screws “u” and the washers “z”. Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 50 6-TECLA STOVE ASSEMBLY/DISASSEMBLY Proceed in the same way for mounting the left side “B”.
  • Page 51 6-TECLA STOVE ASSEMBLY/DISASSEMBLY Take the top “H” and put it back on the stove, after lifting the pellet lid “L” Technical Dept. - All rights reserved - Reproduction prohibited...

  • Page 52: 7-Door Opening

    7-DOOR OPENING OPENING THE DOOR OF THE FIREBOX To open the hearth door “F”, insert the handle (supplied) into the hole in the handle “P” and pull it towards you. Attention! Only open the door when the stove is off and cold. OPENING THE PELLET FEEDING COVER To open the pellet feeder cover “L”, hold the handle “K”...

  • Page 53: 8-Electrical Connection

    8-ELECTRICAL CONNECTION ELECTRICAL CONNECTION First connect the power cable to the back of the stove and then to a wall socket. It is recommended to disconnect the power cable when the stove is not used. The cable must never come into contact with the smoke exhaust pipe or any other part of the stove. ELECTRICAL STOVE CONNECTION STOVE POWER SUPPLY Connect the power cable to the back of the stove and then to a wall socket.

  • Page 54: 9-Loading The Pellets

    9-LOADING THE PELLETS LOADING THE PELLETS Fuel is loaded from the upper part of the stove by lifting door “G”. Pour the pellets in slowly so that they are deposited at the bottom of the hopper. If loading pellets when the stove is running, open the door of the tank using the stove mitten that comes with the stove itself.
  • Page 56 MCZ GROUP S.p.A. Via La Croce n°8 33074 Vigonovo di Fontanafredda (PN) – ITALY Telephone: 0434/599599 a.s. Fax: 0434/599598 Internet: www.mcz.it e-mail: mcz@mcz.it 8901912100 REV.0 25/07/2019...

This manual is also suitable for:

Alyssa air 6 m1
