Phytec phyBOARD-Wega-AM335x Quick Start Manual

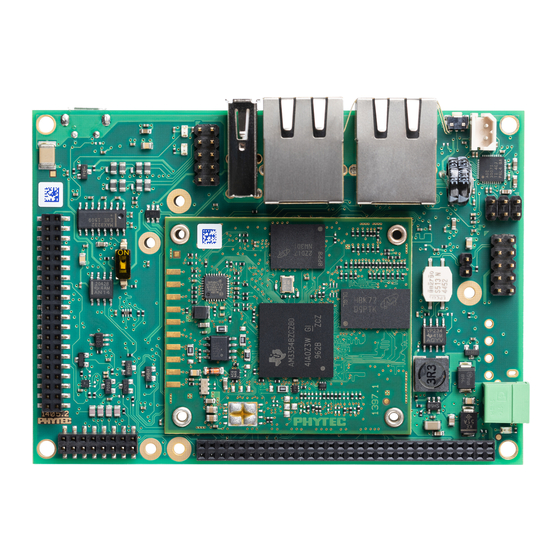

phyBOARD-Wega-AM335x
1) QuickStart Guide
Get your phyBOARD-Wega powered up and connected in just a few steps.
1. Check the kit content (see overview on the right hand side)
2. Have your connection cables at hand: You need an RS232 cable (one-to-one) and an Ethernet
cross-over cable. Phytec offers an accessory kit which includes these cables.
3. Power-up phyBOARD-Wega. For the 24V-kit-version (A):
connector (included in kit) to a 12-24V (+-10%) DC power supply.
For the 5V-kit-version (B): Connect the 2-pin-Phoenix-connector (included in kit) to a 5V
(+-5%) DC power supply. In both cases please note the polarity of the connectors (see picture A/B)!
If you have bought the optional power supply with your Kit, it comes already with the 2-pin-connector wired.
4. Turn your power supply on: Plug the 2-pin-Phoenix connector into the green jack of your Kit.
The Power LED (D58) will light up.
Please note: only the 24V-kit-version
comes with the power adapter board.
optionally 5V Version
Germany France
PHYTEC Messtechnik GmbH PHYTEC France SARL
Robert-Koch-Straße 39 17, place St. Etienne
D-55129 Mainz F-72140 Sillé le Guillaume
Phone: +49 6131 9221-32 Phone:+33 2 43 29 22 33
Fax: +49 6131 9221-33 Fax: +33 2 43 29 22 34
www.phytec.de www.phytec.fr
www.phytec.eu
USA India
PHYTEC America LLC PHYTEC Embedded Pvt. Ltd.
203 Parfitt Way SW #9/1C, 3rd Floor, 3rd Main,
Bainbridge Island, WA 98110 8th Block, Kormangala,
Phone: +1 206 780-9047 Bangalore-560095, Karnataka
Fax: +1 206 780-9135 Phone: +91 8041307589
www.phytec.com www.phytec.in
Connect the 2-pin-Phoenix-
12-24V-kit-version 5V Version
+
A B
GND
+
GND
•
•
• •
• •
••••
••••
•• ••••••
•• ••••••
•••• •••••••
•••• •••••••
• •••• ••••••••••
• •••• ••••••••••
•• •• •
•
•
• •
••••
•• ••••••
•••• •••••••
• •••• ••••••••••
••
•
• •
• • • •
•••• ••••
•• •• •••••• ••••••
•••• •••• ••••••• •••••••
China
• • •••• •••••••••• •••• ••••••••••
PHYTEC Information Technology Co. Ltd.
•• ••
Suite 2611, Regus Anlian Center
• •
Anlian Plaza, 4018 Jin Tian Road
Futian District, Shenzhen 518026
P.R. China
www.phytec.cn

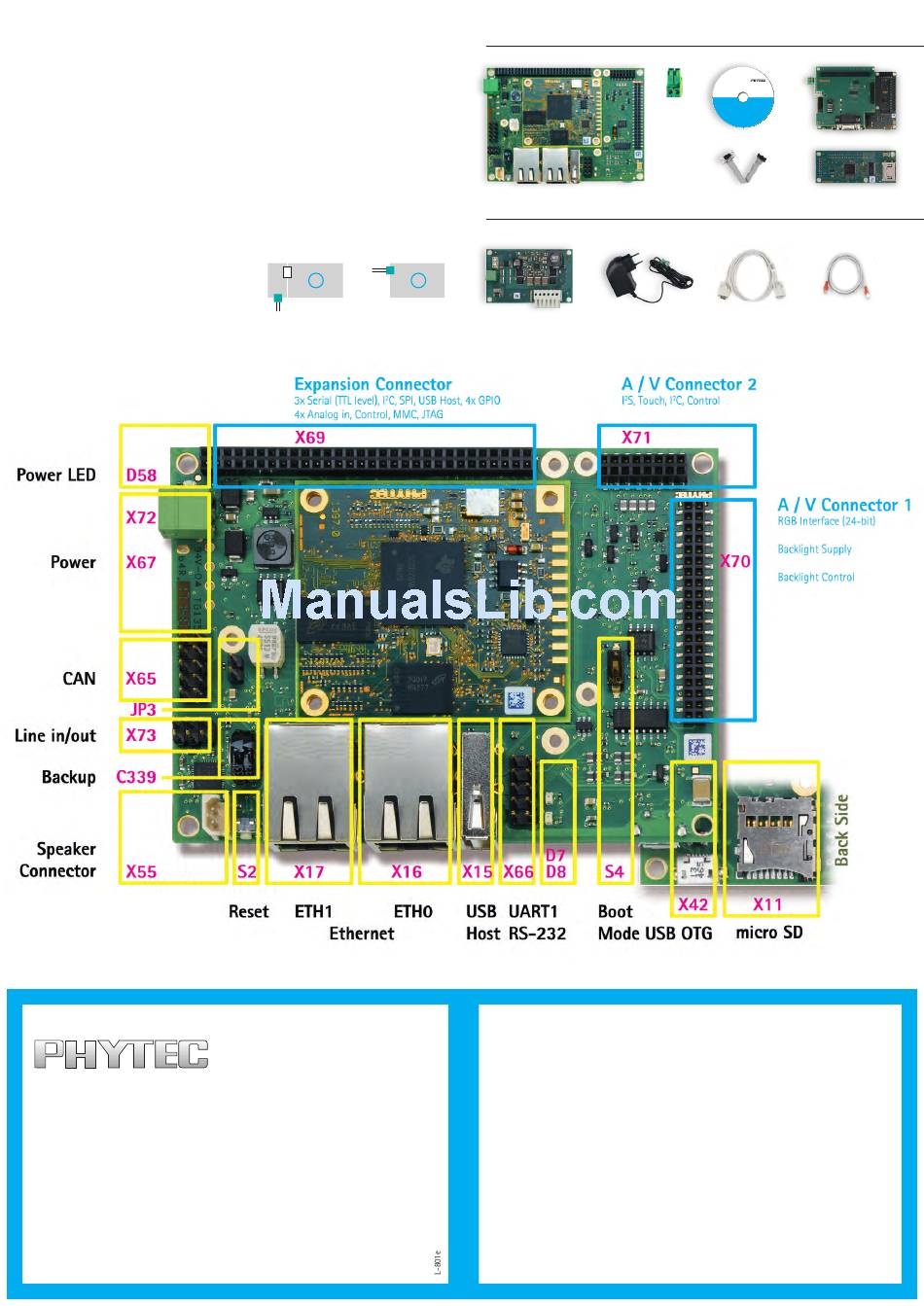

Kit Contents
phyBOARD-Wega-AM335x 2-pin-Phoenix
Optional Accessories Additional Equipment required
Power Module 12-24V Power Adapter 5 V or 24 V
(PEB-POW-01)
Quick
Start
Guide
Live-DVD Eval Module (PEB-EVAL-01)
phyBOARD Single Board Computer
embedded modules
phyBOARD-Wega-AM335x
Germany
PHYTEC Messtechnik GmbH
Robert-Koch-Straße 39
TOOL DVD D-55129 Mainz
Phone: +49 6131 9221-32
SO-530 Fax: +49 6131 9221-33
www.phytec.de
www.phytec.eu
USA India France
PHYTEC America LLC PHYTEC Embedded Pvt. Ltd. PHYTEC France SARL,
203 Parfitt Way SW #9/1, 1st Floor, 3rd Main, 17, place St. Etienne
Bainbridge Island, WA 98110 8th Block, Opp: Police station, F-72140 Sillé le Guillaume
Phone: +1 206 780-9047 Kormangala, Bangalore-560095 Phone:+33 2 43 29 22 33
Fax: +1 206 780-9135 Phone: +91 8041307589 Fax: +33 2 43 29 22 34
www.phytec.com www.phytec.in www.phytec.fr
• •
• • •••• • •
•••• •• •• •••••• ••••••
•••• •••• ••••••• •••••••
• •••• •••••••••• • •••• ••••••••••
•• ••
• •
•
• •
•• •••• ••••••
•••• •••••••
• •••• ••••••••••
••
•
• •
• • • •
•••• ••••
•••• ••••••• •• •••• •• •••••• •••••• •••••••
RS-232 and CAN Adapter • •••• •••••••••• • •••• •••••••••• HDMI Adapter (PEB-AV-01)
•• ••
• •
2 x RS-232 Cable Ethernet Cable
