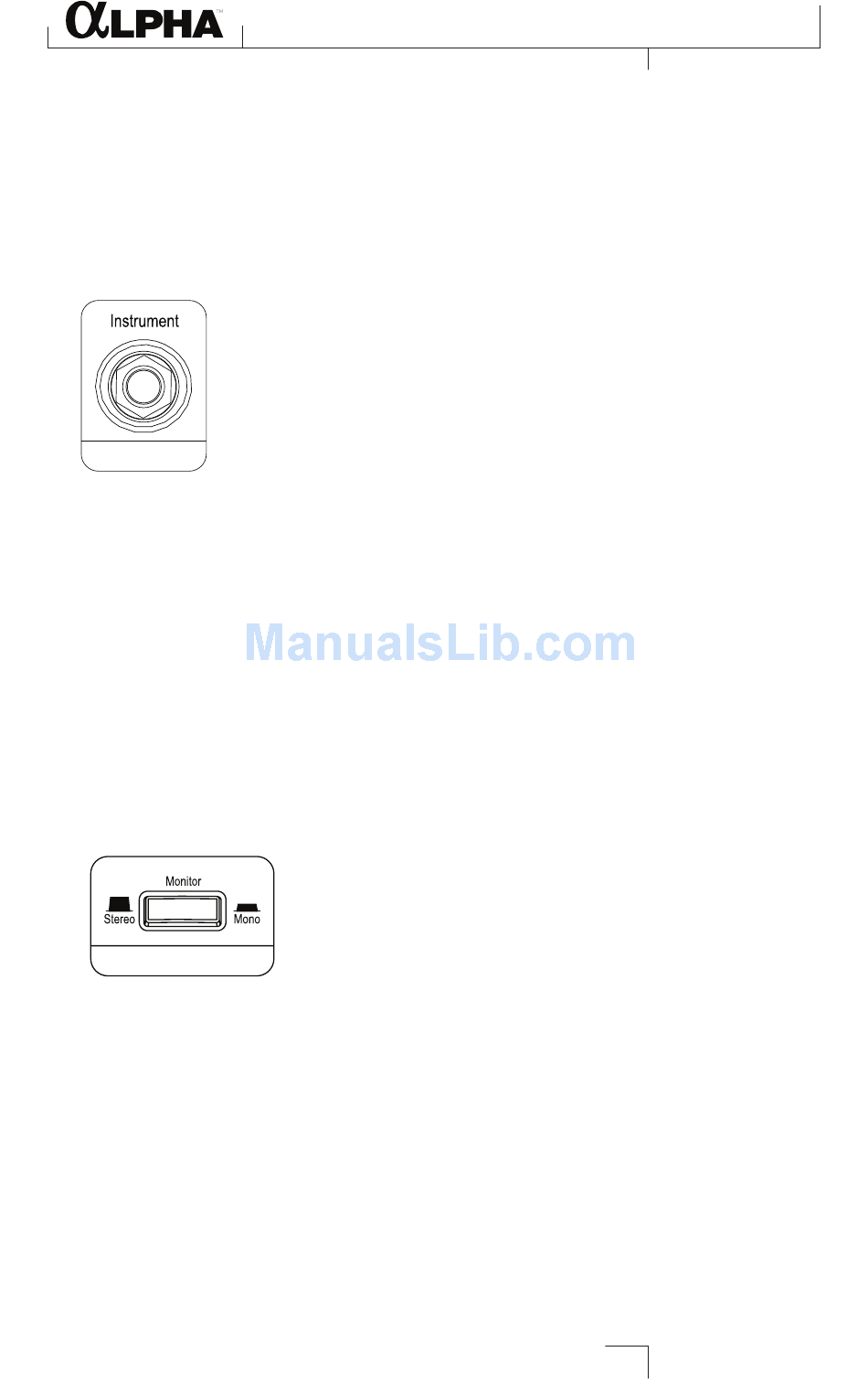

B. RECORDING A GUITAR USING THE INSTRUMENT INPUT
This section explains how to record using the ¼" Instrument input jack on the front
panel.
1. Plug your electric, acoustic, or bass guitar into the Instrument input jack on the
front of the Alpha Studio™ hardware.
Instrument Jack
The Instrument input uses the same recording channel as the Line 1 input;
anything plugged into the ¼" Line 1 input jack on the back of the Alpha Studio
will not be recorded when a cable is connected to the ¼" Instrument input jack
on the front panel.
NOTE: This jack is intended for electric guitar and bass, or acoustic instrument
pickups, not line-level signals such as the output of keyboards or a direct out from a
guitar amplifier. For those, use the Line 1-2 input jacks on the back of the Alpha
Studio hardware.
2. Press the Monitor Assign button between Line 2/Mic and Monitor Mix
knobs so that it is in the Mono position.
Monitor Button
LE 4, go to File and select New Project>Default, and a project
3. Open Cubase ®
location. (See Section I for more information.)
4. Click the Project menu and select Add Track > Audio. When the Add Audio Track
dialog appears, make sure the Configuration option is set to Mono and click OK.
To set the input of the track to record from the 1-2 USB channels:
1. Click anywhere in the gray area (not on the buttons) of the Audio 01 window.
2. In the Inspector, click on the Left - Stereo In box and select Stereo In > Left
for the track input source. (Stereo In - Left relates to Line 1/Inst, Stereo In -
Right relates to Line 2/Mic inputs.)
Recording Using the Microphone/Line Input
25
