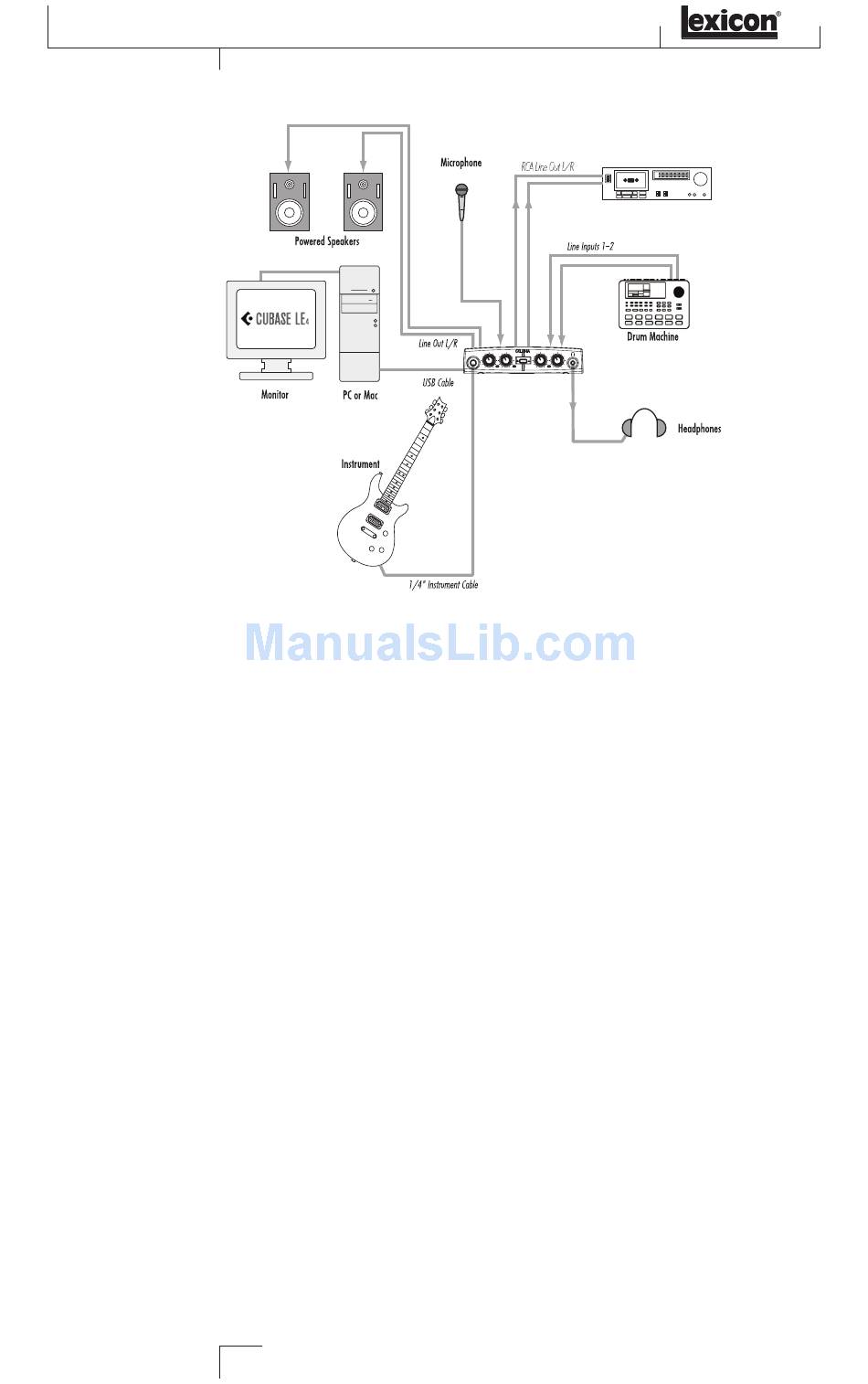

Connections Diagram

CONNECTIONS dIAgRAM
Mixdown Deck
¼"
Chan 1/Inst Chan 2/Mic Monitor Mix Output Level
Instrument
Monitor
Stereo Mono
Peak Peak USB
WINdOWS SOFTWARE SETUP
®
You should consult the included Software Installation Guide to ensure the successful
installation of the recording software and USB drivers.
If you haven't already installed the Cubase ® LE 4 and Lexicon ® Pantheon™ plug-in
software, please do so before continuing on to the next section. Follow the on-screen
instructions to install the USB drivers.

WINDOWS vISTA AND xP

You must install the USBdrivers after you've made the connection between your
computer's USB port and the USB port of the Alpha Studio™.
16
