Using the Lexicon
®
USINg ThE lExICON
STUdIO™
SECTION I – RECORDING AUDIO WITH THE ALPHA STUDIO

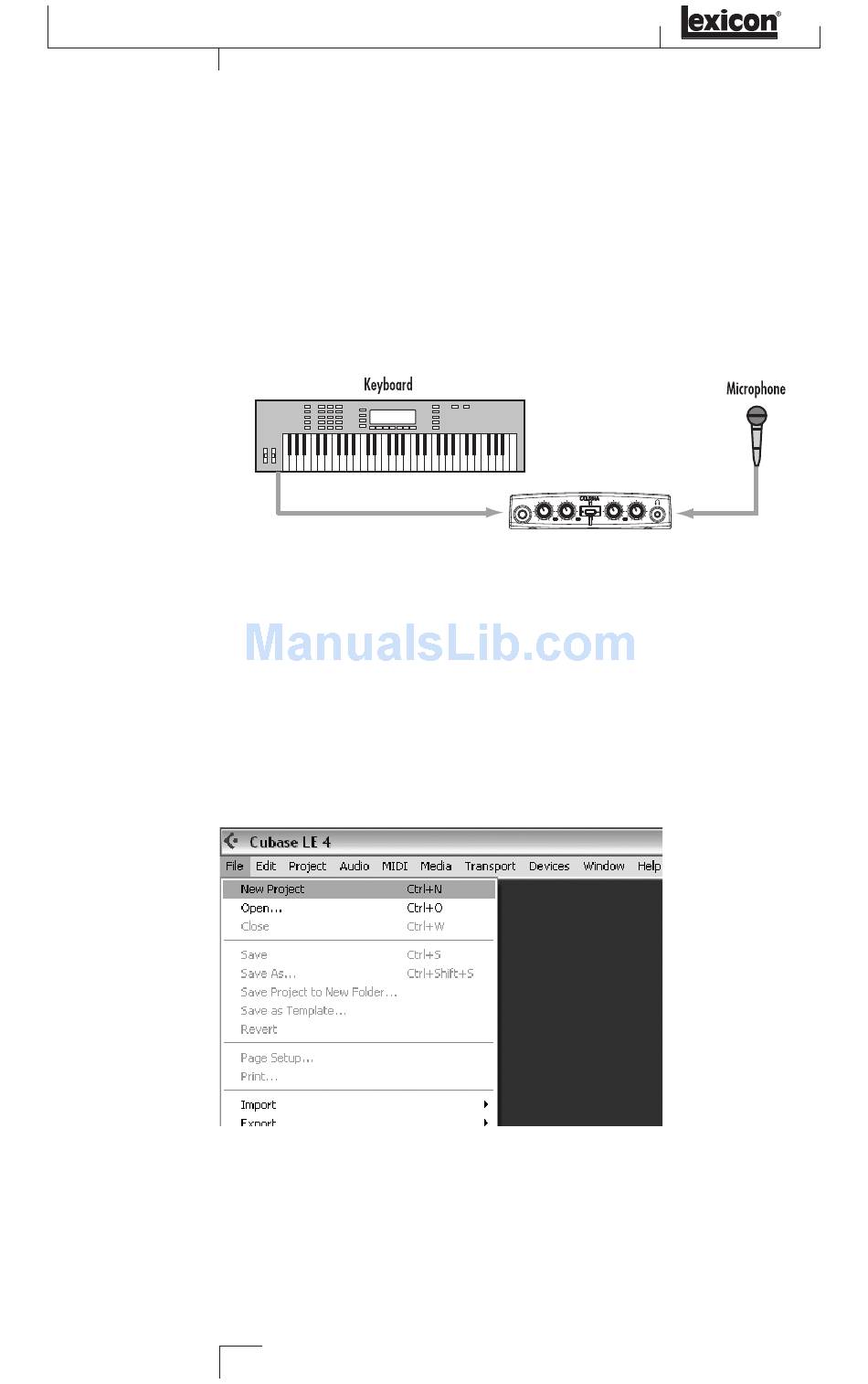

The diagram below shows how the Alpha Studio™ is connected for this particular
setup.
A. RECORDING USING THE MICROPHONE/LINE INPUT
Plug your microphone cable into the Mic Input XLR jack or line level audio source to
the Line 1 ¼" jack on the back of the Alpha Studio.
To set up the software to record:
1. Open Cubase
2. Click File and select New Project.
Alpha Studio™
Line In 1
LE 4.
®
18
AlPhA
®
Chan 1/Inst Chan 2/Mic Monitor Mix Output Level
Instrument
Monitor
Stereo Mono
Peak Peak USB
™
Mic Input
