Summary of Contents for Murphy HelmView HV450

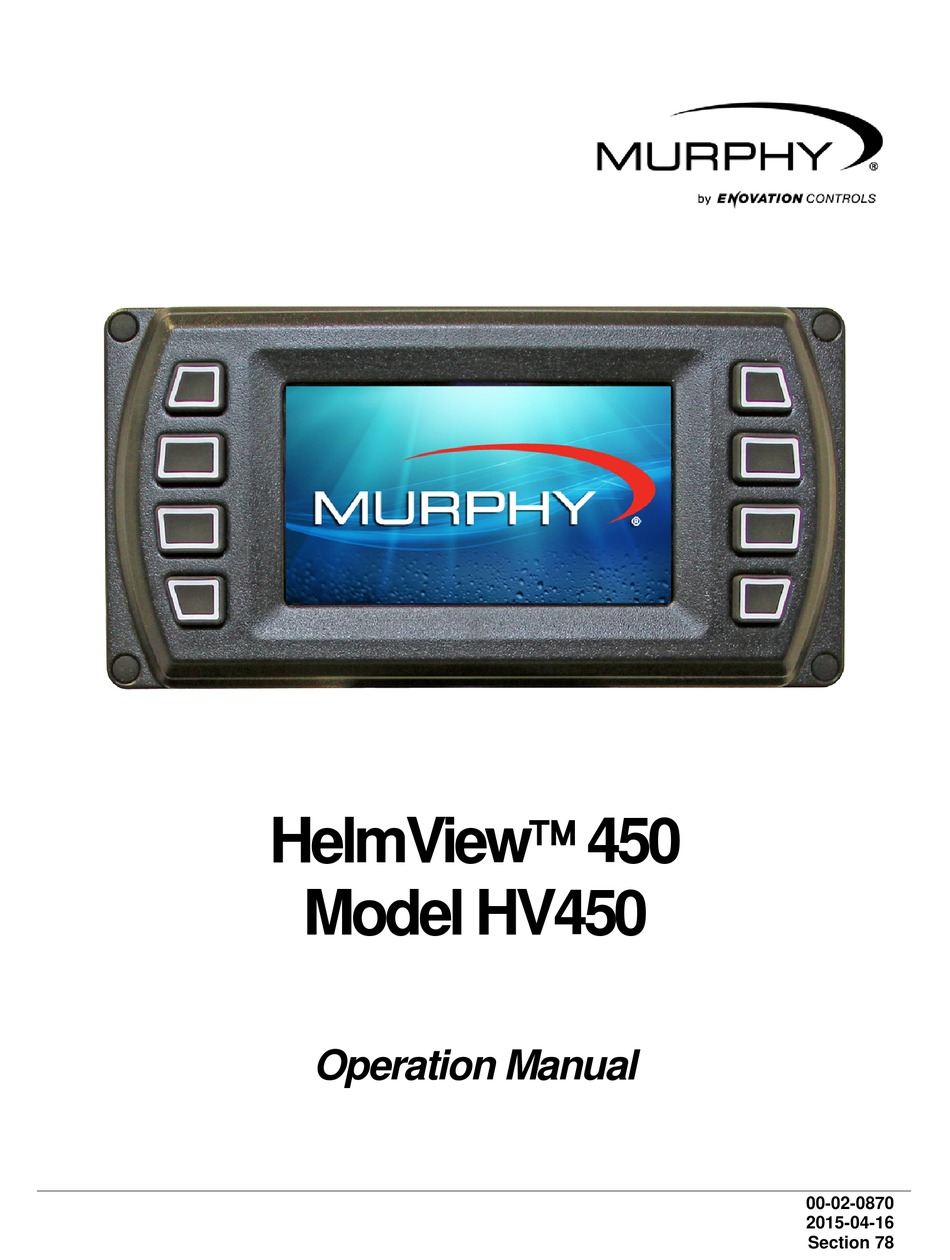

- Page 1 HelmView 450 Model HV450 Operation Manual 00-02-0870 2015-04-16 Section 78...
- Page 2 In order to consistently bring you the highest quality, full-featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at www.fwmurphy.com. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: •...
-
Page 3: Table Of Contents
Table of Contents Product Information ........................4 Forum Access ........................4 HV450 Features and Operations ....................5 Setting Up your HV450 Display for the First Time ..............6 Product Features ........................8 Power Up ..........................8 Main Menu ..........................8 Gauge Display ........................ -
Page 4: Product Information
(left and right, respectively) information. Optional upgrades (software and firmware) are available to expand the usability. For more information, review the following summary about the Enovation Controls Murphy Forum. Forum Access Enovation Controls has created a forum for PowerVision Configuration Studio ® supported products. -
Page 5: Hv450 Features And Operations
HV450 Features and Operations LCD Screen Display A color screen displays gauges, soft key commands and fault messages, as well as menu options for setup and configuration. Soft Key Commands Columns of vertical commands may be located to the left and/or right of the display. They will change according to the options available for the screen being displayed. -
Page 6: Setting Up Your Hv450 Display For The First Time
Setting Up your HV450 Display for the First Time The guidelines presented below are intended for setting up the HV450 display for the first time. Once the configuration is set up, there is no need to revisit or change any of the settings. NOTE: If you require assistance during the set-up process, contact Enovation Controls customer support at +1(918) 317-4100. - Page 7 4. With the cursor highlighting the J1939 source addresses, use the left side soft keys to scroll through the ports and the right side soft keys to change the address. Press the Save key to save selected changes or the Restore Defaults key to return to the default settings.
-
Page 8: Product Features
Product Features Power Up There are two options to connecting the HV450 display: • The battery and ignition inputs to display are both connected to the battery • The battery input is connected to the battery, and the ignition input is connected to the ignition switch. -
Page 9: Gauge Display
Gauge Display The Gauge Display screen consists of several predefined layouts that contain combinations of analog gauges, straight bar gauges or digital (text) readouts. These screens are displayed upon startup. To scroll through the various gauge screens, press the Prev and Next soft keys. This can be repeated until all screens have been viewed. - Page 10 NOTE: .This feature can also be changed in the User Settings section of this manual. Day/Night - Allows you to toggle the display screen between Day View and Night View. NOTE: This feature can also be changed in the User Settings section of this manual.
-
Page 11: Engine Diagnostics
Engine Diagnostics After choosing Engine Diagnostics from the Menu, the display will query the engine(s) ECU and provide feedback on any diagnostic codes that have been activated and stored in the ECU for service needs. The Engine Diagnostics option displays faults based on engine or auxiliary source. The following is a list of field definitions contained on the Engine Diagnostics screen: •... -
Page 12: Fault Code Pop-Ups
Fault Code Pop-Ups A fault condition will trigger a pop-up dialog box on the screen describing the nature of the fault. Corresponding red or amber fault lights on the corners of the unit are also activated to indicate the severity of the fault. The following screens are examples of warning and shut- down fault code pop-ups. -
Page 13: User Settings
User Settings User Settings provides options to specify viewing preferences for the HV450 Display. Pressing yellow Up and Down arrows navigates through the options. To change an option, press the corresponding soft key button next to the desired soft key command. Ambient Light Night and Day options are provided for ambient lighting. - Page 14 Brightness You can set the brightness control by using the soft keys to change the settings in +5% increments until the desired brightness is achieved. NOTE: Brightness levels will change with ambient light setting. Two brightness levels are saved - one for day and one for night. Units Select how units are displayed by using the soft keys to select from the following: •...
-
Page 15: Video Mode
Language This option allows you to select the language that will be displayed on the HV450. This unit supports English. Available languages include: Russian, Czech, Japanese, Brazilian Portuguese, French, Spanish, German, Italian and Chinese. Video Mode This option provides the choice between NTSC and PAL. The unit will reboot upon this setting change. -
Page 16: Video Input
Video Input This option toggles between two video inputs. Screen Setup The Screen Setup option provides a list of screens that can be shown when accessing the Gauge Display screens. Press the Up and Down arrow keys on the right to scroll through the screens. Press the Home soft key to select the screen as home. -
Page 17: Home Screen
The Screen Setup option also provides the user the ability to turn the screens ON or OFF by pressing the Enable/Disable soft key. If a screen is turned OFF, it will not show up when Gauge Display is activated. Home Screen The Home Screen will be the first screen shown when Gauge Display is selected from the User Setting menu. -
Page 18: Utilities
Restore Defaults Restore Defaults sets the display to the original factory settings. During troubleshooting, this can be used as a last resort to completely reset the display to a known state. To restore the default user settings, press Restore Defaults. The following confirmation screen is displayed. - Page 19 • Service Engine – Default interval 125.0 Hrs. • Service Machine – Default interval 150.0 Hrs. NOTE: The HV450 is Tier 4 compliant. If there are any questions on the Murphy Standard Configuration, please contact Murphy technical services at: (918) 317-1113. Section 78...
-
Page 20: Date And Time
Date and Time This option allows you to adjust the year, month, day, hour, minute, second, time zone and daylight saving time. Year Month Hour Minute Second Section 78 00-02-0870 2015-04-16 - 20 -... - Page 21 Time Zone Offset Daylight Saving Time Data Logger This option allows you to record data that can be captured on a flash drive. Icon Description Starts the recording. Stops the recording. Clears the log. Saves the log. Section 78 00-02-0870 2015-04-16 - 21 -...
- Page 22 Trip Parameters This option allows you to choose whether to use J1939 trip fuel source or Calculators trip fuel source. Reset – resets the calculated trip fuel parameter. Section 78 00-02-0870 2015-04-16 - 22 -...
- Page 23 THIS PAGE INTENTIONALLY LEFT BLANK Section 78 00-02-0870 2015-04-16 - 23 -...
