INVENTOR V2MD I-12 Owner's Manual page 2

INDOOR UNIT
1
5
M
INDOOR UNIT
1
Air outlet
2
Air inlet
3
Air filter(on some models)
4
Electric control cabinet
5
Wire controller(on some models)
6
Drain pipe
All the pictures in this manual are for explanation purpose only. They may be slightly different from the air conditioner
you purchased(depend on model).The actual shape shall prevail.
2
4
3
6
9 9
7
10 10 10
NOTE
OUTDOOR UNIT
(C)
(A)
8 8
OUTDOOR UNIT(A,B,C)
7
Connecting pipe
8
Air inlet
9
Air inlet(side and rear)
10
Air outlet
(B)

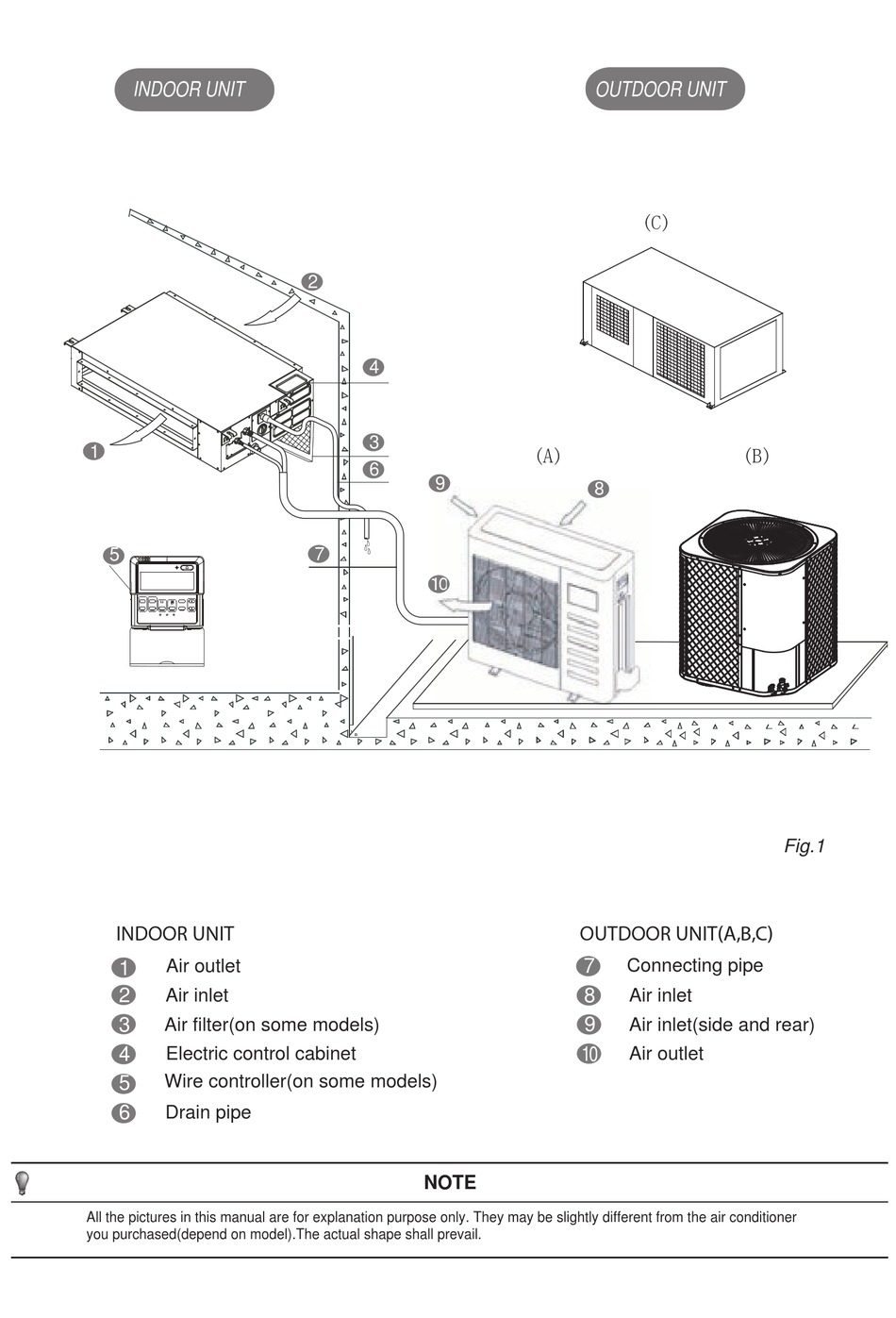

Fig.1
